Description

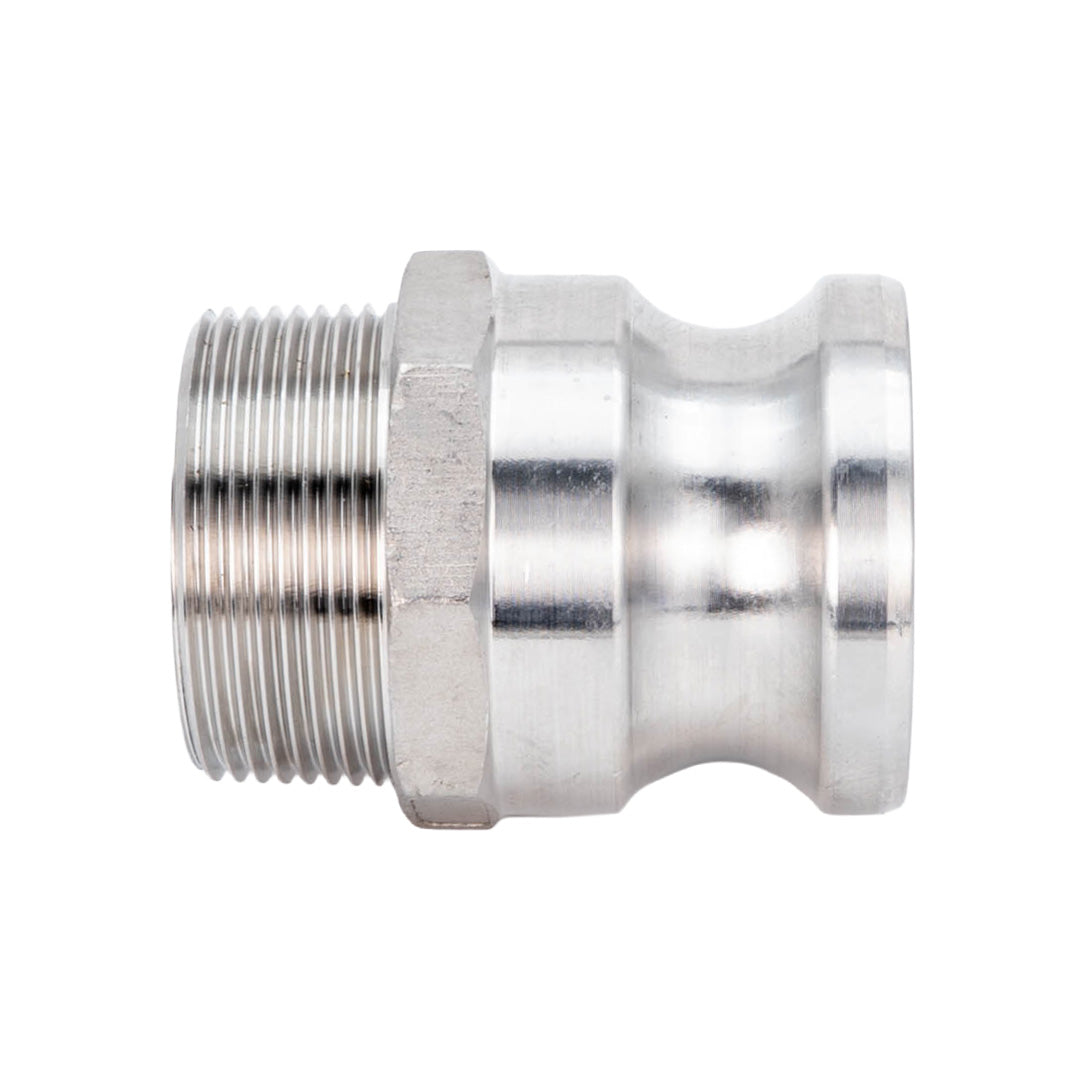

Stainless Steel Camlock Male BSP x Plug (Type F)
Data Sheet ↗The Stainless Steel Camlock Type F Adaptor features a male BSP threaded connection and a male camlock plug, providing a secure and reliable connection between threaded pipework and compatible female camlock couplings.
Manufactured from high-quality 316 stainless steel, this camlock fitting offers excellent corrosion resistance, strength and durability. Designed for demanding industrial, agricultural and commercial applications, it provides an efficient solution for water transfer, pumping and fluid handling systems.
The Type F camlock adaptor features a male cam and groove connection that allows quick connection and disconnection from compatible female camlock couplings without tools. The male BSP thread enables installation into compatible female threaded pipework, valves, pumps and equipment.
Key Features
- Manufactured from corrosion-resistant 316 stainless steel
- Type F camlock adaptor – male BSP thread x male camlock plug
- 10 bar maximum working pressure
- Quick-release cam and groove connection
- Compatible with female camlock couplings of the same nominal size
- Male BSP threaded connection for pipework and equipment
- Suitable for industrial, agricultural and commercial applications
- Durable and reusable construction
- Ideal for pumps, tanks, valves and fluid transfer systems
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Camlock Type F Adaptor |
| Material | 316 Stainless Steel |
| Thread Connection | Male BSP |
| Camlock Connection | Male Camlock Plug |
| Working Pressure | 10 Bar (145 PSI) |
| Connection Method | Cam and Groove Quick Release |
| Compatible Connection | Female Camlock Coupler |
| Application | Industrial and Agricultural Fluid Transfer |
Typical Applications
Stainless Steel Type F Camlock Adaptors are commonly used for:
- Industrial fluid transfer and processing systems
- Agricultural irrigation and pumping installations
- Water treatment and filtration equipment
- Chemical transfer applications, subject to material and seal compatibility
- Tank connections and pipework assemblies
- Pump and valve connections
- Temporary and permanent fluid handling installations
Installation Information
The male BSP threaded connection is designed for installation into compatible female BSP threaded fittings. Use an appropriate thread sealing method suitable for the thread form, operating pressure and application.
To connect the camlock adaptor, insert the male camlock plug into a compatible female camlock coupling of the same nominal size. Close both cam arms on the female coupling evenly to secure the connection.
Ensure the coupling gasket is correctly positioned and in good condition before pressurising the system.
Type F camlock adaptors are designed to connect with compatible female camlock couplings of the same nominal size. Ensure the coupling gasket, threaded connection and all associated components are suitable for the operating pressure, temperature and fluid being transferred.
The maximum working pressure of the complete assembly is determined by its lowest-rated component. Always depressurise the system before connecting or disconnecting camlock fittings.
