Description

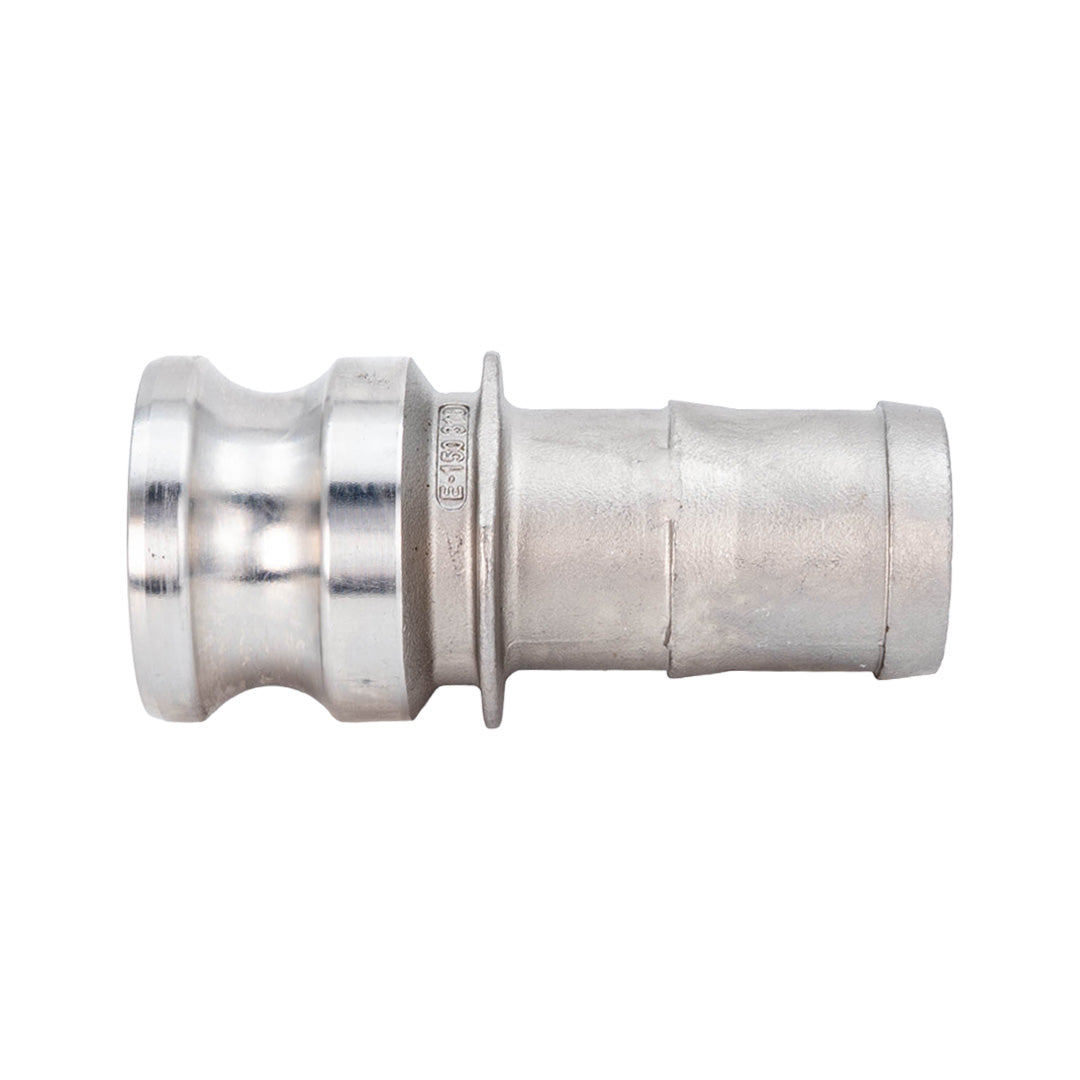

Stainless Steel Camlock Hose Tail x Plug (E)
Data Sheet ↗The Stainless Steel Camlock Type E Adaptor features a male camlock plug with an integrated hose tail, providing a secure and reliable connection between flexible hose and compatible female camlock couplings.
Manufactured from high-quality 316 stainless steel, this camlock fitting offers excellent corrosion resistance, strength and durability. Designed for demanding industrial, agricultural and commercial applications, it provides an efficient solution for water transfer, pumping and fluid handling systems.
The Type E camlock adaptor features a male cam and groove connection that allows quick connection and disconnection from compatible female camlock couplings without tools. The integrated hose tail enables secure attachment to flexible hose using appropriately sized hose clamps.
Key Features
- Manufactured from corrosion-resistant 316 stainless steel
- Type E camlock adaptor – male camlock plug x hose tail
- 10 bar maximum working pressure
- Quick-release cam and groove connection
- Compatible with female camlock couplings of the same nominal size
- Integrated hose tail for connection to flexible hose
- Suitable for industrial, agricultural and commercial applications
- Durable and reusable construction
- Ideal for pumping, water transfer and fluid handling systems
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Camlock Type E Adaptor |
| Material | 316 Stainless Steel |
| Hose Connection | Hose Tail / Hose Barb |
| Camlock Connection | Male Camlock Plug |
| Working Pressure | 10 Bar (145 PSI) |
| Connection Method | Cam and Groove Quick Release |
| Compatible Connection | Female Camlock Coupler |
| Hose Fixing | Suitable Hose Clamps |
Typical Applications
Stainless Steel Type E Camlock Adaptors are commonly used for:
- Industrial hose and fluid transfer systems
- Agricultural irrigation and pumping installations
- Water transfer and drainage applications
- Chemical transfer, subject to material and seal compatibility
- Tank filling and emptying operations
- Flexible hose connections to pumps and pipework
- Food and beverage processing where material suitability has been confirmed
Installation Information
Insert the hose tail fully into a compatible flexible hose and secure using appropriately sized hose clamps. Ensure the hose and clamps are suitable for the operating pressure and application.
To connect the camlock adaptor, insert the male camlock plug into a compatible female camlock coupling of the same nominal size. Close both cam arms on the female coupling evenly to secure the connection.
Type E camlock adaptors are designed to connect with compatible female camlock couplings of the same nominal size. Ensure the coupling gasket, hose and hose clamps are suitable for the operating pressure, temperature and fluid being transferred.
The maximum working pressure of the complete assembly is determined by its lowest-rated component. Always depressurise the system before connecting or disconnecting camlock fittings.
