Description

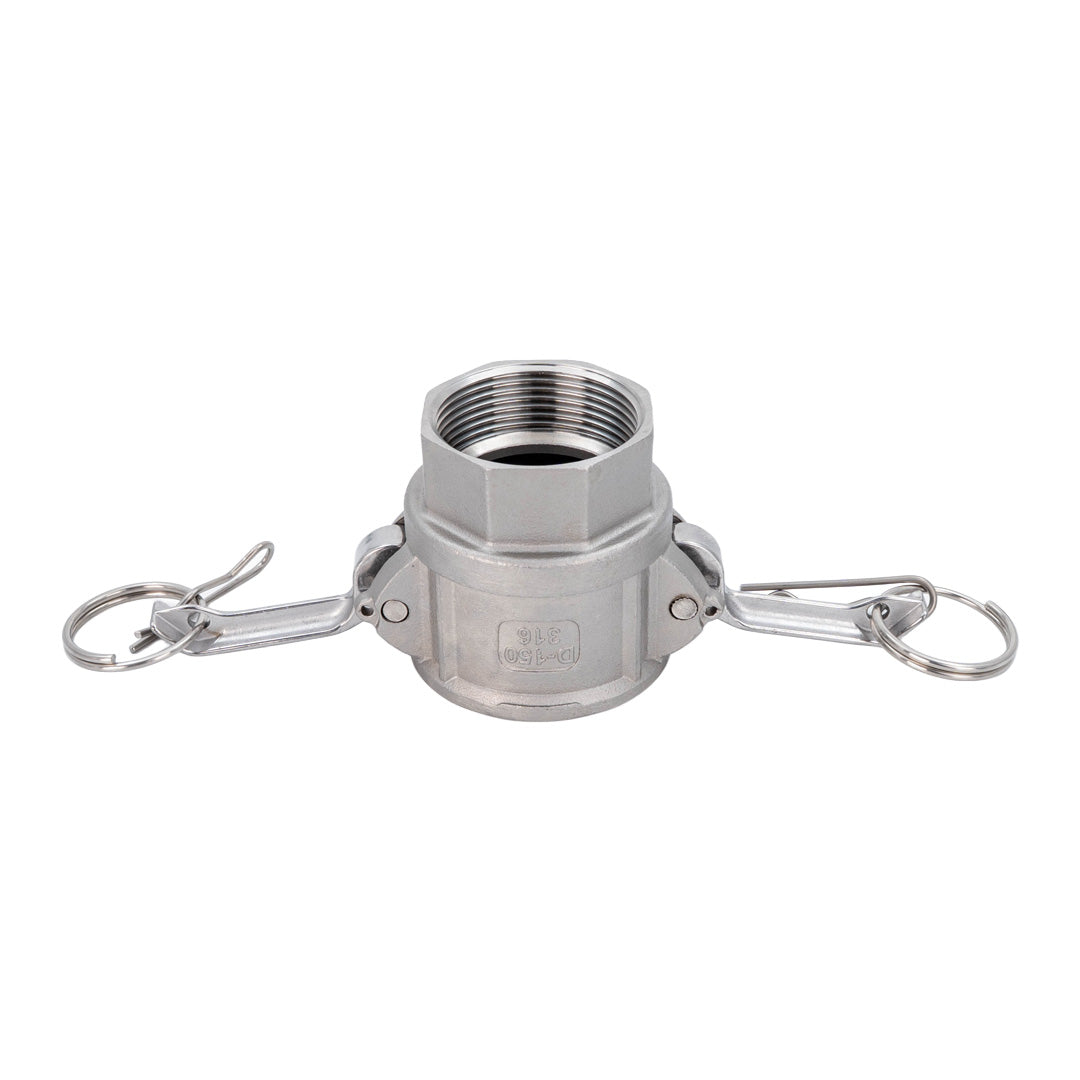

Stainless Steel Camlock Female BSP x Coupler (D)
Data Sheet ↗The Stainless Steel Camlock Type D Coupler features a female BSPP threaded connection and a female camlock coupling, providing a secure, quick-release connection between threaded pipework and compatible male camlock adaptors.
Manufactured from high-quality 316 stainless steel, this camlock fitting offers excellent corrosion resistance, strength and durability. Designed for demanding industrial, agricultural and commercial applications, it provides a reliable solution for water transfer, pumping and fluid handling systems.
The Type D coupling incorporates two cam arms, allowing quick connection and disconnection without tools. The female BSPP thread enables installation onto compatible male threaded pipework, valves, pumps and equipment.
Key Features
- Manufactured from corrosion-resistant 316 stainless steel
- Type D camlock coupling – female BSPP thread x female camlock coupler
- 10 bar maximum working pressure
- Quick-release cam and groove connection
- Twin cam arms for secure connection to compatible male adaptors
- Female BSPP threaded connection for pipework and equipment
- Suitable for industrial, agricultural and commercial applications
- Durable and reusable construction
- Ideal for pumps, tanks, valves and fluid transfer systems
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Camlock Type D Coupler |
| Material | 316 Stainless Steel |
| Thread Connection | Female BSPP (Parallel) |
| Camlock Connection | Female Camlock Coupler |
| Working Pressure | 10 Bar (145 PSI) |
| Connection Method | Cam and Groove Quick Release |
| Cam Arms | Twin Lever Operation |
| Compatible Connection | Male Camlock Adaptor of Matching Size |
Typical Applications
Stainless Steel Type D Camlock Couplings are commonly used for:
- Industrial fluid transfer and processing systems
- Agricultural irrigation and pumping installations
- Water treatment and filtration equipment
- Chemical transfer applications, subject to material and seal compatibility
- Tank connections and pipework assemblies
- Pump and valve connections
- Temporary and permanent fluid handling installations
Installation Information
The female BSPP threaded connection is designed for installation onto compatible male BSP threaded fittings. Use an appropriate sealing arrangement suitable for the thread type, operating pressure and application.
To connect the camlock coupling, insert a compatible male camlock adaptor into the female coupler and close both cam arms evenly to secure the connection. Ensure the coupling gasket is correctly positioned and in good condition before use.
Type D camlock couplings are designed to connect with compatible male camlock adaptors of the same nominal size. Ensure the coupling gasket, threaded connection and all associated components are suitable for the operating pressure, temperature and fluid being transferred.
Always depressurise the system before connecting or disconnecting camlock fittings. Camlock couplings should not be disconnected while under pressure.
