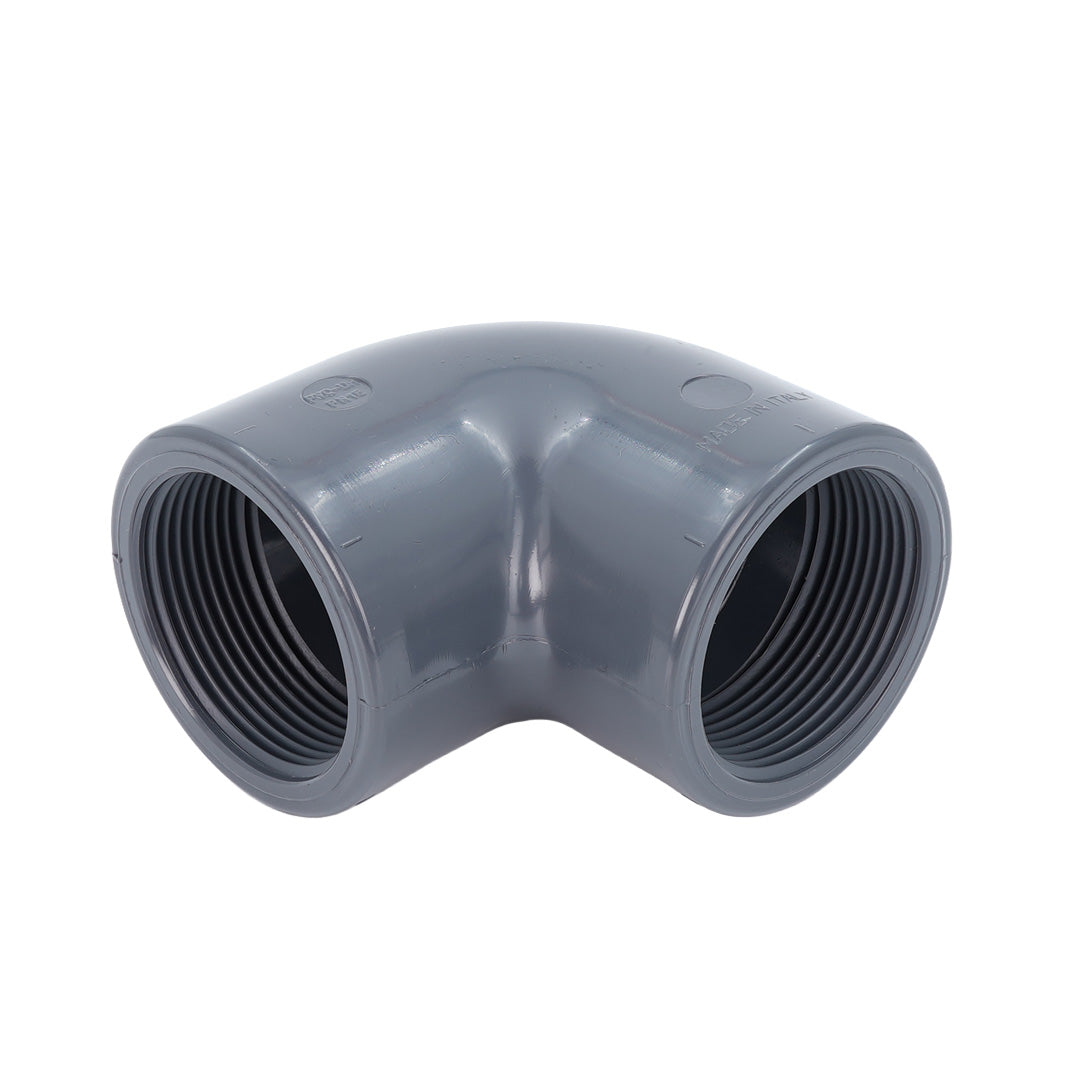

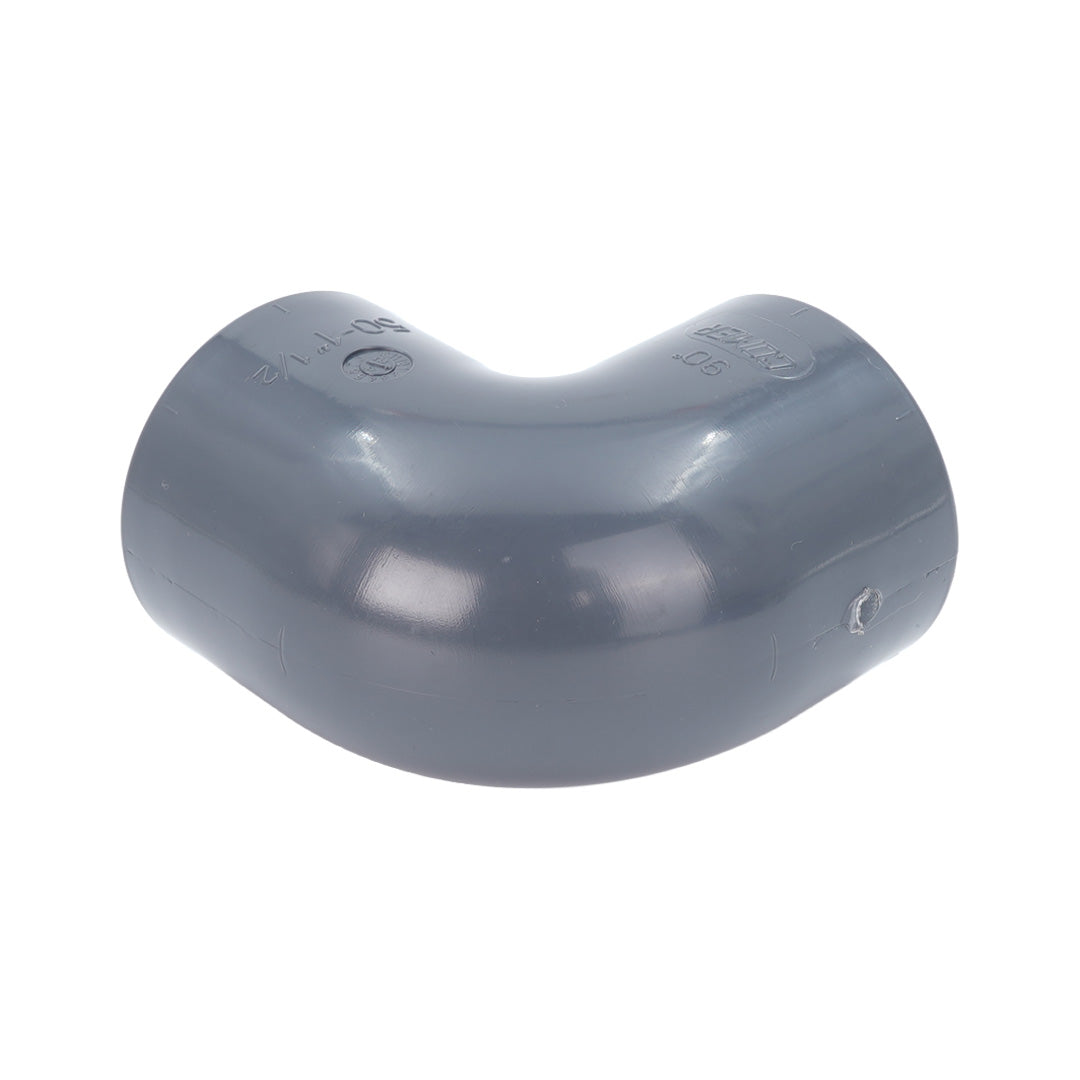

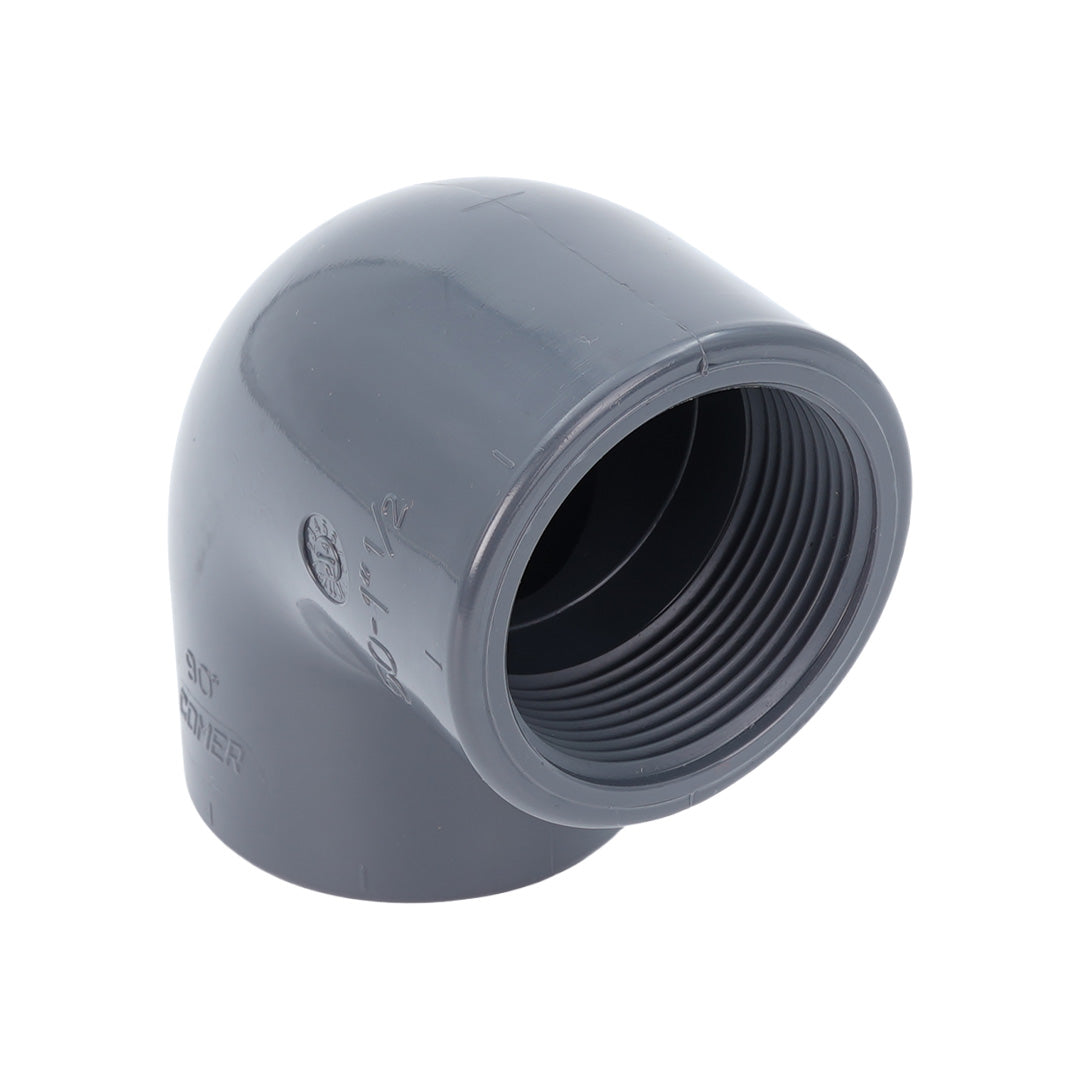

PVC Threaded Elbow 90° – Female BSP PVC-U Fitting
Our PVC Threaded 90° Elbows are manufactured from high-quality PVC-U (Unplasticised Polyvinyl Chloride) and feature female BSP threaded connections at both ends. Designed to change the direction of pipework by 90 degrees, these threaded PVC elbows provide a durable and corrosion-resistant connection for pressure pipework systems.
PVC-U threaded elbows offer excellent resistance to corrosion, lightweight construction and compatibility with water and suitable chemical applications. They are commonly used in agricultural irrigation, swimming pools, water treatment, pumping systems and industrial pipework installations.
Features & Benefits
- Material: PVC-U (Unplasticised Polyvinyl Chloride).
- Connection: Female BSP x Female BSP.
- Angle: 90°.
- Pressure Rating: 12 Bar (170 PSI) at 20°C.
- Thread Standards: BS21, DIN2999 and ISO7.
- Corrosion Resistant: Suitable for water and compatible chemical applications.
- Lightweight Construction: Easy to handle and install.
- Compact Design: Ideal for changing pipework direction where space is limited.
- Low Maintenance: Durable PVC-U construction.
Technical Specifications
| Specification | Details |
|---|---|
| Product | PVC Threaded Elbow 90° |
| Material | PVC-U |
| Connection Type | Female BSP x Female BSP |
| Angle | 90° |
| Pressure Rating | 12 Bar (170 PSI) at 20°C |
| Maximum Temperature | 60°C |
| Thread Standards | BS21, DIN2999, ISO7 |
| Applications | Water, Irrigation & Industrial Pipework |
BSP Thread Size Guide
PVC threaded elbows are sized according to their nominal BSP thread dimensions. BSP thread sizes do not directly correspond to the physical diameter measured in inches.
For example, a 1" BSP male thread measures approximately 33.25mm across its outside diameter, rather than 25.4mm.
| BSP Thread Size | Male Thread Outside Diameter (mm) |
|---|---|
| 1/2" | 20.96mm |
| 3/4" | 26.44mm |
| 1" | 33.25mm |
| 1 1/4" | 41.91mm |
| 1 1/2" | 47.80mm |
| 2" | 59.61mm |
| 2 1/2" | 75.18mm |
| 3" | 87.88mm |
| 4" | 113.03mm |
Important: The measurements above represent the approximate outside diameters of corresponding male BSP threads. Female threaded elbows are designed to accept the matching nominal BSP male thread sizes. These measurements do not represent the internal diameter of the elbow.
Pressure & Temperature Information
PVC-U threaded fittings have a maximum working pressure of 12 Bar (170 PSI) at 20°C. As operating temperatures increase, the allowable working pressure decreases.
PVC-U pressure systems must not be used at temperatures exceeding 60°C. Always refer to the manufacturer's pressure and temperature derating information before installation.
Typical Applications
- Agricultural irrigation and water distribution systems
- Swimming pool filtration and circulation systems
- Industrial water transfer systems
- Water treatment and filtration equipment
- Connecting male BSP threaded pipework at 90°
- Commercial and industrial PVC pressure pipework
Installation Advice
PVC threaded elbows should be installed using compatible male BSP threaded fittings and a suitable sealing method approved for PVC-U applications.
Avoid overtightening, as excessive force can damage or crack plastic threaded fittings. Always ensure the male and female thread forms are compatible before installation.
Buy PVC Threaded 90° Elbows Online at T-mex
At T-mex, we supply a comprehensive range of PVC-U threaded pipe fittings, including 90° elbows, equal sockets, reducing sockets, nipples, reducing bushes, tees and adaptors.
Our PVC threaded elbows provide a durable, corrosion-resistant and economical solution for changing the direction of BSP threaded pipework in irrigation, water distribution and industrial applications.
Order online today for competitive prices and fast UK delivery.
