Description

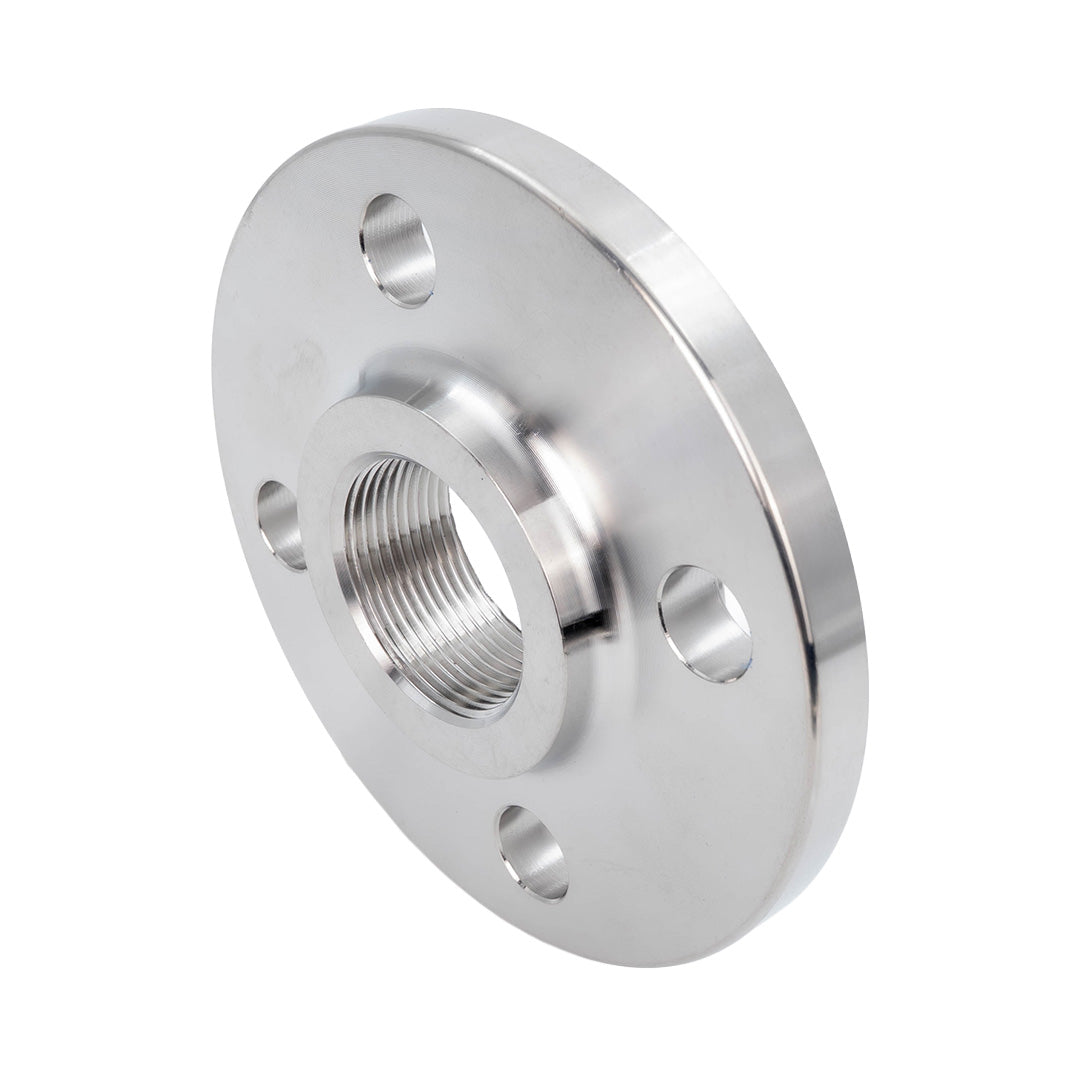

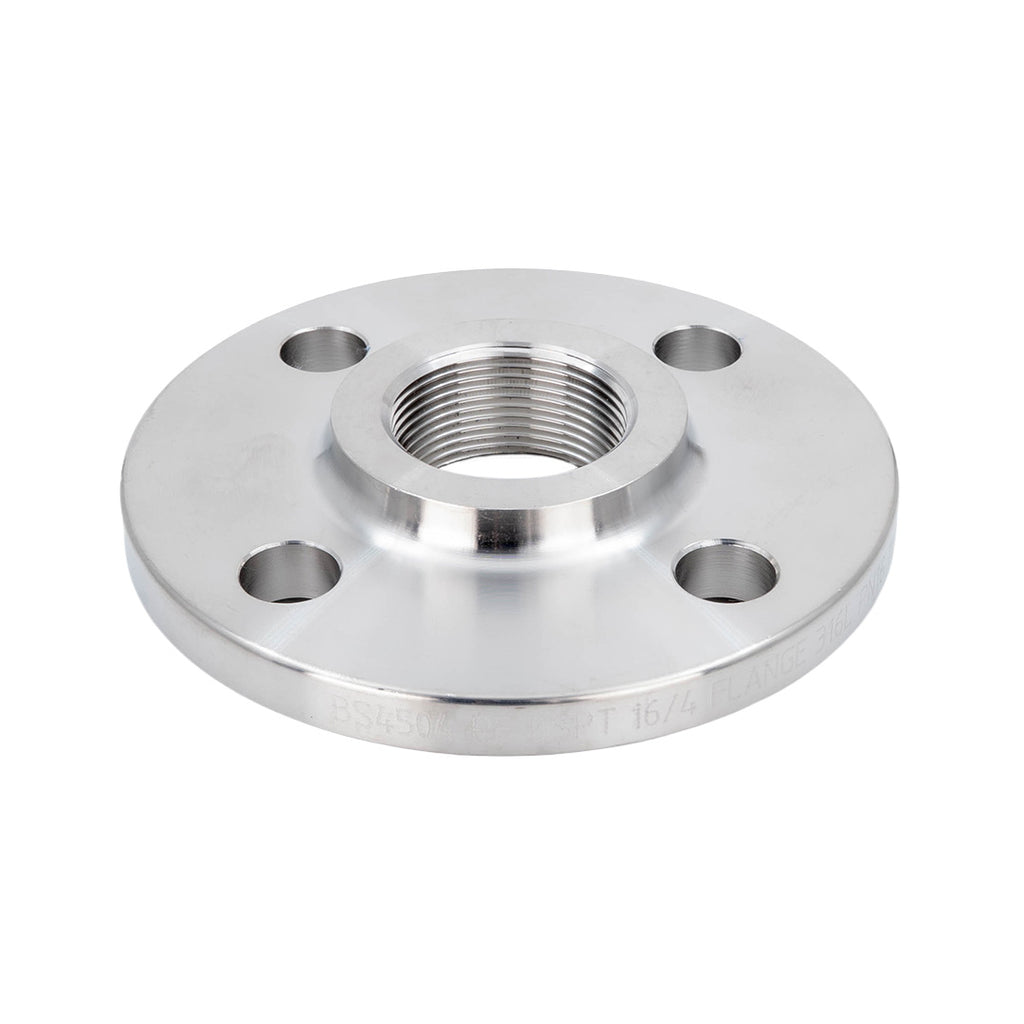

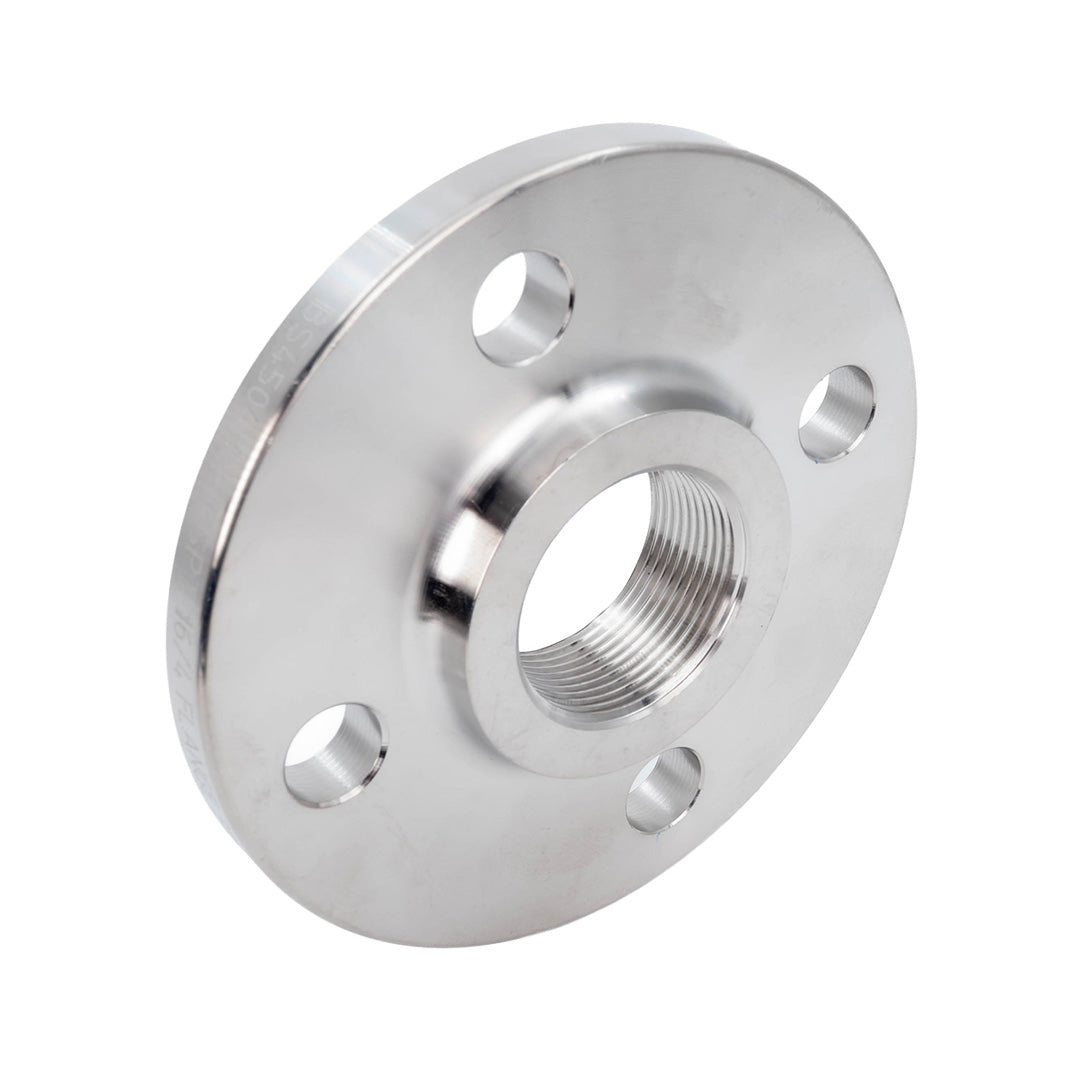

Stainless Steel Threaded Flange PN16
- 316 Stainless Steel
- BSPT Threaded connection
- 150lb Rated
- PN10 / PN16 bolt pattern
- Excellent corrosion resistance
- Suitable for connecting threaded pipework to flanged valves and equipment
Our Stainless Steel Threaded Flange PN16 provides a simple and robust method of converting BSP threaded pipework to a flanged connection. Manufactured from 316 stainless steel, these flanges offer excellent corrosion resistance and are well suited to water, irrigation, pumping and industrial pipework applications.
The BSPT threaded connection allows installation onto compatible threaded pipework and fittings without welding. The flange face is drilled to a PN10 / PN16 pattern, allowing it to be bolted directly to compatible valves, pumps, existing flanges and other flanged equipment.
Manufactured with a 150lb rating, these threaded stainless steel flanges provide a strong, durable connection for a wide range of fluid handling systems.
PN16 Flange Drilling Dimensions
| Flange Size | No. of Holes | PCD |
|---|---|---|
| 3/4" (DN20) | 4 | 75mm |
| 1" (DN25) | 4 | 85mm |
| 1 1/4" (DN32) | 4 | 100mm |
| 1 1/2" (DN40) | 4 | 110mm |
| 2" (DN50) | 4 | 125mm |
| 2 1/2" (DN65) | 4 | 145mm |
| 3" (DN80) | 8 | 160mm |
| 4" (DN100) | 8 | 180mm |
| 5" (DN125) | 8 | 210mm |
| 6" (DN150) | 8 | 240mm |
Note: PCD = Pitch Circle Diameter. Dimensions shown are for standard PN16 flange drilling. Always confirm compatibility with the mating flange or valve before installation.
Typical Applications
- Water and irrigation systems
- Pumps and pumping equipment
- Industrial pipework
- Flanged valves
- Fluid handling systems
- Threaded-to-flanged pipe connections
