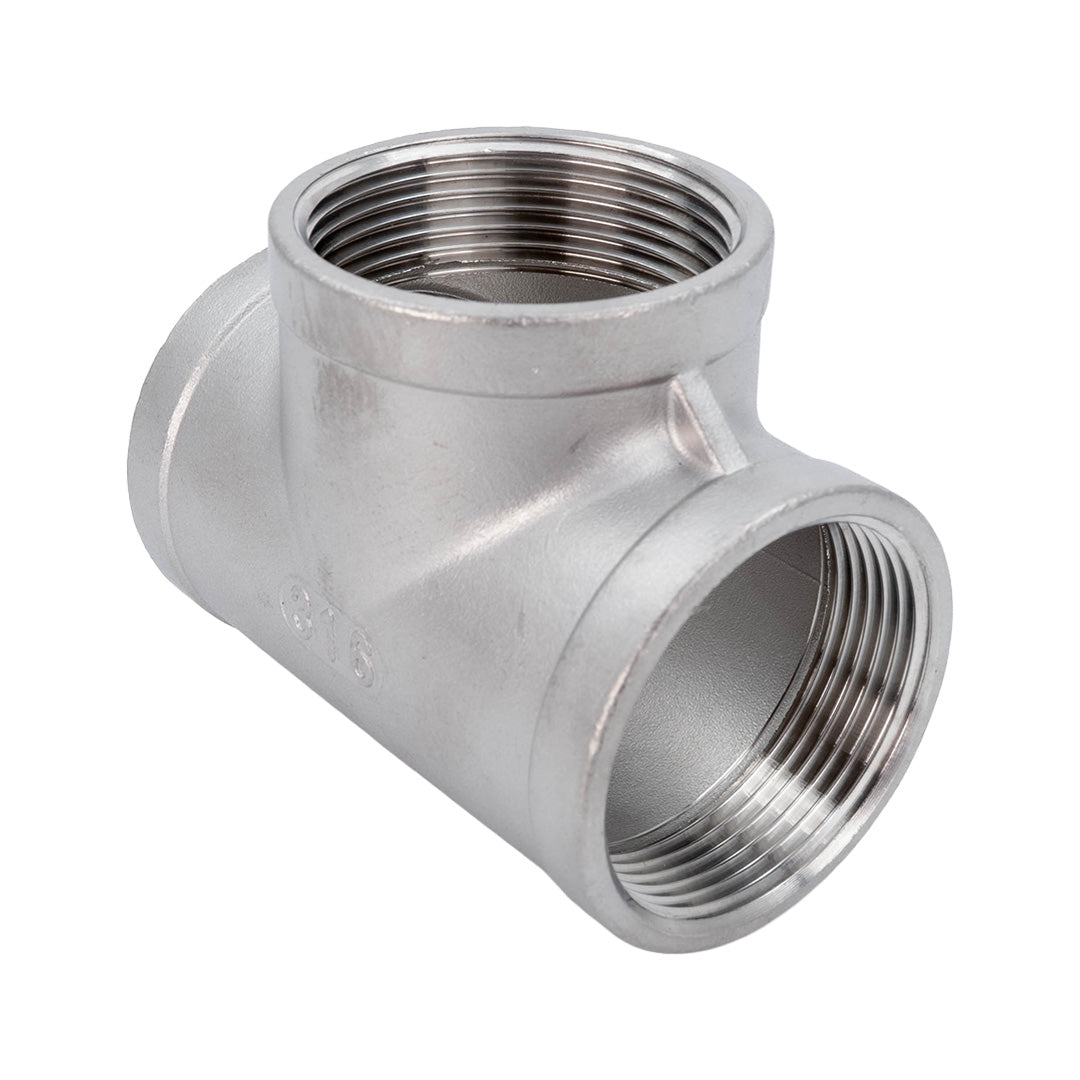

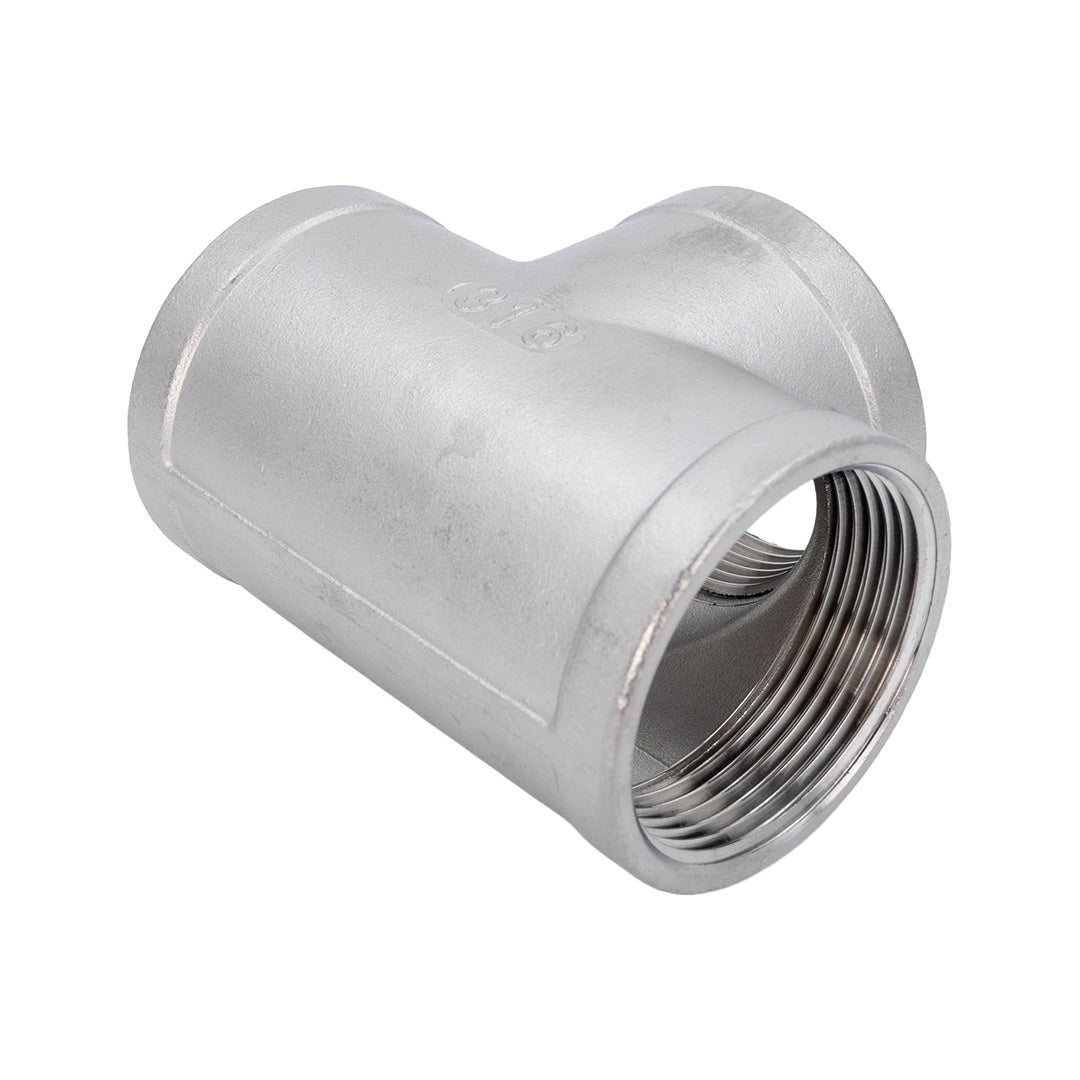

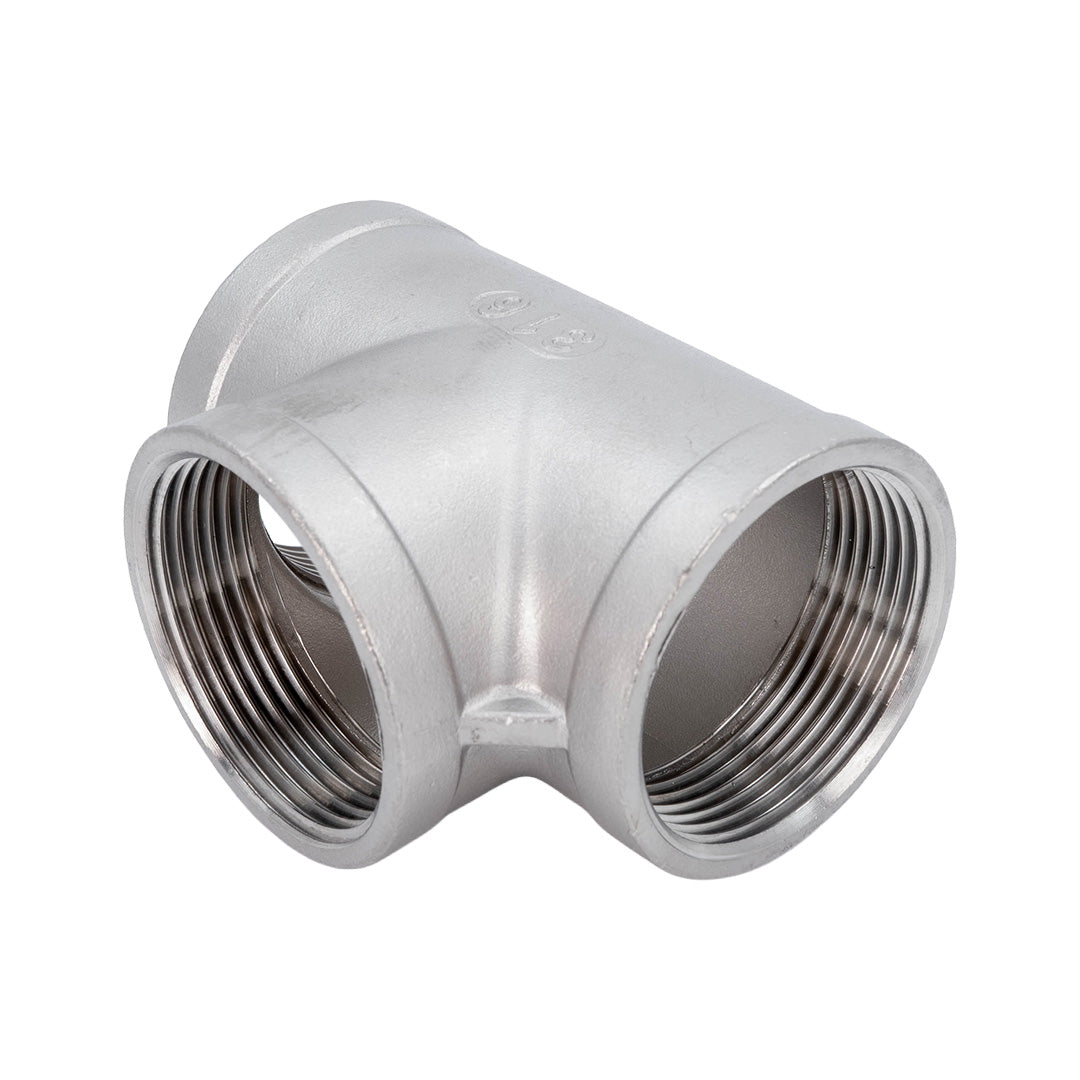

Stainless Steel Equal Tee – 316 Grade
Our 316 Stainless Steel Equal Tees are designed to connect three sections of threaded pipework, providing a reliable 90° branch connection within industrial, agricultural and commercial piping systems.
Manufactured from high-quality 316 grade stainless steel, these fittings offer excellent corrosion resistance, strength and durability, making them suitable for demanding environments where long-term performance is essential.
Featuring three female BSP threaded connections of equal size, these stainless steel tees allow pipework to be divided into two directions or combined into a single line, depending on the installation requirements.
Key Features
- Material: 316 Grade Stainless Steel
- Connection: Female BSP x Female BSP x Female BSP
- Pressure Class: 150 lbs (Class 150)
- Design: Equal Tee with Three Female Threaded Connections
- Branch Angle: 90 Degrees
- Corrosion Resistance: Excellent resistance to corrosion in demanding environments
- Construction: Durable stainless steel fitting for long-term performance
- Installation: Suitable for connecting compatible male BSP threaded fittings
Typical Applications
- Industrial pipework and fluid transfer systems
- Water distribution and pumping installations
- Agricultural and irrigation systems
- Chemical processing applications, subject to compatibility
- Marine and coastal environments
- General engineering and mechanical installations
- Creating branch connections within threaded pipework systems
Technical Specifications
| Specification | Details |
|---|---|
| Product | Stainless Steel Equal Tee |
| Material | 316 Stainless Steel |
| Thread Connection | Female BSP x Female BSP x Female BSP |
| Pressure Class | Class 150 (150 lbs) |
| Branch Angle | 90° |
| Configuration | Equal Female x Female x Female |
| Application | 90° Branch Connections in Threaded Pipework |
BSP Thread Dimension Guide
BSP thread sizes are nominal and do not represent the actual physical diameter of the thread. The table below provides standard BSP thread major diameters in millimetres to assist with identifying the correct fitting size.
| BSP Thread Size | Major Diameter (mm) |
|---|---|
| 1/8" | 9.7 |
| 1/4" | 13.2 |
| 3/8" | 16.7 |
| 1/2" | 21.0 |
| 3/4" | 26.4 |
| 1" | 33.2 |
| 1 1/4" | 41.9 |
| 1 1/2" | 47.8 |
| 2" | 59.6 |
| 2 1/2" | 75.2 |
| 3" | 87.9 |
| 4" | 113.0 |
Important: The dimensions shown are standard BSP thread major diameters and are provided for reference. For female threaded fittings, these values correspond to the nominal major diameter of the matching male thread, not the internal bore measurement of the tee.
Installation Information
Ensure all mating threads are compatible, clean and correctly aligned before installation. Use a suitable thread sealant or PTFE tape where appropriate for the thread type and application.
The 90° branch design allows the creation of a perpendicular connection within a pipework system. Ensure the fitting is correctly supported and avoid excessive mechanical stress on the threaded connections.
Please Note: Class 150 is a fitting pressure classification and does not mean a fixed maximum working pressure of 150 PSI. Actual working pressure depends on the fitting specification, operating temperature and application. Always confirm the manufacturer's pressure rating before installation.
