Description

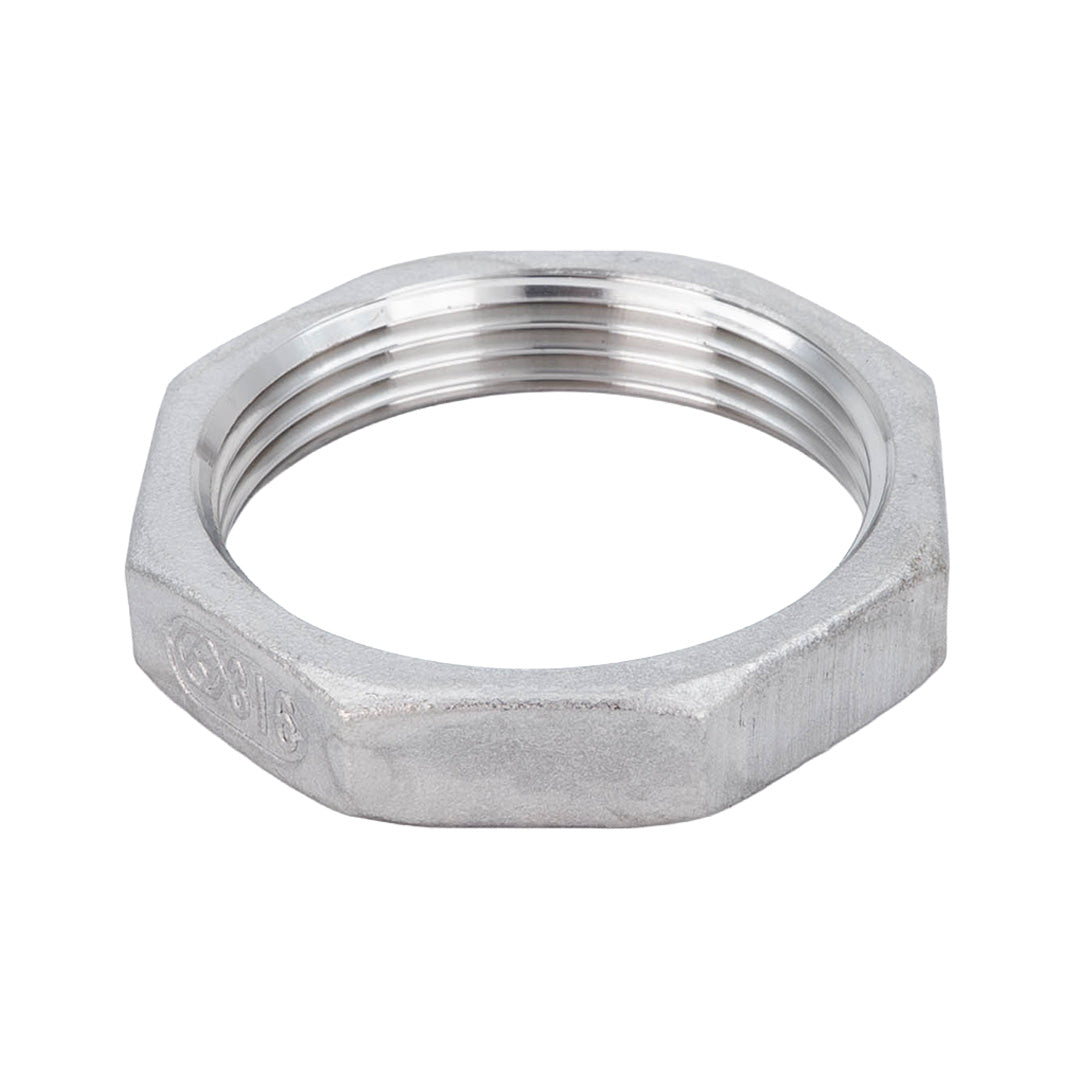

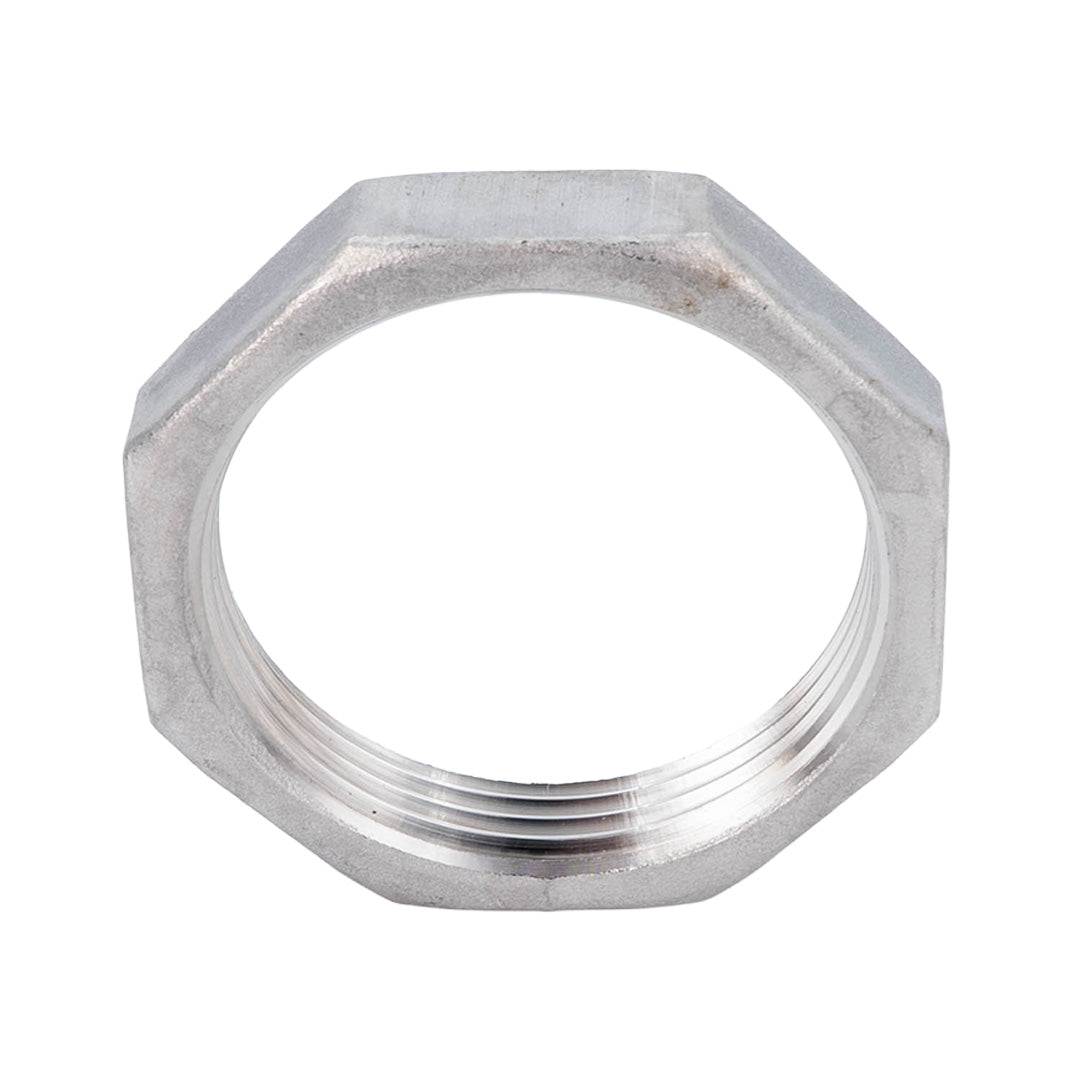

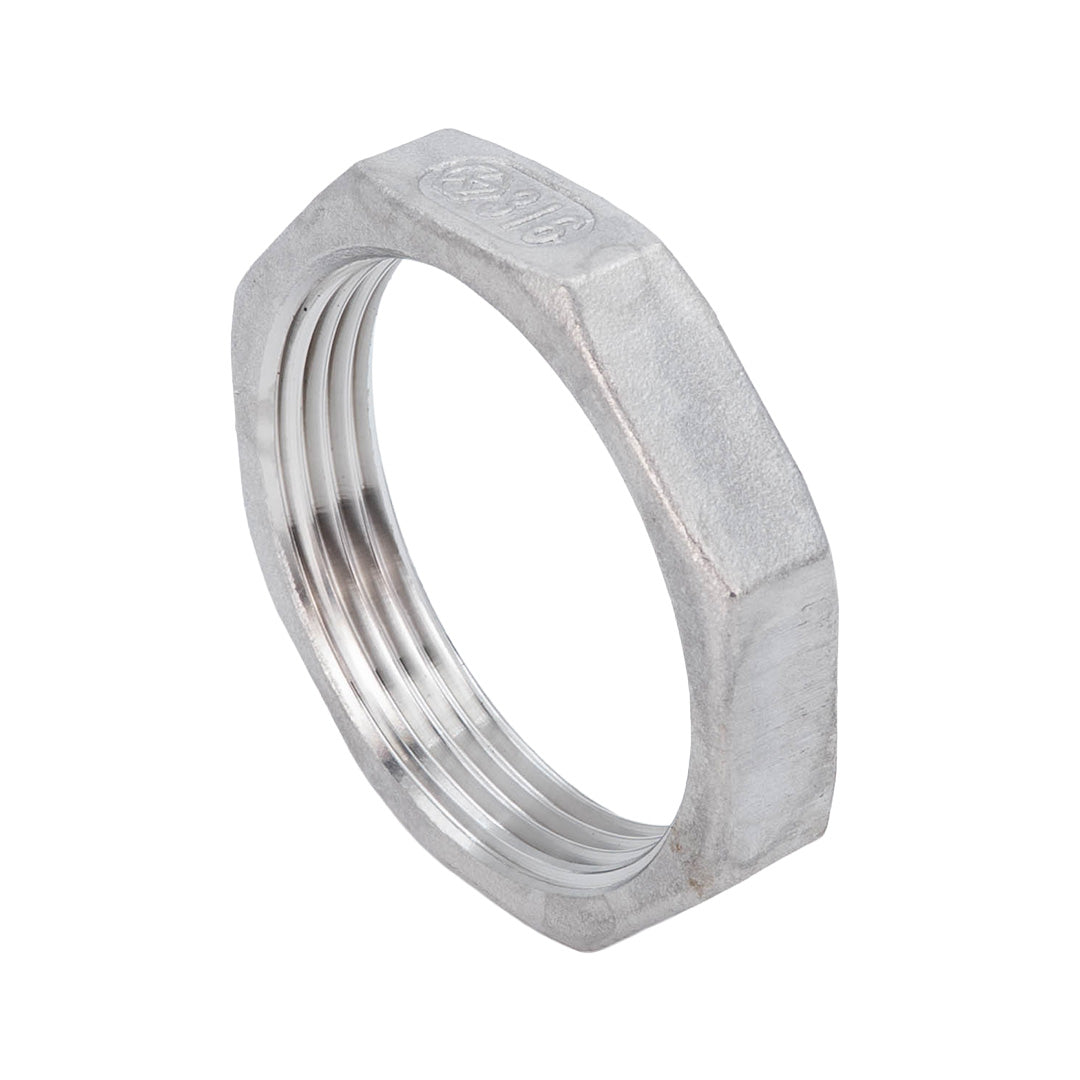

Stainless Steel Lock Nuts – 316 Grade
Our 316 Stainless Steel Lock Nuts are designed to secure male threaded fittings, pipe connections and components in a wide range of industrial, agricultural and commercial applications.
Manufactured from durable 316 grade stainless steel, these lock nuts offer excellent corrosion resistance and are particularly suitable for installations exposed to moisture, outdoor conditions and demanding working environments.
Featuring an internal female BSP parallel thread and a hexagonal exterior, these stainless steel lock nuts can be tightened against a mating surface to help secure threaded components in position.
Key Features
- Material: 316 Grade Stainless Steel
- Thread: Female BSPP (Parallel)
- Design: Hexagonal Lock Nut
- Function: Secures compatible male threaded components
- Corrosion Resistance: Excellent resistance to corrosion and moisture
- Installation: Hexagonal exterior for tightening with a suitable spanner
- Applications: Suitable for industrial, agricultural and general engineering installations
Typical Applications
- Securing threaded pipe fittings and adaptors
- Industrial pipework installations
- Water distribution and irrigation systems
- General engineering and mechanical assemblies
- Marine and coastal environments
- Equipment and machinery connections
- Securing compatible threaded components through panels or mounting surfaces
Technical Specifications
| Specification | Details |
|---|---|
| Product | Stainless Steel Lock Nut |
| Material | 316 Stainless Steel |
| Thread Type | Female BSPP (Parallel) |
| Design | Hexagonal Lock Nut |
| Function | Mechanical Retention of Threaded Components |
| Corrosion Resistance | Suitable for Many Outdoor and Corrosive Environments |
| Pressure Rating | Dependent on the Complete Connection Assembly |
BSP Thread Dimension Guide
BSP thread sizes are nominal and do not represent the actual physical diameter of the thread. The table below provides standard BSP thread major diameters in millimetres to assist with identifying the correct lock nut size.
| BSP Thread Size | Major Diameter (mm) |
|---|---|
| 1/8" | 9.7 |
| 1/4" | 13.2 |
| 3/8" | 16.7 |
| 1/2" | 21.0 |
| 3/4" | 26.4 |
| 1" | 33.2 |
| 1 1/4" | 41.9 |
| 1 1/2" | 47.8 |
| 2" | 59.6 |
| 2 1/2" | 75.2 |
| 3" | 87.9 |
| 4" | 113.0 |
Important: The dimensions shown are standard BSP thread major diameters and are provided for reference. These measurements correspond to the external diameter of the matching male thread, not the internal bore of the lock nut.
Installation Information
Ensure the lock nut and mating male thread are compatible before installation. Thread the nut onto the fitting by hand to avoid cross-threading, then tighten using a suitable spanner.
When securing a fitting through a panel, tank wall or mounting surface, ensure the correct sealing washer or gasket is used where a watertight connection is required.
Please Note: Stainless steel lock nuts are designed primarily for mechanical retention and do not independently create a pressure-tight seal. Where used in pressurised pipework or tank connections, the suitability and pressure rating of the complete assembly must be confirmed.
