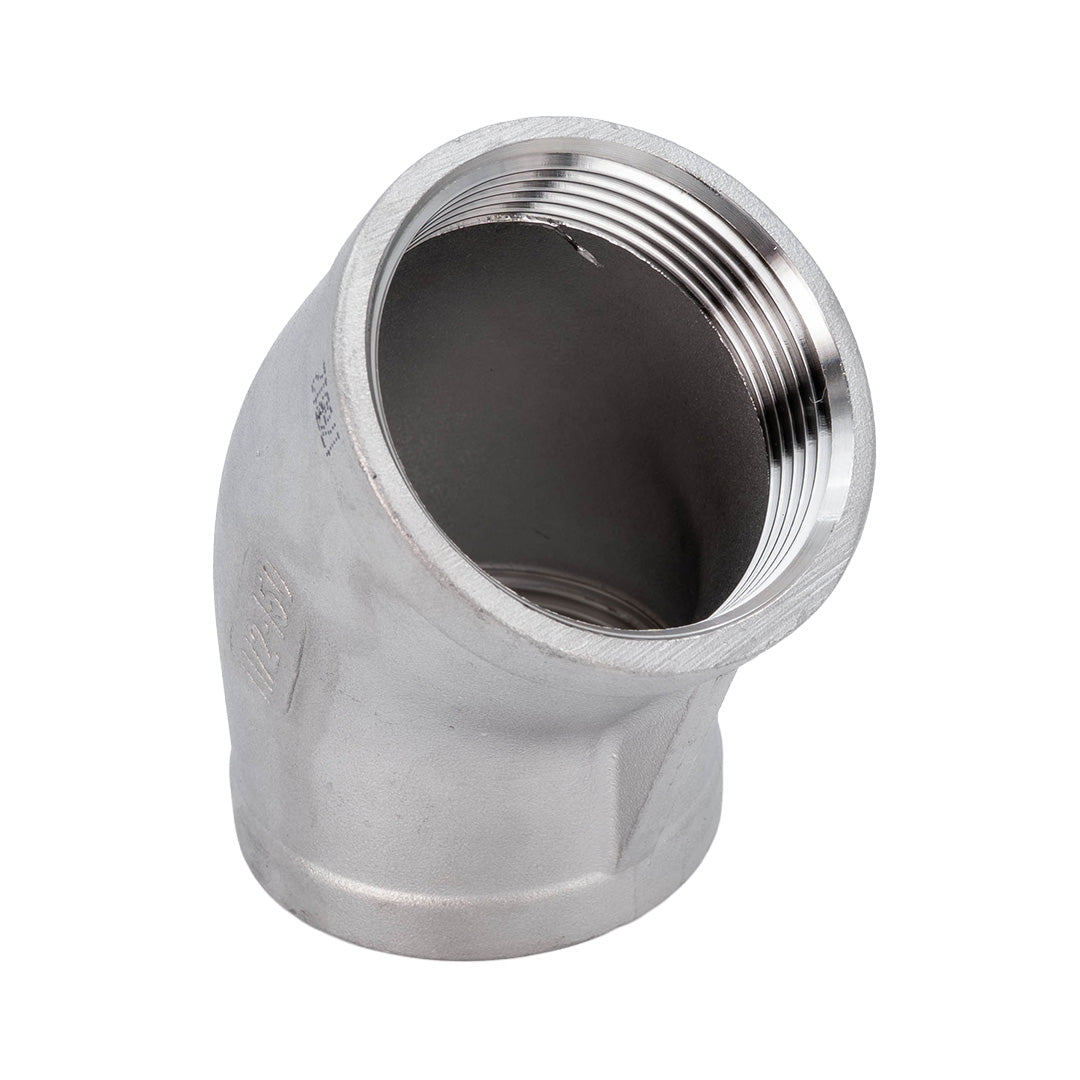

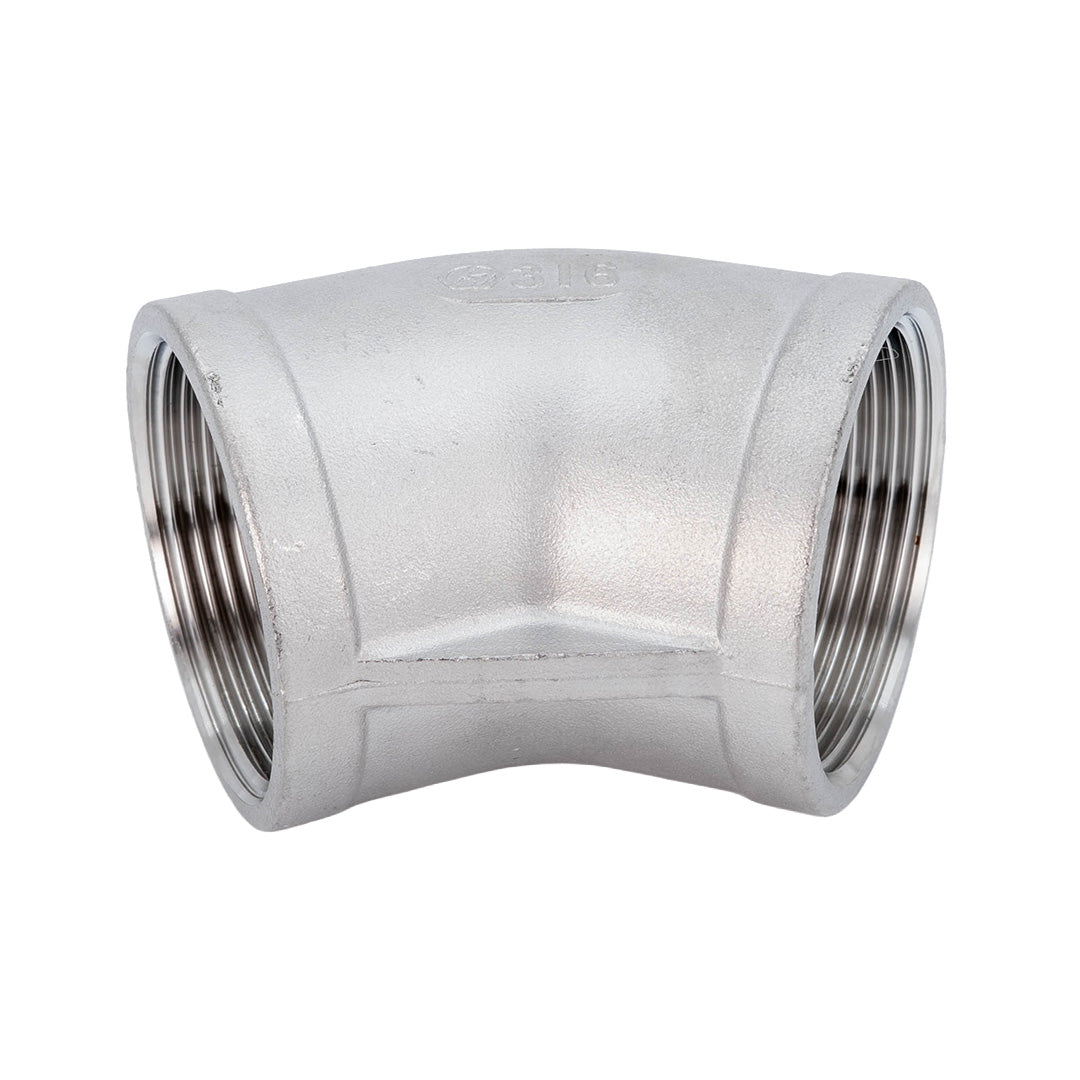

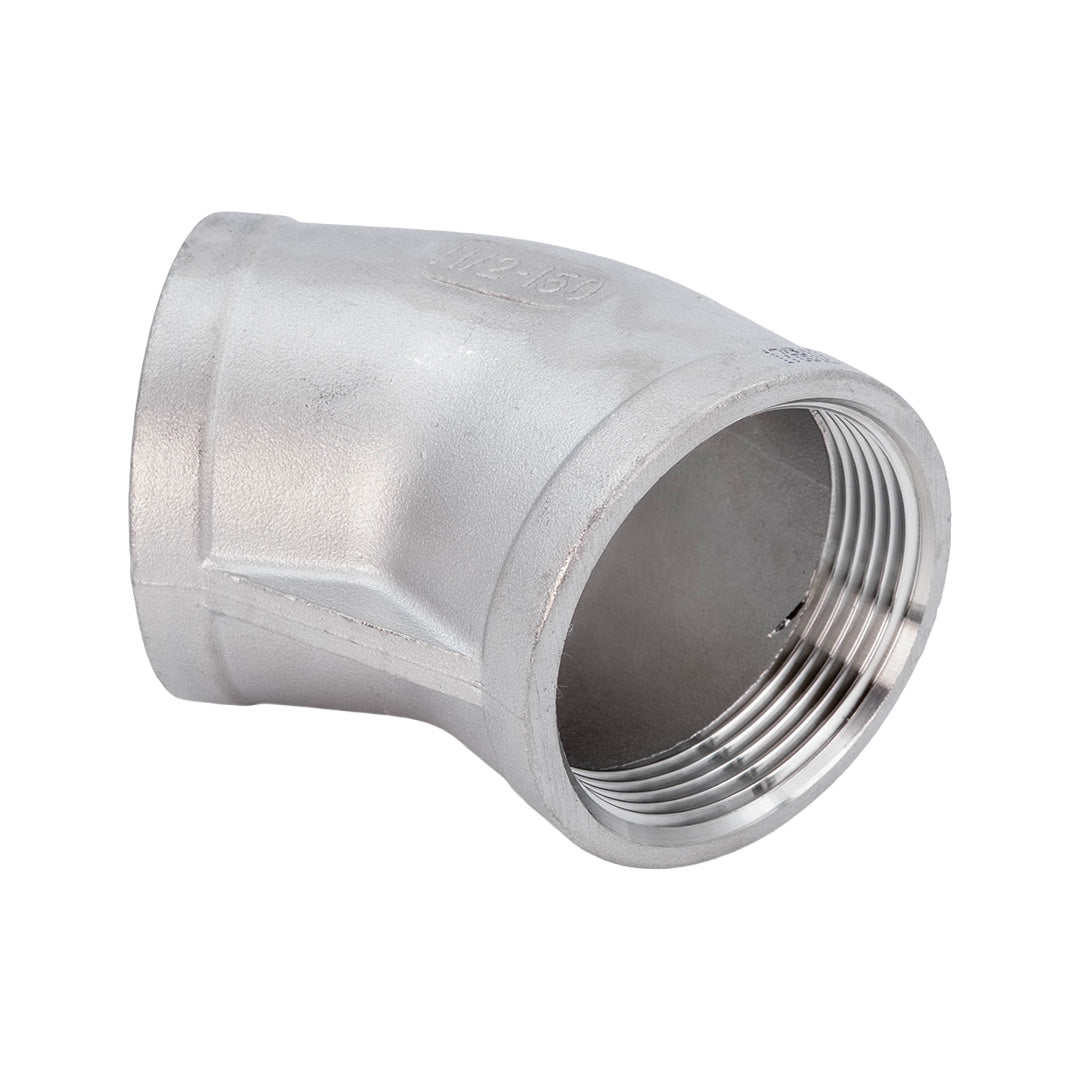

Stainless Steel Elbow 45° – 316 Grade
Our 316 Stainless Steel 45° Elbows are designed to change the direction of threaded pipework by 45 degrees, providing a durable and corrosion-resistant connection for industrial, agricultural and commercial applications.
Manufactured from high-quality 316 grade stainless steel, these 45 degree elbows offer excellent resistance to corrosion and are particularly suitable for demanding environments where durability and reliability are essential.
Featuring female BSP threaded connections at both ends, these fittings provide a convenient solution for changing pipework direction while maintaining a secure connection between compatible male threaded pipes and fittings.
Key Features
- Material: 316 Grade Stainless Steel
- Connection: Female BSP x Female BSP
- Angle: 45 Degrees
- Pressure Class: 150 lbs (Class 150)
- Design: Equal 45° Female Threaded Elbow
- Corrosion Resistance: Excellent resistance to corrosion in demanding environments
- Construction: Durable stainless steel fitting for long-term performance
- Installation: Suitable for connecting compatible male BSP threaded fittings
Typical Applications
- Industrial pipework and fluid transfer systems
- Water distribution and pumping installations
- Agricultural and irrigation systems
- Chemical processing applications, subject to compatibility
- Marine and coastal environments
- General engineering and mechanical installations
- Pipework installations requiring a 45° change in direction
Technical Specifications
| Specification | Details |
|---|---|
| Product | Stainless Steel 45° Elbow |
| Material | 316 Stainless Steel |
| Thread Connection | Female BSP x Female BSP |
| Angle | 45° |
| Pressure Class | Class 150 (150 lbs) |
| Configuration | Equal Female x Female |
| Application | 45° Directional Change in Threaded Pipework |
BSP Thread Dimension Guide
BSP thread sizes are nominal and do not represent the actual physical diameter of the thread. The table below provides standard BSP thread major diameters in millimetres to assist with identifying the correct fitting size.
| BSP Thread Size | Major Diameter (mm) |
|---|---|
| 1/8" | 9.7 |
| 1/4" | 13.2 |
| 3/8" | 16.7 |
| 1/2" | 21.0 |
| 3/4" | 26.4 |
| 1" | 33.2 |
| 1 1/4" | 41.9 |
| 1 1/2" | 47.8 |
| 2" | 59.6 |
| 2 1/2" | 75.2 |
| 3" | 87.9 |
| 4" | 113.0 |
Important: The dimensions shown are standard BSP thread major diameters and are provided for reference. For female threaded fittings, these values correspond to the nominal major diameter of the matching male thread, not the internal bore measurement of the elbow.
Installation Information
Ensure all mating threads are compatible, clean and correctly aligned before installation. Use a suitable thread sealant or PTFE tape where appropriate for the thread type and application.
The 45° design provides a gradual change in pipework direction compared with a 90° elbow, making it suitable for installations where a less abrupt directional change is preferred.
Please Note: Class 150 is a fitting pressure classification and does not mean a fixed maximum working pressure of 150 PSI. Actual working pressure depends on the fitting specification, operating temperature and application. Always confirm the manufacturer's pressure rating before installation.
