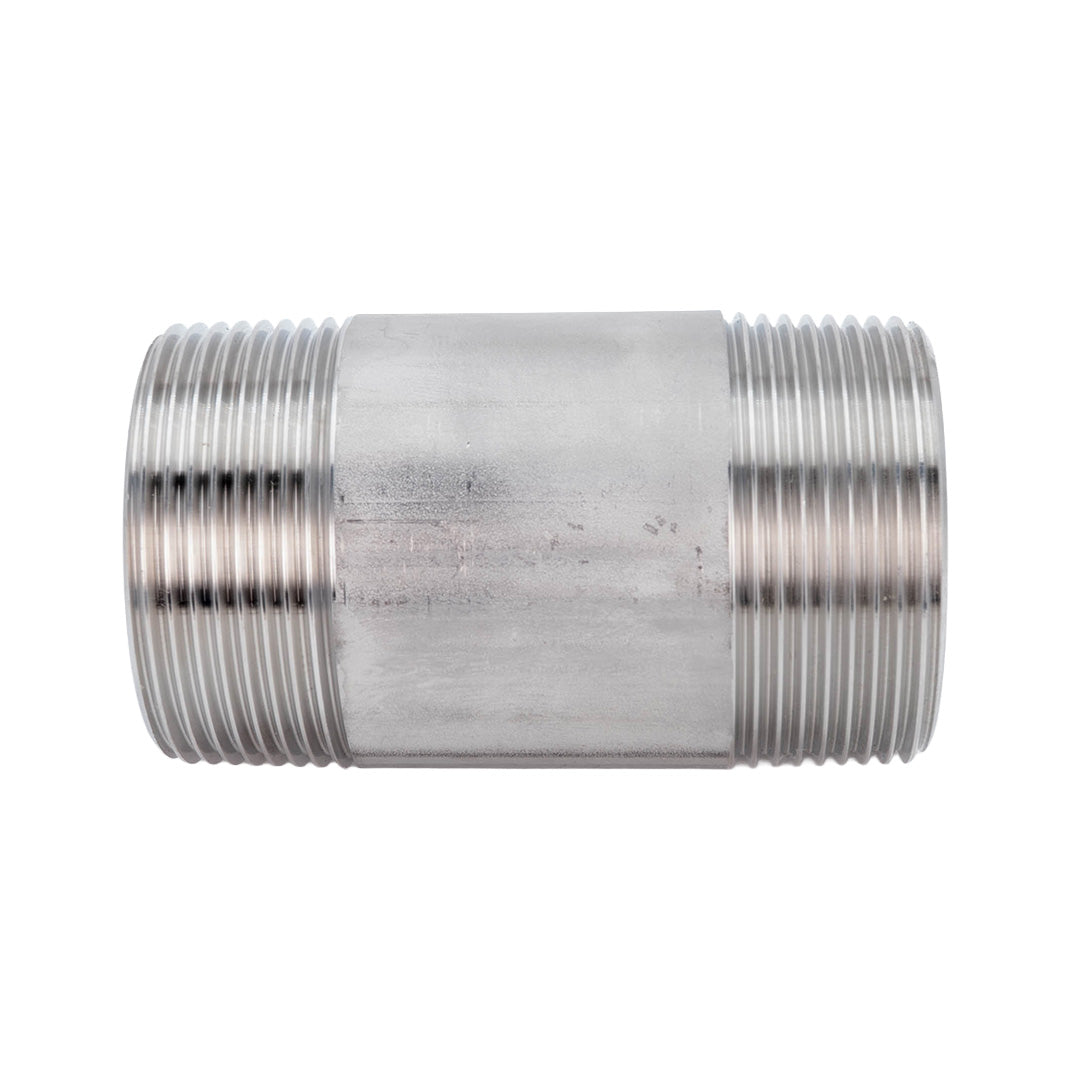

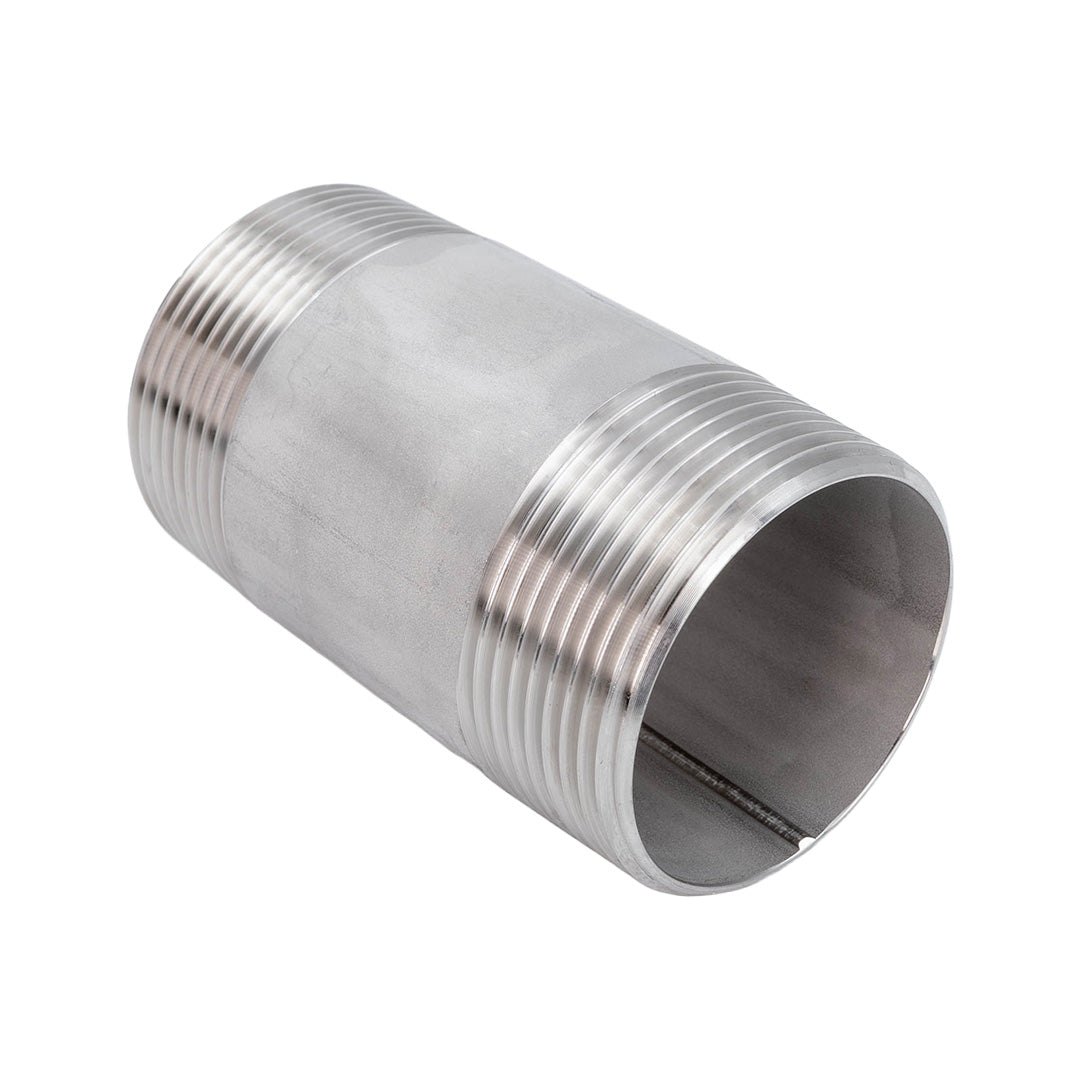

Stainless Steel Barrel Nipples BSP – 316 Grade
Our 316 Stainless Steel Barrel Nipples are designed to connect two female BSP threaded fittings or pipe connections. Manufactured from high-quality 316 grade stainless steel, these fittings provide excellent corrosion resistance, strength and durability for industrial, agricultural and commercial pipework applications.
Featuring male BSP threads at both ends, stainless steel barrel nipples provide a straight connection between compatible female threaded components. Their extended tubular design makes them particularly useful where additional connection length is required compared with a standard hexagonal nipple.
The 316 stainless steel construction offers excellent resistance to corrosion, making these barrel nipples suitable for water distribution, irrigation, pumping systems and a wide range of industrial fluid transfer applications.
Key Features
- Material: 316 Grade Stainless Steel
- Connection: Male BSP x Male BSP
- Design: Straight Barrel Nipple
- Configuration: Equal Male Threaded Connections
- Construction: Tubular stainless steel fitting with external threads at both ends
- Corrosion Resistance: Excellent resistance to corrosion and moisture
- Installation: Connects two compatible female BSP threaded fittings
- Applications: Industrial, agricultural and general engineering pipework
Typical Applications
- Industrial pipework and fluid transfer systems
- Water distribution and pumping installations
- Agricultural and irrigation systems
- Connecting valves, pumps and threaded fittings
- Chemical processing applications, subject to material compatibility
- Marine and coastal environments
- General engineering and mechanical installations
- Extending connections between female threaded components
Technical Specifications
| Specification | Details |
|---|---|
| Product | Stainless Steel Barrel Nipple |
| Material | 316 Stainless Steel |
| Thread Connection | Male BSP x Male BSP |
| Configuration | Equal Male x Male |
| Design | Straight Tubular Barrel Nipple |
| Thread Standard | BSP (British Standard Pipe) |
| Pressure Rating | Refer to Manufacturer's Specification |
| Application | Connecting Female Threaded Pipework and Fittings |
BSP Thread Dimension Guide
BSP thread sizes are nominal and do not represent the actual physical diameter of the thread. The table below provides standard BSP thread major diameters in millimetres to help identify the correct barrel nipple size.
| BSP Thread Size | Major Diameter (mm) |
|---|---|
| 1/8" | 9.7 |
| 1/4" | 13.2 |
| 3/8" | 16.7 |
| 1/2" | 21.0 |
| 3/4" | 26.4 |
| 1" | 33.2 |
| 1 1/4" | 41.9 |
| 1 1/2" | 47.8 |
| 2" | 59.6 |
| 2 1/2" | 75.2 |
| 3" | 87.9 |
| 4" | 113.0 |
Important: The dimensions shown are standard BSP thread major diameters and are provided for reference. BSP thread sizes are nominal, meaning a 1" BSP barrel nipple does not have an outside thread diameter of 25.4 mm. Actual measurements may vary depending on the thread form and manufacturing tolerances.
Installation Information
Ensure both female threaded connections are compatible with the barrel nipple before installation. Threads should be clean, correctly aligned and free from damage.
Use a suitable thread sealant or PTFE tape where appropriate for the thread type and application. Avoid overtightening, as excessive force may damage the threads or connected fittings.
Please Note: Barrel nipples are available in different lengths and thread configurations. Always check the selected size and length before ordering. Working pressure depends on the manufacturer's specification, operating temperature and installation conditions.
