Description

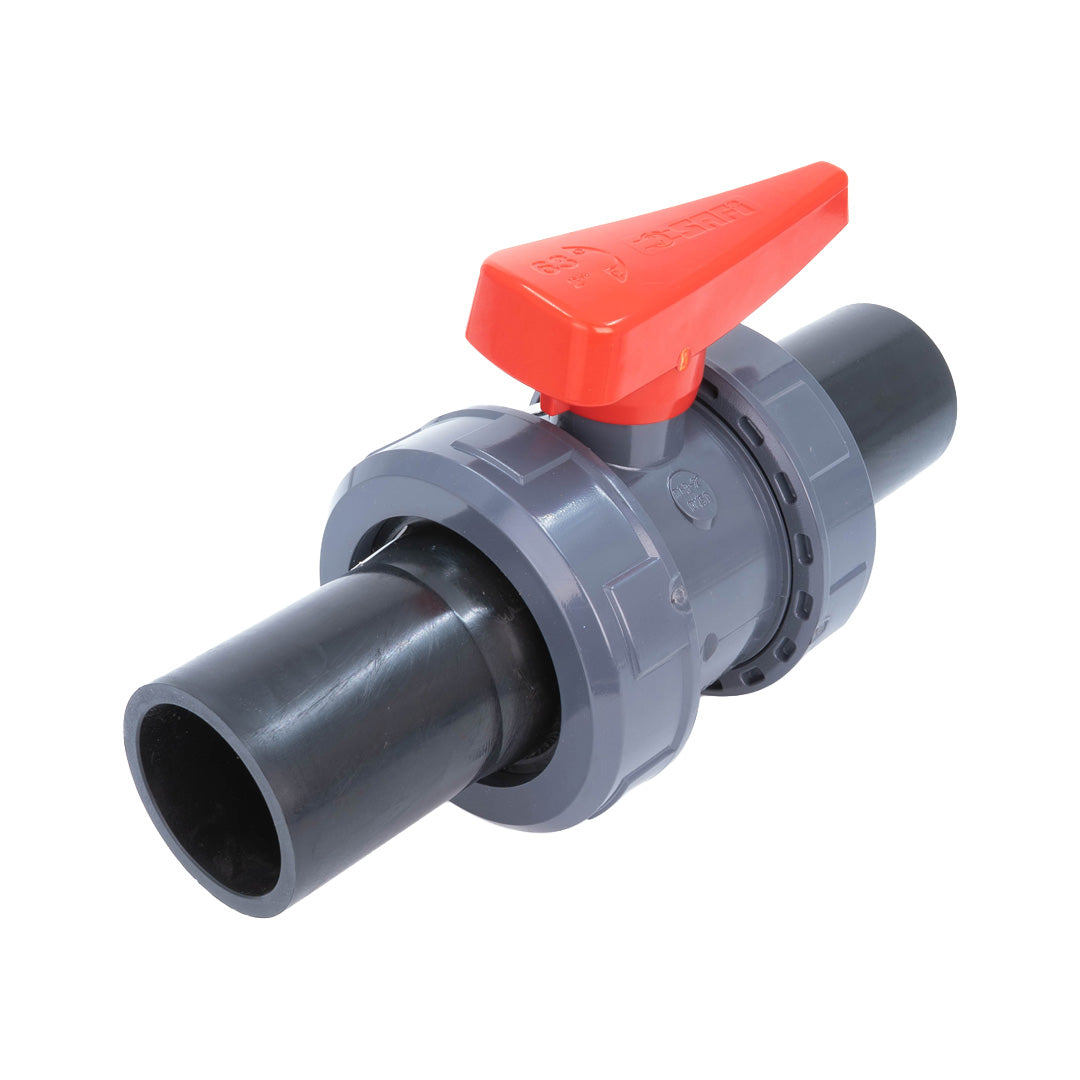

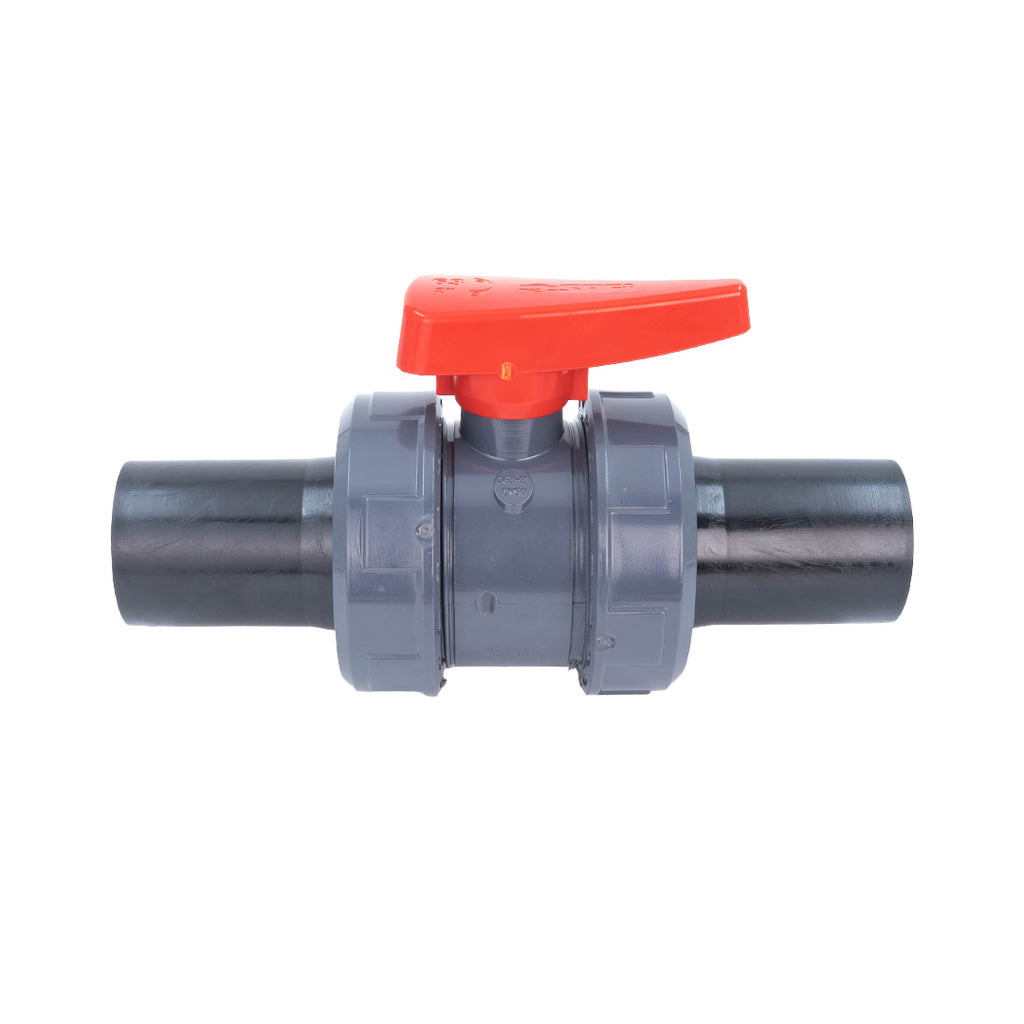

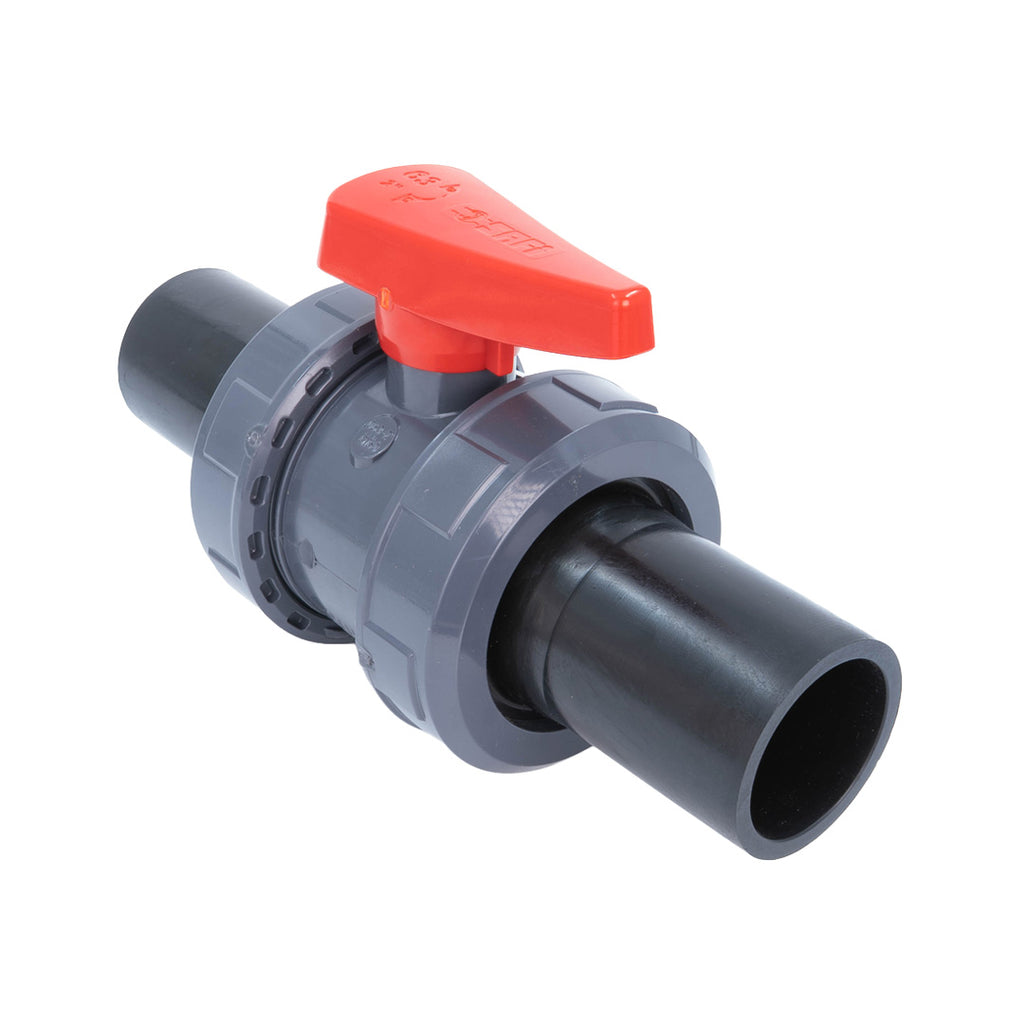

SAFI PVC Ball Valve – HDPE Spigot Ends
The SAFI PVC Ball Valve with HDPE Spigot Ends is a high-quality, full-bore isolation valve designed for reliable flow control in polyethylene pipeline systems. Combining a corrosion-resistant PVC-U valve body with HDPE spigot connections, this valve provides a practical solution for water distribution, irrigation, industrial processing and general HDPE pipework.
The HDPE spigot ends allow connection to compatible polyethylene pipework using suitable electrofusion couplers, providing a secure joint without the need for threaded adaptors or flanged connections.
Featuring a full-bore design, the valve helps minimise flow restriction and pressure loss. High-performance PTFE seats, additional seals beneath the seats and dual spindle seals provide dependable shut-off performance and reliable manual operation.
Key Features & Benefits
- Genuine SAFI Valve – High-quality thermoplastic valve manufactured by SAFI.
- PVC-U Valve Body – Excellent corrosion resistance and durability.
- HDPE Spigot Ends – Designed for connection to compatible polyethylene pipework.
- Electrofusion Compatible – Suitable for installation using appropriately sized electrofusion couplers, subject to manufacturer compatibility.
- Full Bore – Helps minimise flow restriction and pressure loss.
- PTFE Seats – Reliable sealing and smooth valve operation.
- Additional Seat Seals – Enhanced sealing performance beneath the seats.
- Dual Spindle Seals – Two spindle seals for optimal sealing performance.
- Manual Operation – Simple quarter-turn operation for reliable isolation.
- Water Treatment Certifications – SAFI lists ACS, WRAS, NSF and marine certifications.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | SAFI |
| Valve Type | Full Bore Ball Valve |
| Body Material | PVC-U |
| Connections | HDPE PE100 Spigot Ends |
| Connection Method | Electrofusion (Subject to Compatibility) |
| Seat Material | PTFE |
| Seat Sealing | Additional Seals Beneath Seats |
| Spindle Sealing | Double Spindle Seals |
| Operation | Manual Quarter-Turn |
| Actuation | Not Suitable |
| Locking System | Not Suitable |
| Certifications | ACS, WRAS, NSF, Marine* |
Typical Applications
- HDPE water distribution pipelines
- Agricultural irrigation systems
- Water treatment and filtration installations
- Industrial water supply and transfer
- Chemical processing with compatible media
- Commercial and industrial fluid handling
- General polyethylene pressure pipe systems
Installation Accessories
For connection to compatible HDPE pipework, view our range of Electrofusion Couplers .
Important Information
This SAFI PVC ball valve is designed for manual operation only and is not suitable for actuator installation or locking systems.
HDPE Spigot Connections: Always verify the spigot material, outside diameter, SDR compatibility and approved joining method before installation. Follow the relevant electrofusion fitting manufacturer's welding instructions.
Always confirm the valve's pressure and temperature limitations, chemical compatibility and connection requirements before installation.
*Certification applicability may vary by product configuration and intended application. Please refer to the manufacturer's technical documentation for full details.
