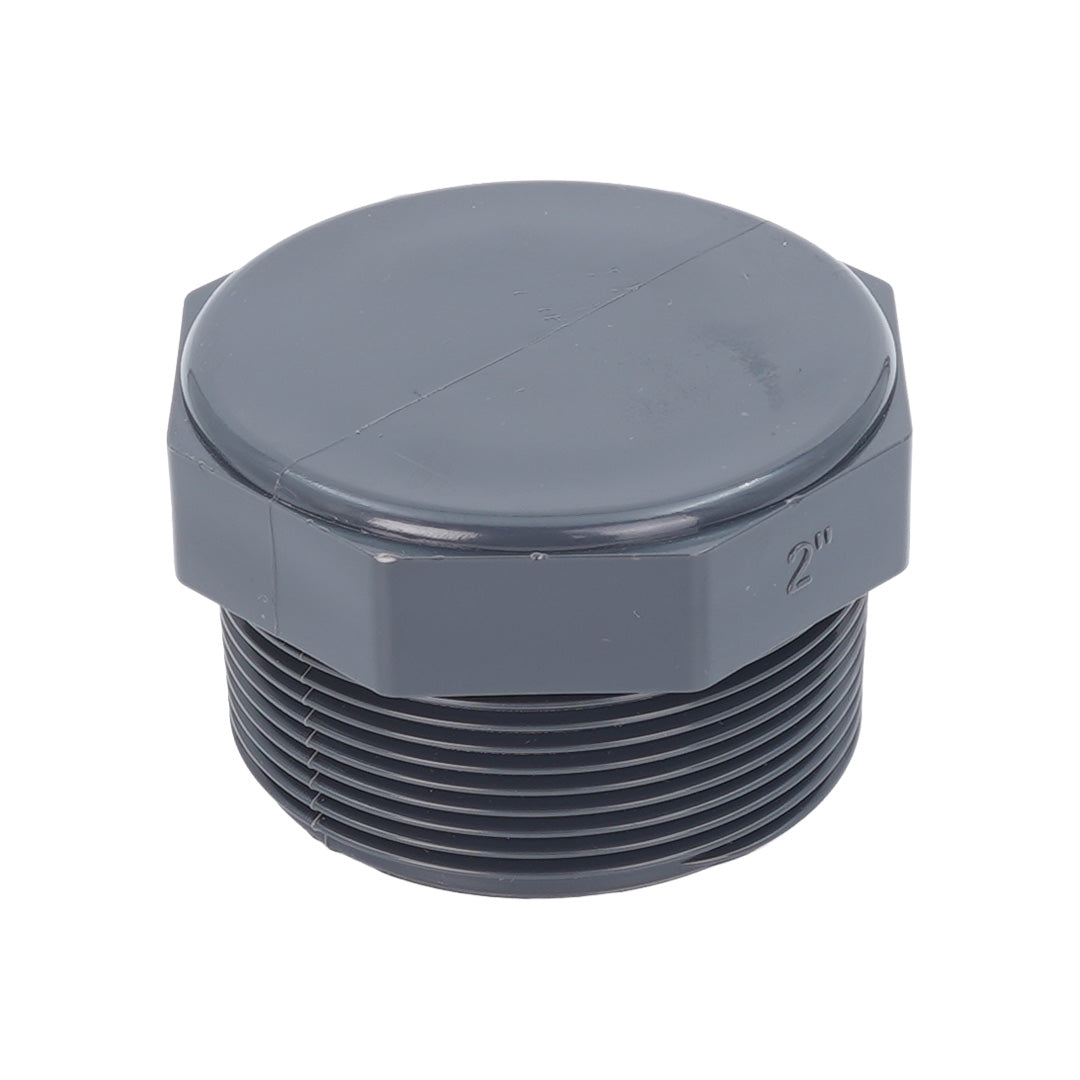

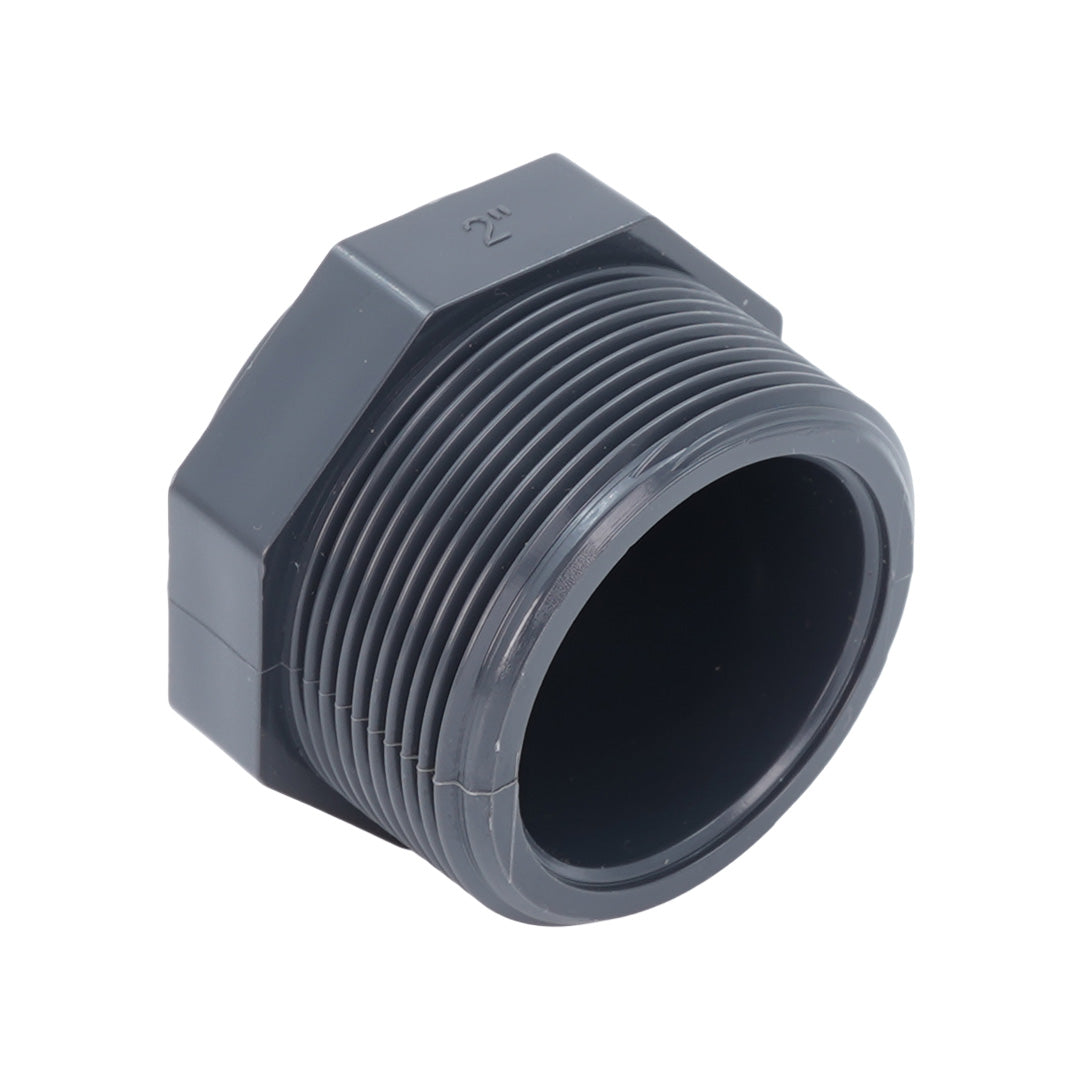

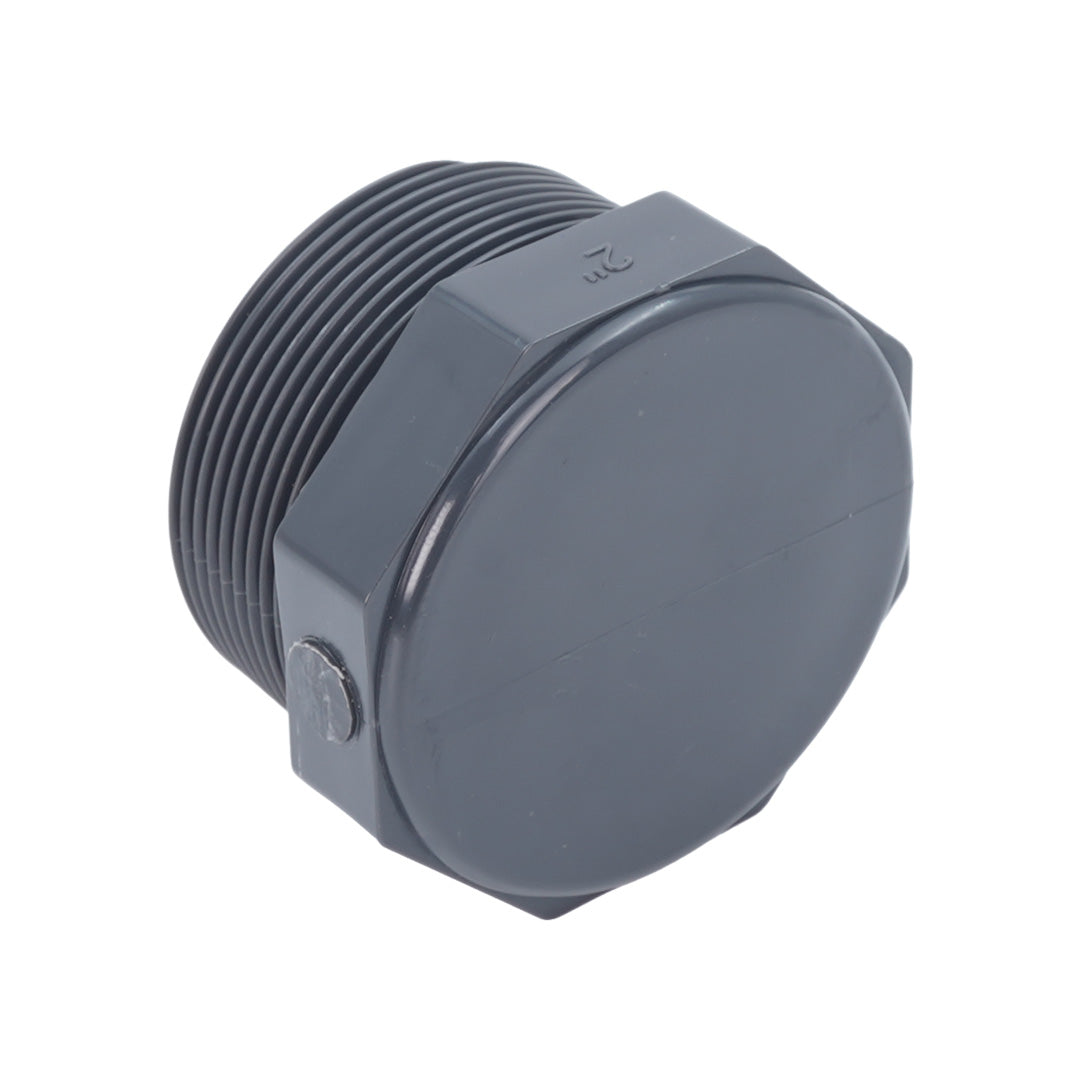

PVC Plug Male BSP – PVC-U Threaded Plug
Our PVC Male BSP Threaded Plugs are manufactured from high-quality PVC-U (Unplasticised Polyvinyl Chloride) and are designed to securely close or blank off female BSP threaded connections in pressure pipework systems.
These durable PVC threaded plugs provide a convenient solution for sealing unused pipework outlets, valves, manifolds and threaded fittings. Their corrosion-resistant PVC-U construction makes them suitable for a wide range of applications, including agricultural irrigation, swimming pools, water treatment, pumping systems and industrial pipework.
PVC-U plugs offer a lightweight and economical alternative to traditional metal threaded plugs, with excellent resistance to corrosion and compatibility with water and suitable chemicals.
Features & Benefits
- Material: PVC-U (Unplasticised Polyvinyl Chloride).
- Connection: Male BSP Threaded.
- Function: Blanks off female BSP threaded connections.
- Pressure Rating: 12 Bar (170 PSI) at 20°C.
- Thread Standards: BS21, DIN2999 and ISO7.
- Corrosion Resistant: Suitable for water and compatible chemical applications.
- Lightweight Construction: Easy to handle and install.
- Removable: Allows threaded outlets to be reopened when required.
- Low Maintenance: Durable PVC-U construction.
- Versatile: Suitable for blanking pipework, valves, manifolds and threaded fittings.
Technical Specifications
| Specification | Details |
|---|---|
| Product | PVC Male BSP Plug |
| Material | PVC-U |
| Connection Type | Male BSP Threaded |
| Function | Threaded Blanking Plug |
| Pressure Rating | 12 Bar (170 PSI) at 20°C |
| Maximum Temperature | 60°C |
| Thread Standards | BS21, DIN2999, ISO7 |
| Applications | Water, Irrigation & Industrial Pipework |
BSP Thread Size Guide
PVC threaded plugs are sized according to their nominal BSP thread dimensions. BSP thread sizes do not directly correspond to the physical outside diameter measured in inches.
For example, a 1" BSP male thread measures approximately 33.25mm across its outside diameter, rather than 25.4mm.
| BSP Thread Size | Male Thread Outside Diameter (mm) |
|---|---|
| 1/2" | 20.96mm |
| 3/4" | 26.44mm |
| 1" | 33.25mm |
| 1 1/4" | 41.91mm |
| 1 1/2" | 47.80mm |
| 2" | 59.61mm |
| 2 1/2" | 75.18mm |
| 3" | 87.88mm |
| 4" | 113.03mm |
Important: The measurements above represent the approximate outside diameters of male BSP threads. Always select the correct nominal BSP thread size to match the female threaded fitting being blanked off.
Pressure & Temperature Information
PVC-U threaded fittings have a maximum working pressure of 12 Bar (170 PSI) at 20°C. As operating temperatures increase, the allowable working pressure decreases.
PVC-U pressure systems must not be used at temperatures exceeding 60°C. Always refer to the manufacturer's pressure and temperature derating information before installation.
Typical Applications
- Blanking unused BSP threaded pipework connections
- Agricultural irrigation and water distribution systems
- Swimming pool filtration and circulation systems
- Industrial water transfer systems
- Water treatment and filtration equipment
- Sealing unused threaded valve and manifold outlets
- Commercial and industrial PVC pressure pipework
Installation Advice
PVC male threaded plugs should be installed into compatible female BSP threaded fittings using a suitable sealing method approved for PVC-U applications.
Important: Always check thread compatibility before installation. Avoid overtightening, as excessive force can damage or crack plastic threaded fittings.
Ensure the system is fully depressurised before removing or replacing a threaded plug.
Buy PVC Male BSP Threaded Plugs Online at T-mex
At T-mex, we supply a comprehensive range of PVC-U threaded pipe fittings, including male threaded plugs, reducing bushes, equal nipples, reducing nipples, threaded sockets, elbows and tees.
Our PVC threaded plugs provide a durable, corrosion-resistant and economical solution for securely blanking off female BSP threaded connections in water distribution, irrigation and industrial pipework systems.
Order online today for competitive prices and fast UK delivery.
