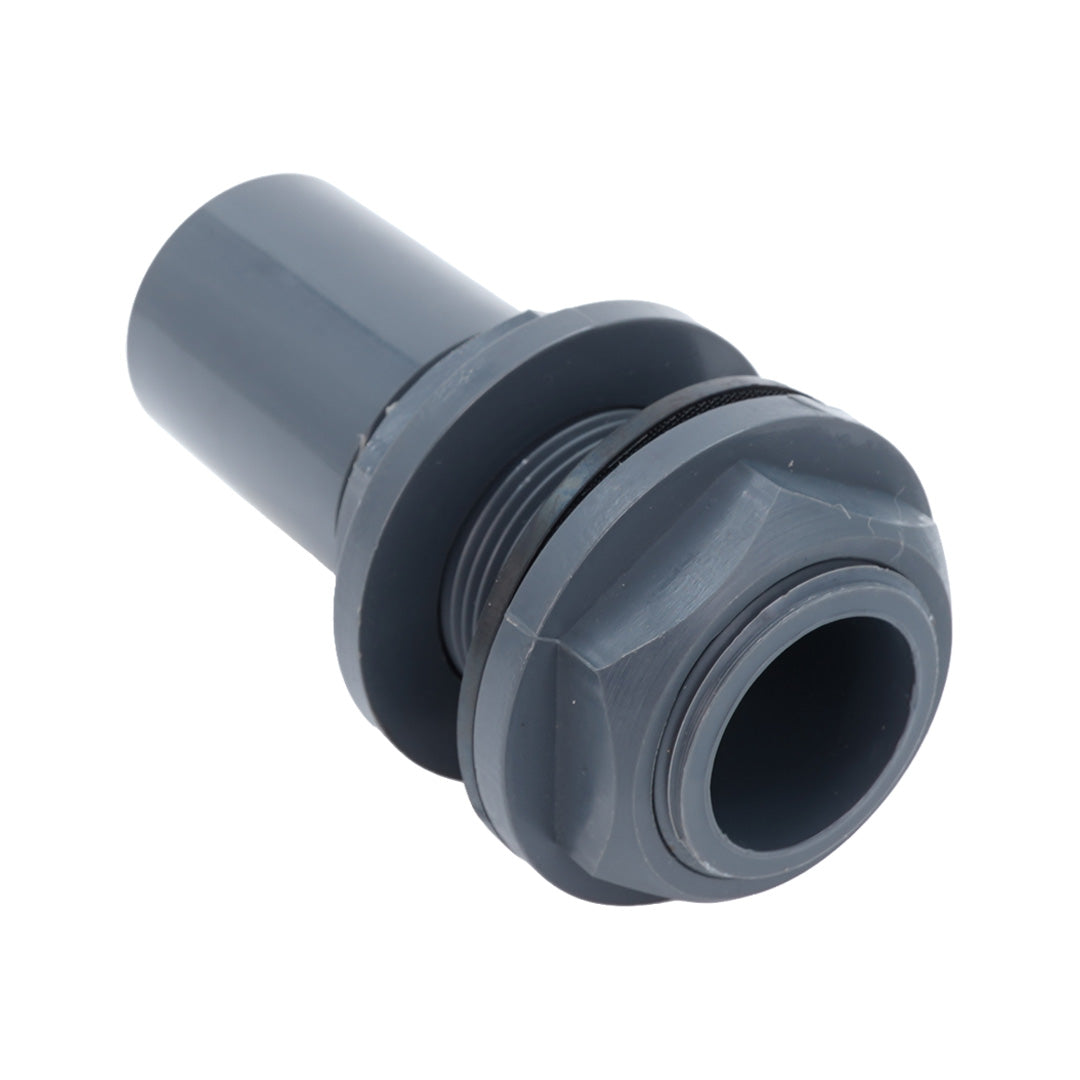

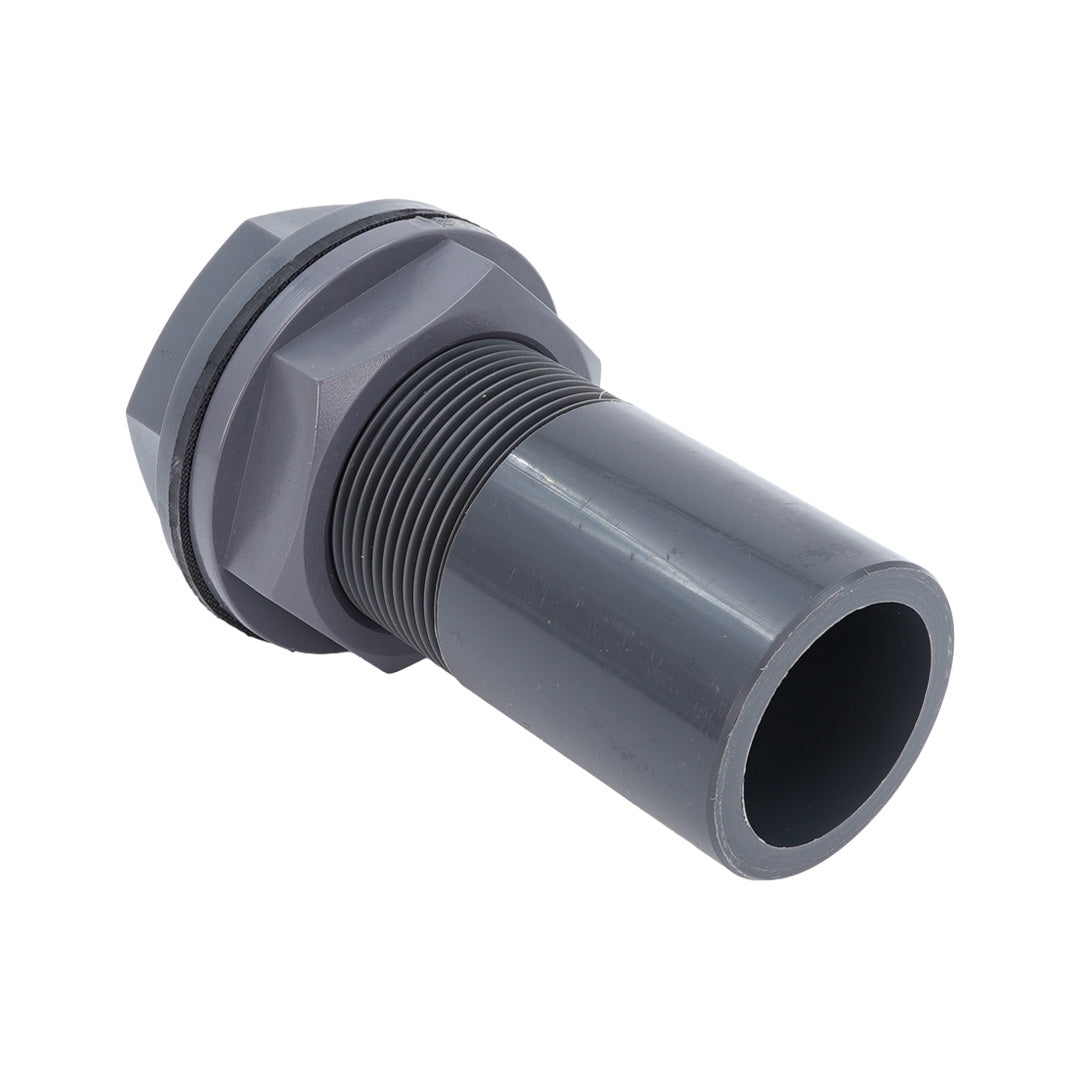

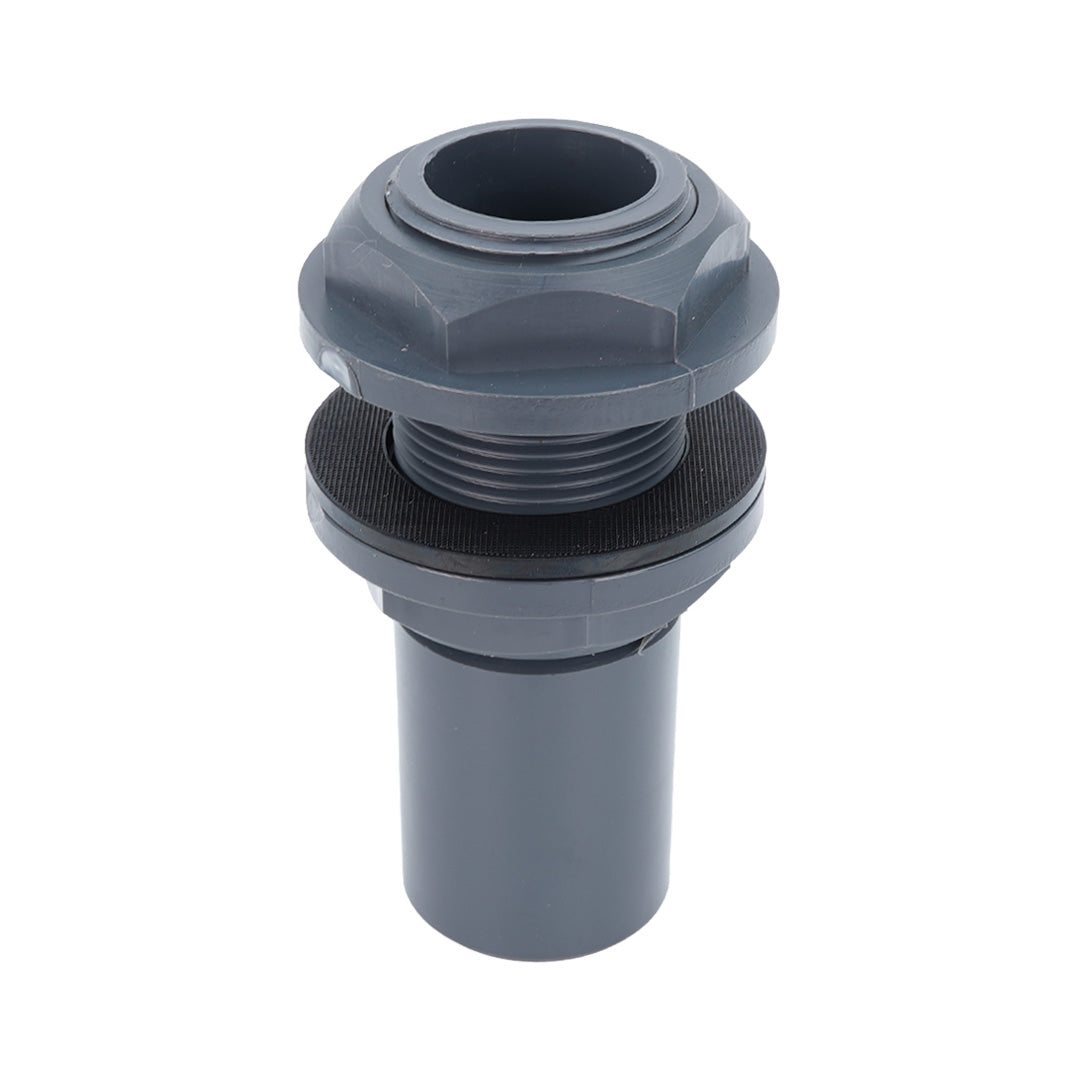

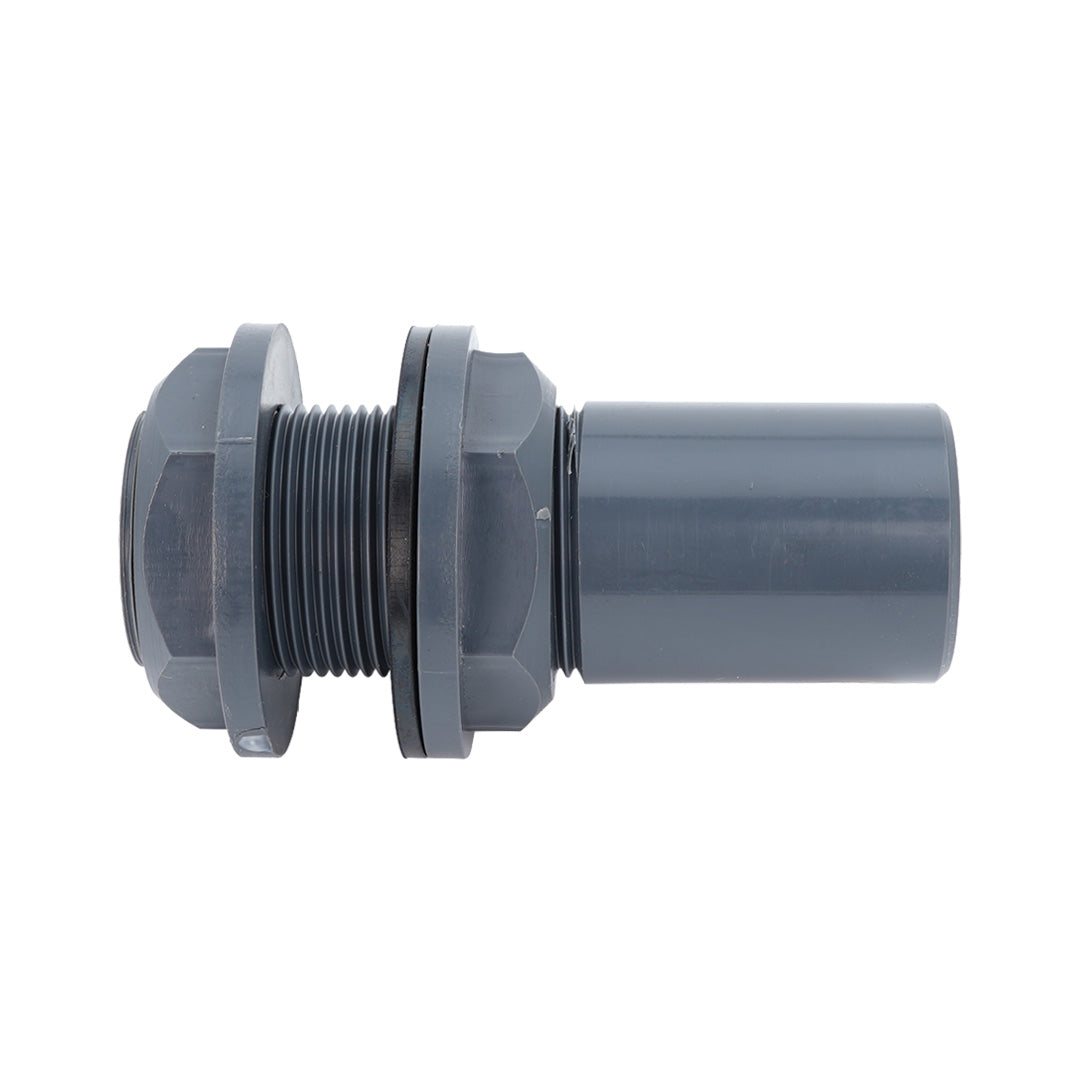

PVC Tank Connector – Imperial
Our PVC Tank Connectors provide a secure and reliable connection through the wall of a water tank, storage vessel or container. Manufactured from durable PVC-U, these fittings are ideal for water storage, irrigation, agricultural and industrial applications.
Designed for installation through a suitable opening in the tank wall, each connector provides a practical solution for connecting pipework to tanks and reservoirs.
Key Features
- Material: PVC-U (Unplasticised Polyvinyl Chloride)
- Application: Tank outlets, water storage and irrigation systems
- Connection: Imperial PVC pipe connection
- Installation: Through-wall tank fitting
- Corrosion Resistant: Suitable for a wide range of water applications
- Sizes Available: 1/2" to 4"
BSP Thread & Imperial Pipe Size Guide
The table below shows the nominal imperial pipe size, corresponding imperial PVC pipe outside diameter and BSP thread major diameter.
| Nominal Size | BSP Thread Major Ø (mm) | Imperial PVC Pipe OD (mm) |
|---|---|---|
| 1/2" | 20.9 | 21.4 |
| 3/4" | 26.4 | 26.7 |
| 1" | 33.2 | 33.6 |
| 1 1/4" | 41.9 | 42.2 |
| 1 1/2" | 47.8 | 48.3 |
| 2" | 59.6 | 60.3 |
| 2 1/2" | 75.2 | 75.2 |
| 3" | 87.9 | 88.9 |
| 4" | 113.0 | 114.3 |
Important: Imperial PVC pipe sizes are nominal and do not represent the actual outside diameter. For example, 2" imperial PVC pipe has an outside diameter of 60.3 mm, not 50.8 mm. BSP thread diameters and imperial pipe outside diameters are different measurements and are not interchangeable.
Typical Applications
- Water storage tanks and reservoirs
- Agricultural and horticultural irrigation systems
- Rainwater harvesting systems
- Industrial water storage
- Tank outlets and drainage connections
- Water transfer and distribution systems
Installation Information
Ensure the tank wall is suitable for installation and that the mounting hole is correctly sized for the connector. Install the appropriate sealing washer or gasket against the tank wall and tighten the retaining nut evenly to achieve a secure, watertight seal.
Please Note: Confirm the tank connector's connection type, sealing arrangement and pressure suitability before installation. BSP thread sizes and imperial PVC pipe dimensions are provided for reference and should not be used to determine the required tank hole diameter.
