Description

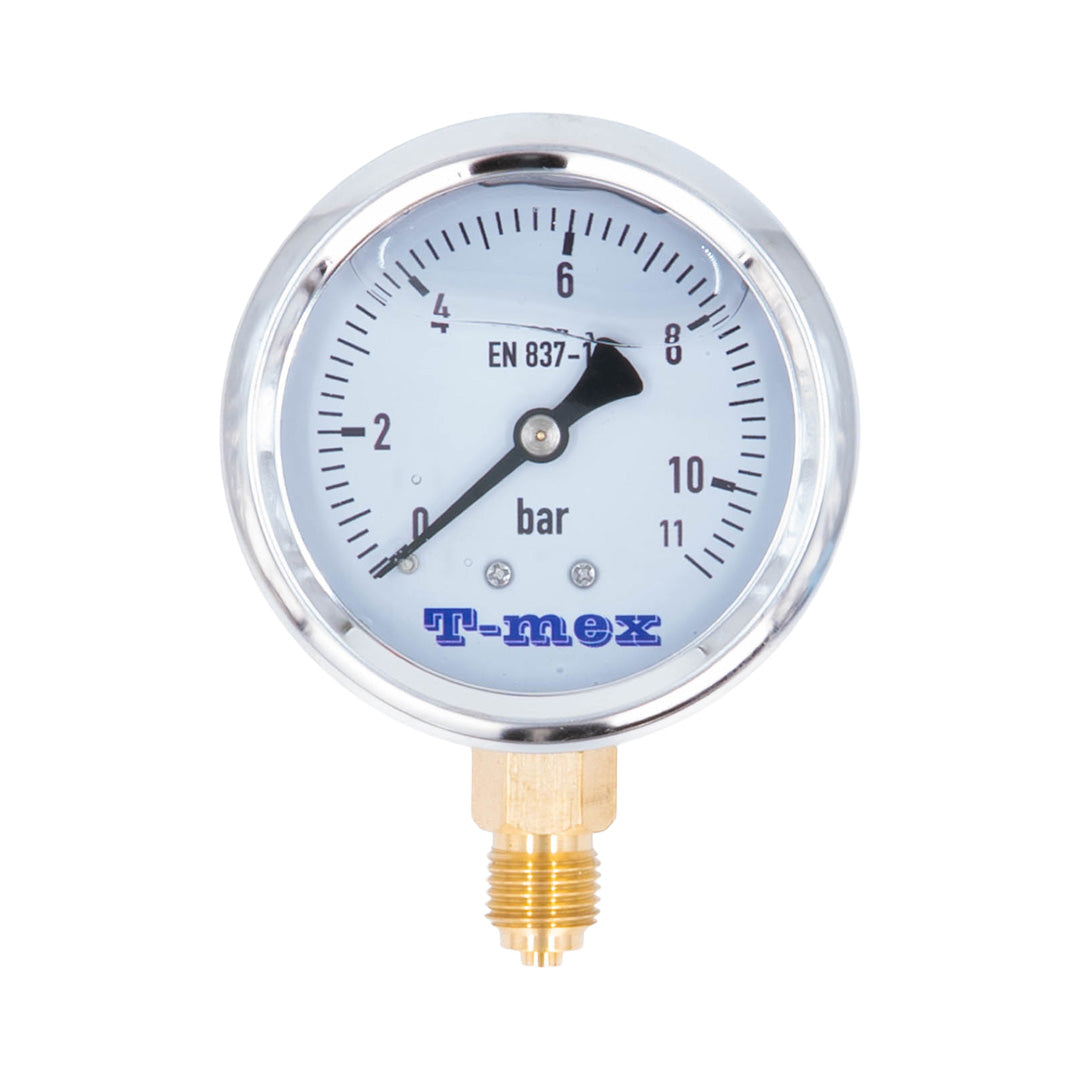

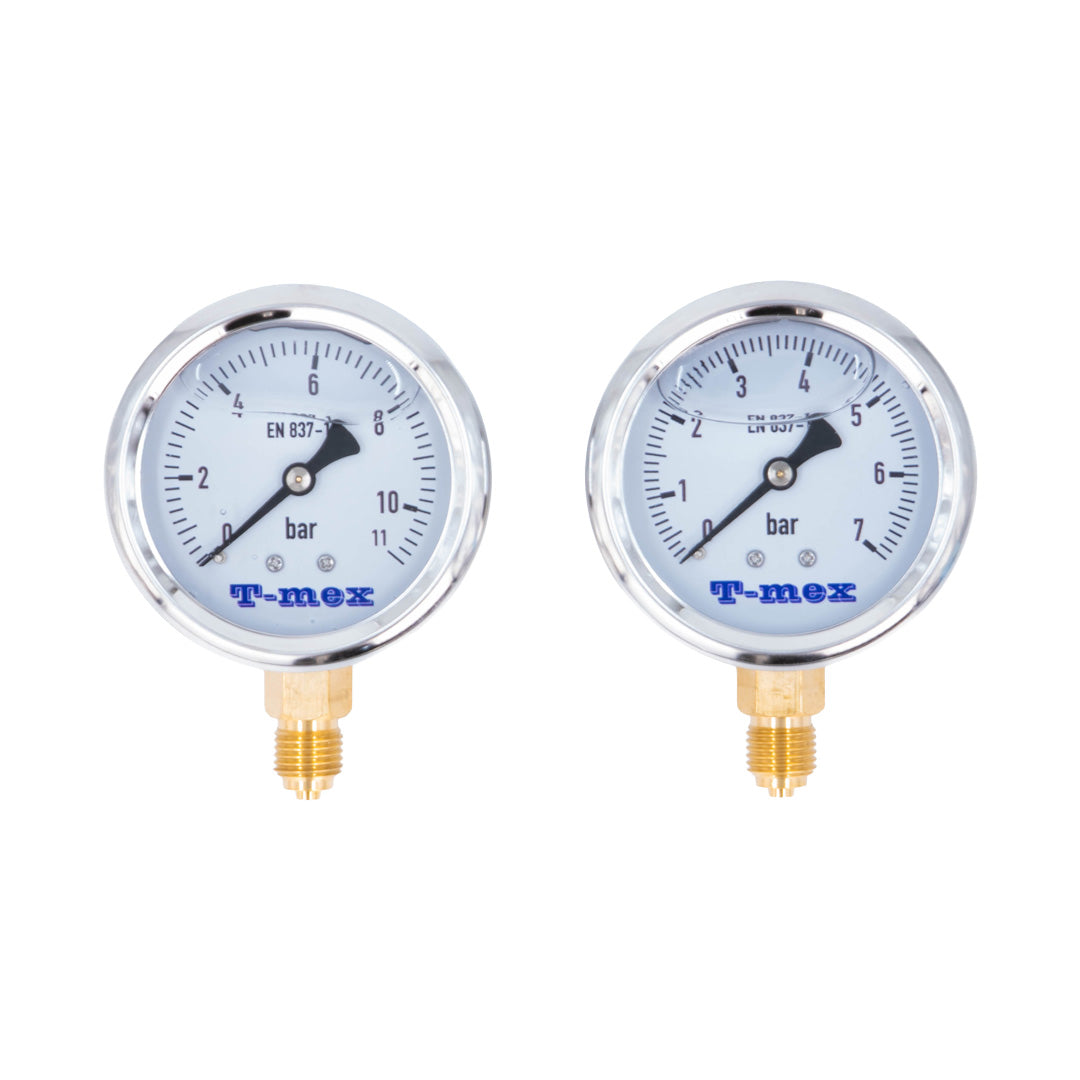

Glycerine Filled Pressure Gauge – Stainless Steel 63mm
Our Glycerine Filled Pressure Gauge is designed for accurate and reliable pressure monitoring in water supply, irrigation, pumping and industrial applications. Featuring a durable stainless steel body and a 63mm dial face, this gauge provides clear pressure readings in a compact, robust design.
The glycerine-filled casing helps dampen pointer movement caused by vibration and pressure fluctuations, improving readability and helping protect the internal mechanism against wear.
Key Features
- Gauge Type: Glycerine Filled Pressure Gauge
- Body Material: Stainless Steel
- Dial Diameter: 63mm
- Connection: 1/4" Male BSPT Thread Bottom Entry
- Available Pressure Ranges: 2.5, 6, 10, 16 and 21 Bar
- Glycerine Filled: Reduces vibration and pointer fluctuations
- Easy to Read: Clear dial for convenient pressure monitoring
Technical Specifications
| Specification | Details |
|---|---|
| Gauge Type | Glycerine Filled |
| Body Material | Stainless Steel |
| Dial Size | 63mm |
| Thread Connection | 1/4" Male BSPT |
| Pressure Ranges | 0–2.5, 0–6, 0–10, 0–16, 0–21 Bar |
| Filling | Glycerine |
Typical Applications
- Water supply and distribution systems
- Irrigation and agricultural installations
- Water pumps and pumping stations
- Industrial pipework and machinery
- Pressure monitoring and testing
Available in five pressure ranges: Select the required pressure rating from the options above to suit your installation.
