Full-Face Flange BSP PN10/16
Description
BSP threaded full-face (with bolt holes) manufactured to suit PN10/16 pattern. WRAS approved.
Sizing

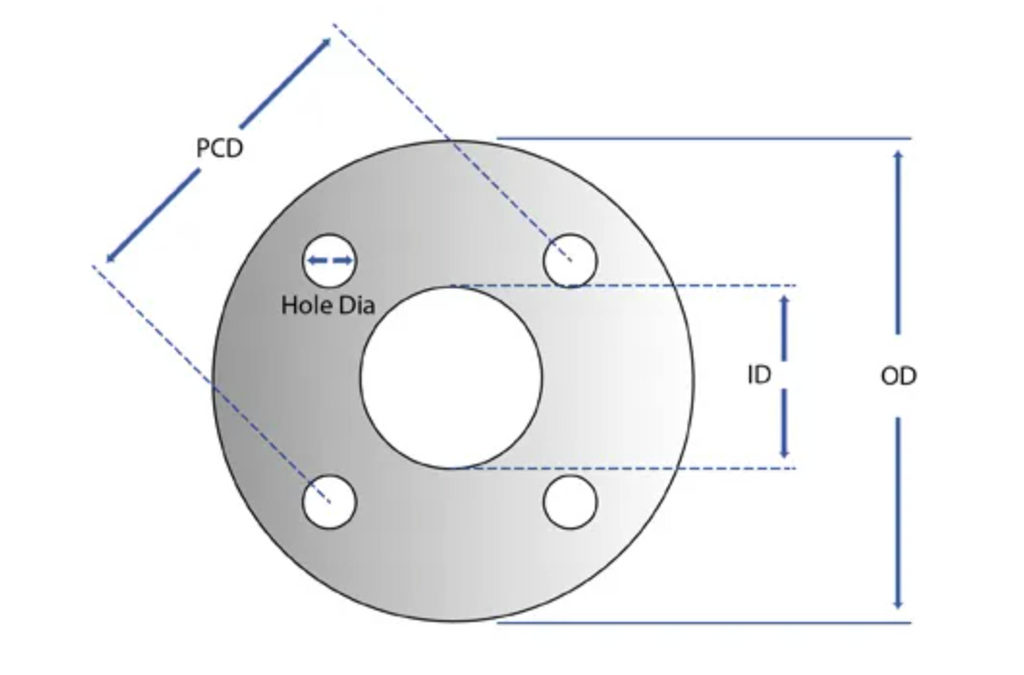

The number and diameter of holes together with the PCD determines the flange size and pattern. The PCD (Pitch Circle Diameter) is the measurement from the centre of one bolt hole, across the centre of the flange, to the centre of the opposite hole.
The table below details the specification for PN10/16. We can also supply Table D/E if required.
|
Flange Size |
o.d. mm |
PCD mm |
Bolt Holes |
Bolt Hole Dia mm |
Bolt Dia mm |
| 1/2" | 95 | 65 | 4 | 14 | M12 |
| 3/4" | 105 | 75 | 4 | 14 | M12 |
| 1" | 115 | 85 | 4 | 14 | M12 |
| 1 1/4" | 140 | 100 | 4 | 18 | M16 |
| 1 1/2" | 150 | 110 | 4 | 18 | M16 |
| 2" | 165 | 125 | 4 | 18 | M16 |
| 2 1/2" | 185 | 145 | 4 | 18 | M16 |
| 3" | 200 | 160 | 8 | 18 | M16 |
| 4" | 220 | 180 | 8 | 18 | M16 |
| 6" | 285 | 240 | 8 | 22 | M20 |
| 8" | 340 | 295 | 12 | 22 | M20 |
| 10" | 395 | 355 | 12 | 26 | M24 |
