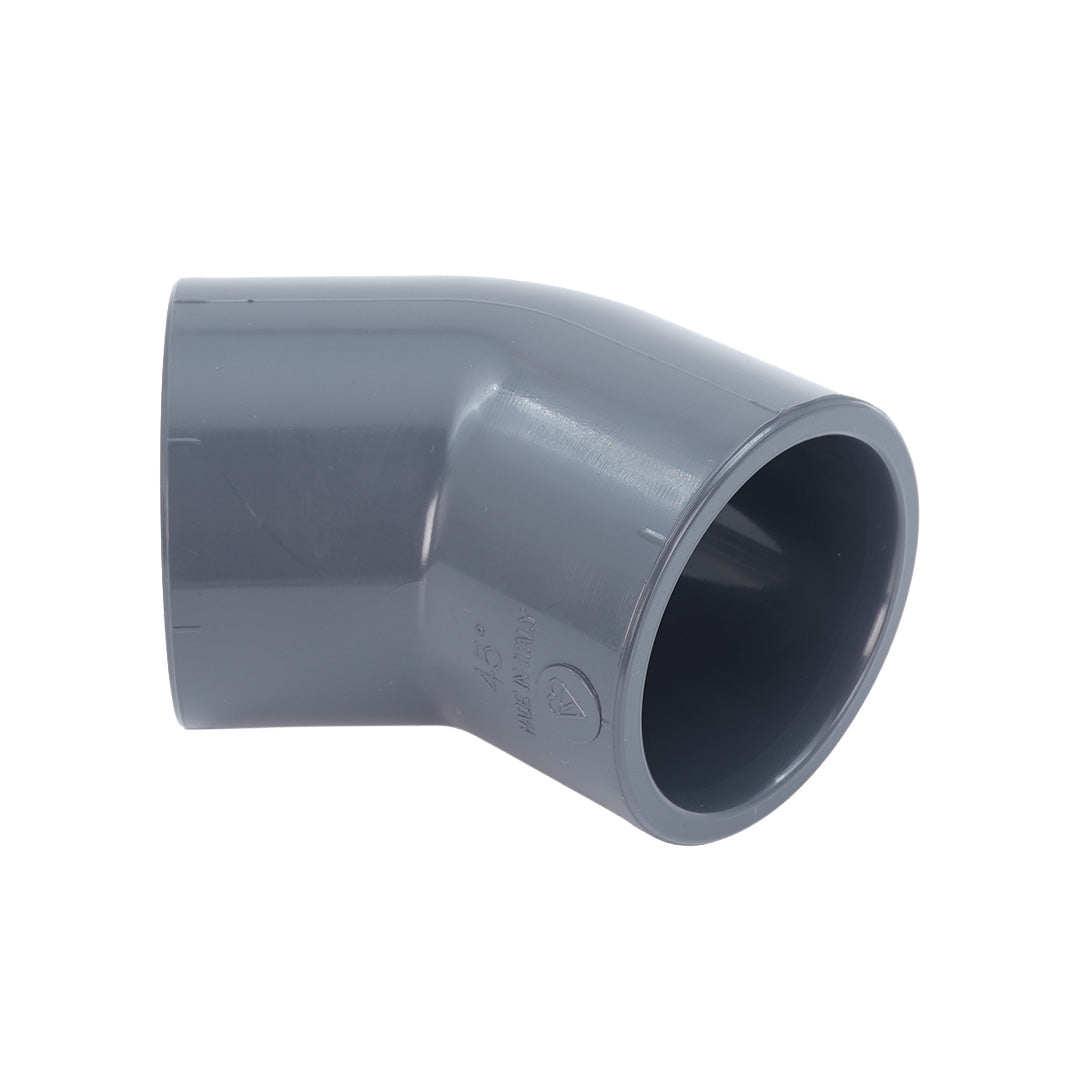

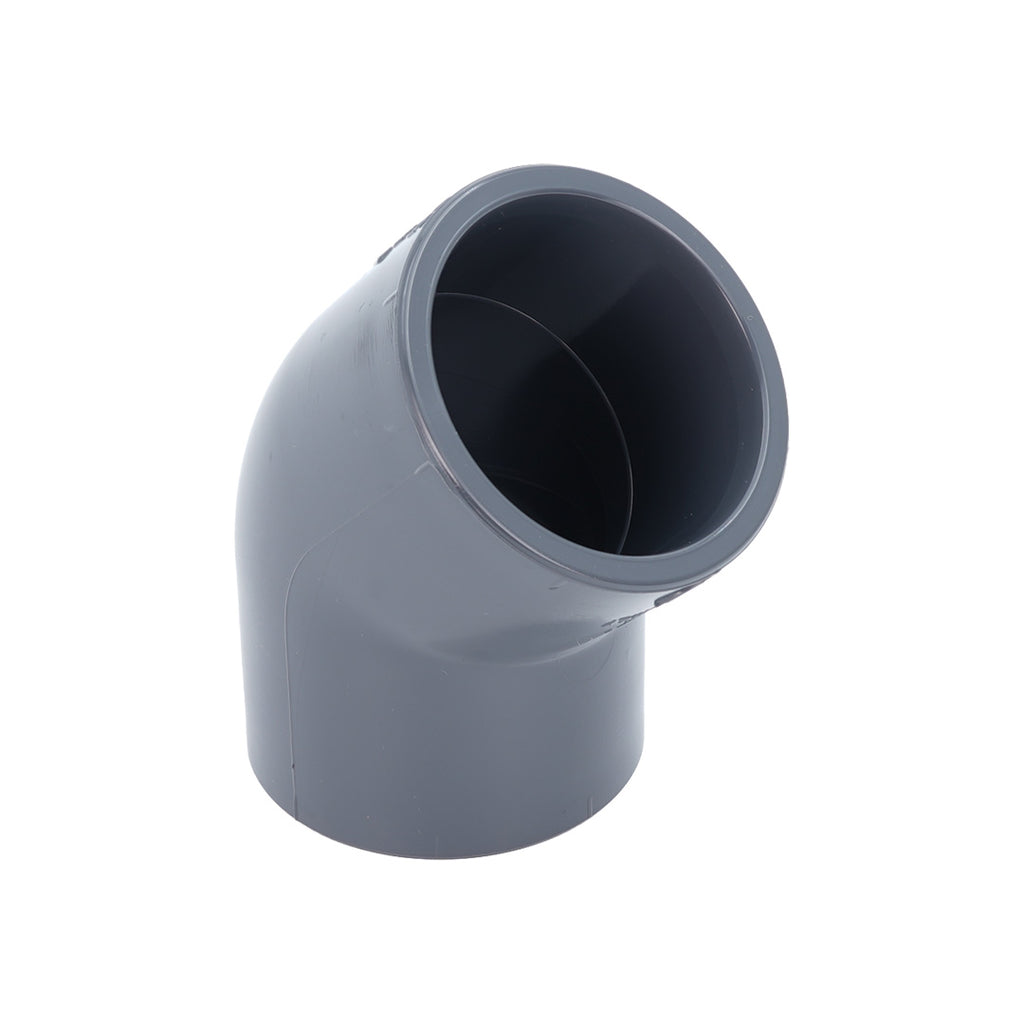

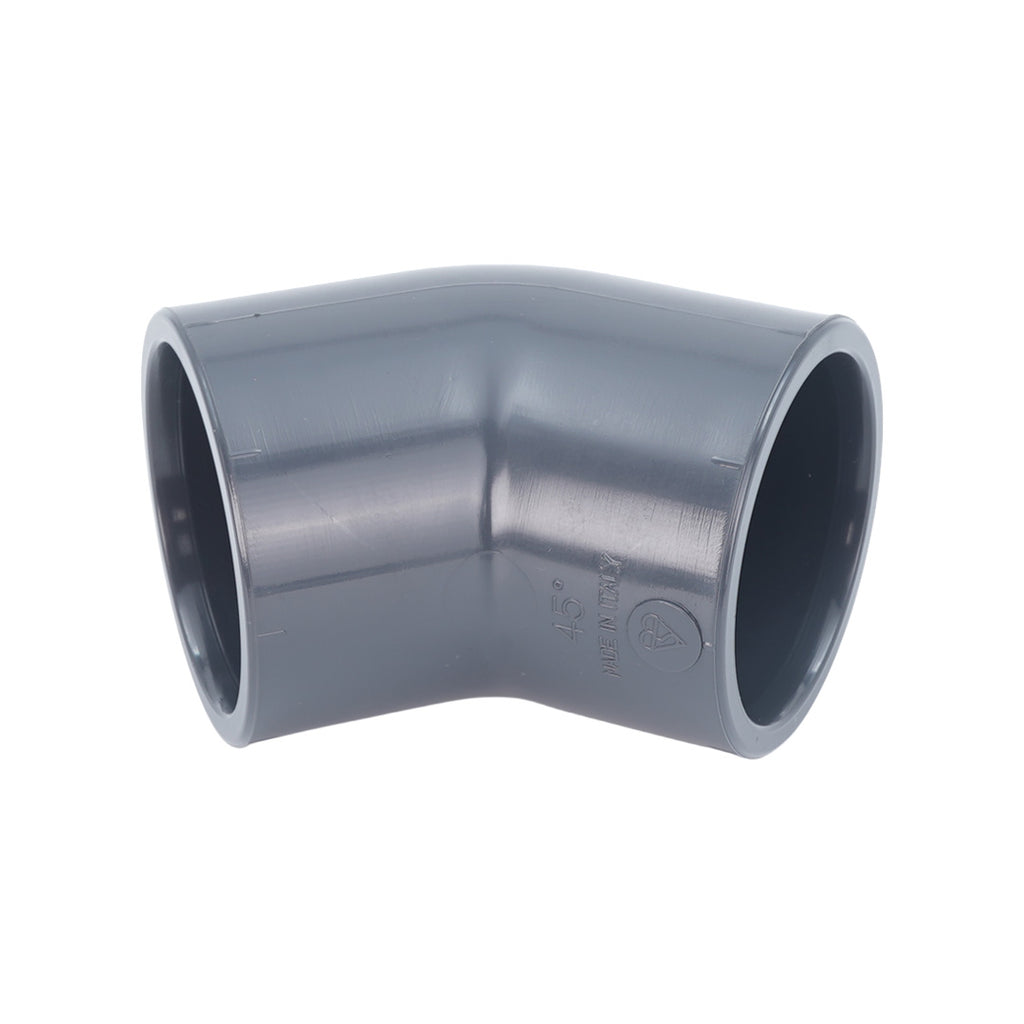

Imperial PVC 45° Elbow – Solvent Weld
The Imperial PVC 45° Elbow is designed to create a smooth 45-degree change in direction within an imperial PVC pipe system. Installed using PVC solvent cement, it forms a permanent, leak-free joint without the need for specialist tools. The shallower angle helps reduce flow restriction compared to a 90° bend, making it suitable for a wide range of pressure pipework applications.
Manufactured from durable PVC, these fittings are resistant to corrosion, scale and many chemicals, making them ideal for water distribution, irrigation, swimming pools, aquaculture and industrial process systems.
Imperial PVC Pipe Dimensions
Imperial solvent weld PVC fittings are sized by nominal bore (NB). The socket is manufactured to suit the outside diameter of the corresponding imperial pipe.
| Pipe Size | 1/2" | 3/4" | 1" | 1 1/4" | 1 1/2" | 2" | 2 1/2" | 3" | 4" |
|---|---|---|---|---|---|---|---|---|---|
| Pipe Outside Diameter (mm) | 21.4 | 26.7 | 33.6 | 42.2 | 48.3 | 60.3 | 75.2 | 88.9 | 114.3 |
BSP Thread Reference
The table below shows the approximate outside diameter of standard male BSP threads for reference when selecting compatible threaded fittings.
| Nominal BSP Size | 1/2" | 3/4" | 1" | 1 1/4" | 1 1/2" | 2" | 2 1/2" | 3" | 4" |
|---|---|---|---|---|---|---|---|---|---|
| Approx. Thread Diameter (mm) | 21.0 | 26.4 | 33.2 | 41.9 | 47.8 | 59.6 | 75.2 | 87.9 | 113.0 |
Features
- 45° elbow for imperial solvent weld PVC pipe systems
- Provides a smooth change of direction with reduced flow restriction
- Permanent solvent weld connection
- Corrosion, UV and chemical resistant PVC construction
- Suitable for pressure pipework, irrigation, water treatment and swimming pools
- Lightweight, durable and simple to install
Pressure Rating
- Maximum working pressure: 15 bar (215 psi) at 20°C.
- Pressure capability decreases as operating temperatures increase.
- Maximum recommended operating temperature: 60°C.
Installation
For a reliable joint, clean both the pipe and fitting before applying a suitable PVC solvent cement. Insert the pipe fully into the socket with a slight twisting action and allow the adhesive to cure before the system is put into service.
