Description

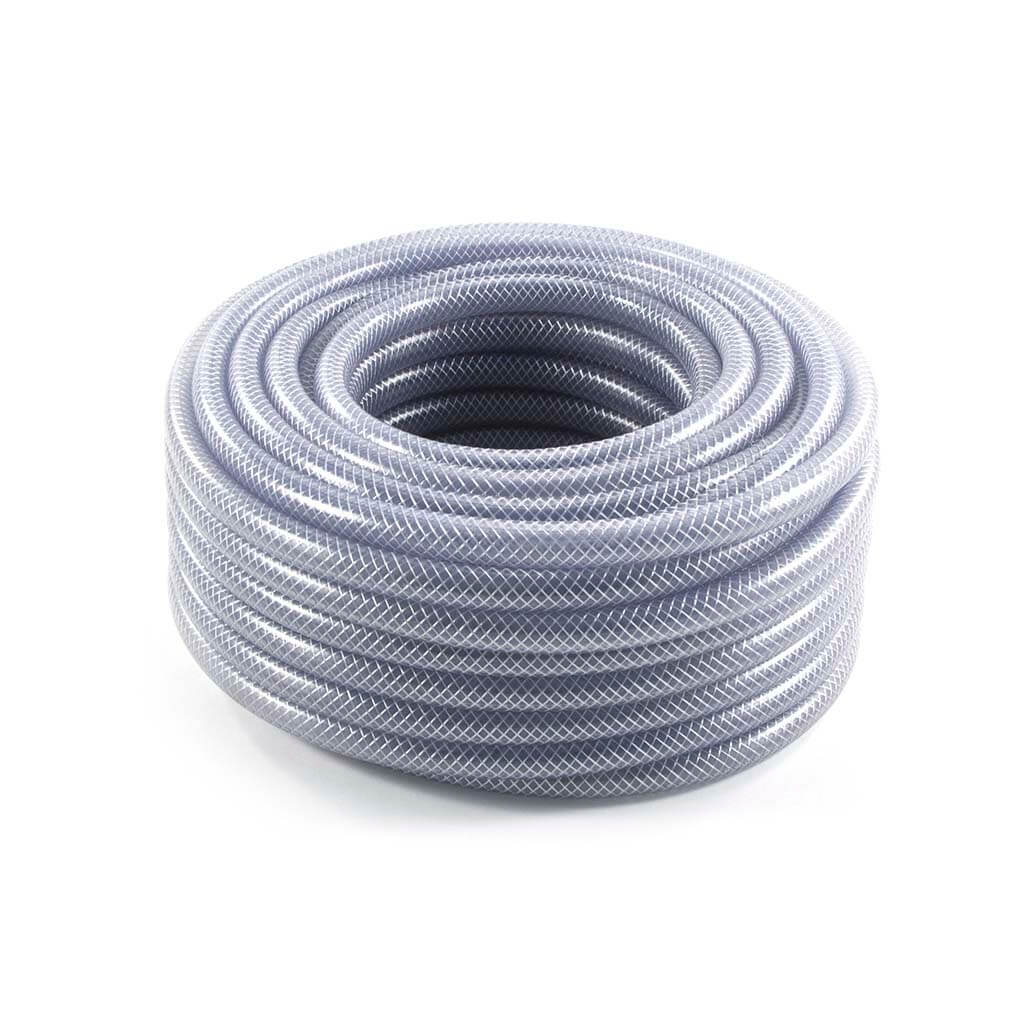

Heavy Duty PVC Braided Hose – 30m Coil
Our Heavy Duty PVC Braided Hose is a high-quality, flexible and reinforced hose designed for water transfer, irrigation, drainage and industrial applications. Supplied in convenient 30 metre coils, this transparent PVC hose combines excellent abrasion resistance with outstanding flexibility and durability.
Manufactured using a heavy-duty PVC construction with integrated braided reinforcement, the hose provides additional strength and pressure resistance while remaining lightweight and easy to handle. Its transparent design allows visual inspection of the contents, making it ideal for agricultural, commercial and general industrial use.
Key Features
- Coil Length: 30 Metres
- Material: Heavy Duty Reinforced PVC
- Construction: Braided PVC Reinforcement
- Working Pressure: Up to 16 Bar (Size Dependent)
- Temperature Range: -20°C to +65°C
- Excellent Abrasion Resistance
- Flexible & Lightweight: Easy to Handle and Install
- Transparent: Allows Visual Inspection of Fluid Flow
- Chemical Resistance: Good Resistance to Acids and Alkalis
- Silicone Free & Cadmium Free
- UV Resistance: Resistant to Deterioration from Sunlight Exposure
Heavy Duty PVC Hose – Sizes & Working Pressures
Available in a range of diameters from 1/4" to 2", with maximum working pressures between 3 Bar and 16 Bar depending on hose size. Please refer to the table below when selecting the correct hose for your application.
| Part Number | Nominal Size | I.D. × O.D. (mm) | Max. Working Pressure (Bar) |
|---|---|---|---|
| HDPVC14 | 1/4" | 6.5 × 11.5 | 16 |
| HDPVC516 | 5/16" | 8 × 13.5 | 16 |
| HDPVC38 | 3/8" | 10 × 16 | 15 |
| HDPVC12 | 1/2" | 12.5 × 18.5 | 12 |
| HDPVC58 | 5/8" | 16 × 23 | 10 |
| HDPVC34 | 3/4" | 20 × 26 | 10 |
| HDPVC1 | 1" | 25 × 33 | 10 |
| HDPVC114 | 1 1/4" | 32 × 41 | 6 |
| HDPVC112 | 1 1/2" | 40 × 49 | 6 |
| HDPVC2 | 2" | 50 × 62 | 3 |
Note: I.D. = Internal Diameter. O.D. = Outside Diameter. Maximum working pressures vary according to hose diameter.
Technical Specifications
| Specification | Details |
|---|---|
| Material | Heavy Duty Reinforced PVC |
| Coil Length | 30 Metres |
| Temperature Range | -20°C to +65°C |
| Working Pressure | 3–16 Bar (Size Dependent) |
| Colour | Transparent |
| Reinforcement | Braided Reinforcement |
| Chemical Resistance | Good Resistance to Acids & Alkalis |
| Standards | BS6066 & ISO5774 (Manufacturer Stated) |
| Food Contact | Manufacturer States Compliance with US FDA Food Grade Standards |
Typical Applications
- Agricultural Irrigation: Water distribution and irrigation systems
- Water Transfer: General-purpose water supply and pumping
- Industrial Applications: Transfer of compatible liquids and fluids
- Drainage: Water removal and drainage applications
- Commercial Use: General-purpose hose installations
- Horticulture: Water supply for nurseries and growing environments
Strong, Flexible & Reliable
Heavy Duty PVC Braided Hose offers an excellent combination of flexibility, durability and pressure resistance. The reinforced construction helps maintain hose strength during demanding applications, while its lightweight design allows for straightforward handling and installation.
With excellent abrasion resistance and a wide operating temperature range, this hose is a practical solution for agricultural, industrial and general water transfer applications.
Important: Always select the appropriate hose diameter and working pressure for your application. Pressure ratings shown are maximum working pressures supplied by the manufacturer. Confirm chemical compatibility and any required food-contact or drinking-water approvals before use.
