Description

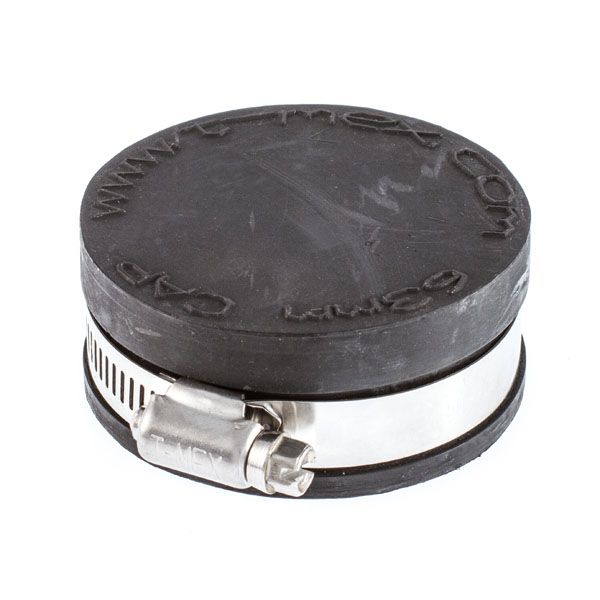

Rubber Flexible End Cap for Imperial Pipe
Our Rubber Flexible End Caps for Imperial Pipe provide a quick and reliable solution for sealing the open ends of imperial PVC drainage pipes without the need for solvent welding or specialist installation equipment.
Designed for non-pressure drainage applications, these flexible rubber pipe caps are ideal for temporarily or permanently closing off unused pipe connections during drainage repairs, maintenance, alterations and new installations.
Each flexible end cap is supplied complete with a stainless steel worm drive clip, allowing the cap to be securely fastened around the outside of the pipe. The flexible rubber construction accommodates minor variations in pipe outside diameter, making installation straightforward across compatible imperial pipe sizes.
Key Features & Benefits
- Flexible Rubber Construction – Accommodates minor variations in pipe outside diameter.
- Stainless Steel Clip Included – Supplied complete with a worm drive clip for secure installation.
- Imperial Pipe Compatibility – Designed to fit standard imperial PVC pipe outside diameters.
- Non-Pressure Applications – Suitable for gravity drainage and waste pipe systems.
- Quick & Easy Installation – No solvent cement, welding or specialist tools required.
- Removable & Reusable – Can be removed for future pipe access, subject to condition.
- Ideal for Repairs – Suitable for maintenance, alterations and new installations.
- Multiple Sizes Available – Imperial sizes from 3/4" to 4".
Important – Understanding Imperial Pipe Sizes
Imperial PVC pipe sizes are nominal sizes, not the actual outside diameter of the pipe.
For example, 2" imperial PVC pressure pipe has an outside diameter of approximately 60.3mm, not 50.8mm (2 inches).
These flexible end caps are designed to suit the actual outside diameter of imperial PVC pipe. Always check the pipe markings and measure the outside diameter before ordering.
Imperial End Cap Sizes & Fitting Ranges
Select the correct flexible end cap based on the outside diameter (OD) of the pipe. The recommended fitting range indicates the minimum and maximum pipe outside diameters accommodated by each cap.
|
Imperial Pipe Size (Inch) |
Pipe Outside Diameter (mm) |
Recommended Fitting Range (mm) |
|---|---|---|
| 3/4" | 26.7 | 25–28 |
| 1" | 33.6 | 32–35 |
| 1 1/4" | 42.2 | 39–44 |
| 1 1/2" | 48.3 | 46–51 |
| 2" | 60.3 | 59–64 |
| 3" | 88.9 | 86–91 |
| 4" | 114 | 110–116 |
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Flexible Rubber End Cap |
| Connection Type | Mechanical Clamp Connection |
| Clip | Stainless Steel Worm Drive Clip Included |
| Pipe Compatibility | Imperial PVC Pipe Outside Diameters |
| Application | Non-Pressure Drainage |
| Pressure Rating | Not Suitable for Pressurised Systems |
| Installation | Quick Mechanical Installation |
Typical Applications
- Sealing unused imperial drainage pipe ends
- Gravity drainage and waste pipe systems
- Temporary pipe closures during maintenance
- Permanent closure of unused non-pressure pipe connections
- Drainage pipe repairs and alterations
- New non-pressure drainage installations
- Providing removable access to pipe ends
Replacement Clips & Accessories
Each flexible end cap is supplied complete with a stainless steel worm drive clip. If additional or replacement clips are required, browse our range of Stainless Steel Jubilee Clips .
Important Installation Information
Not Suitable for Pressurised Systems: These rubber flexible end caps are designed exclusively for non-pressure drainage applications. They must not be used on pressurised water supply systems, pumped pressure pipelines or other applications requiring pressure-rated fittings.
Pipe Sizing: Imperial pipe sizes are nominal measurements. Always check the pipe markings and measure the actual outside diameter before selecting an end cap.
Installation: Ensure the pipe end is clean and free from damage. Position the flexible cap fully over the pipe end and tighten the stainless steel worm drive clip evenly in accordance with the manufacturer's installation instructions.
