Description

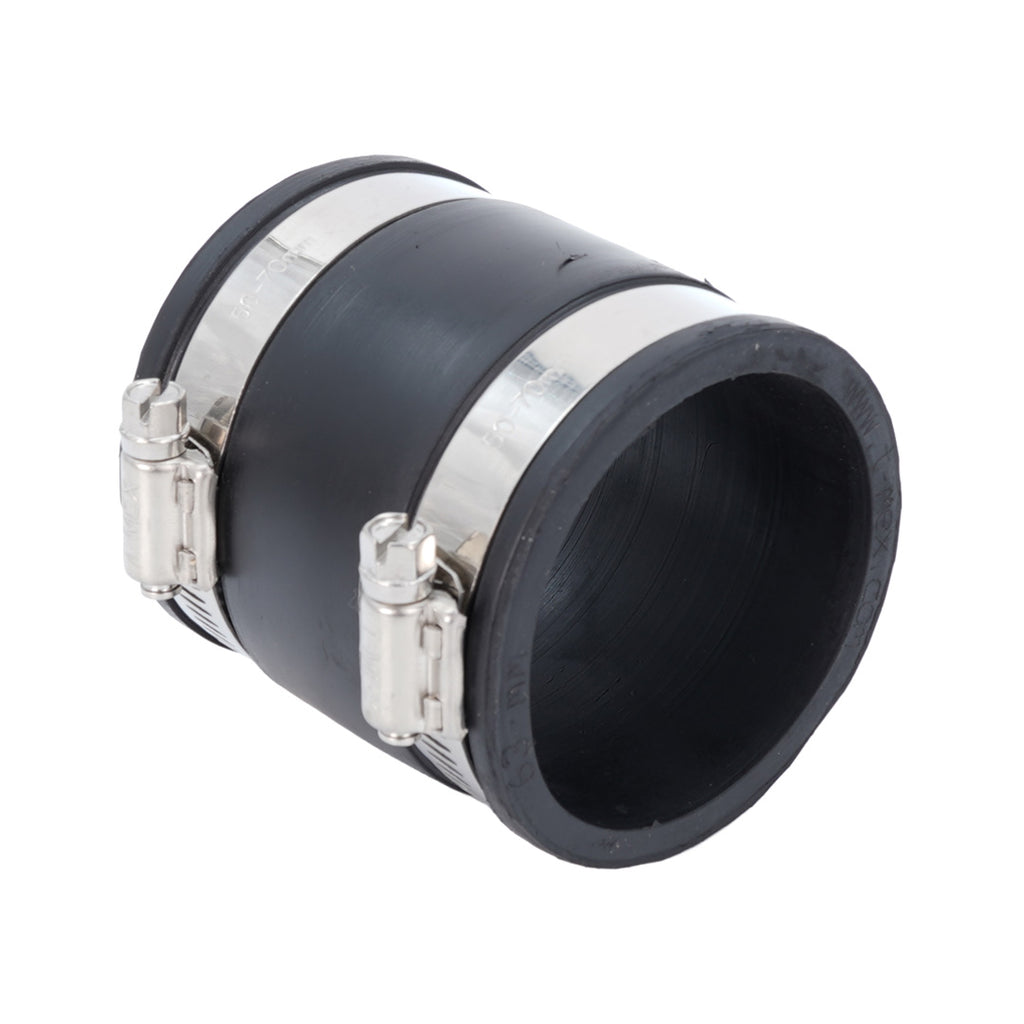

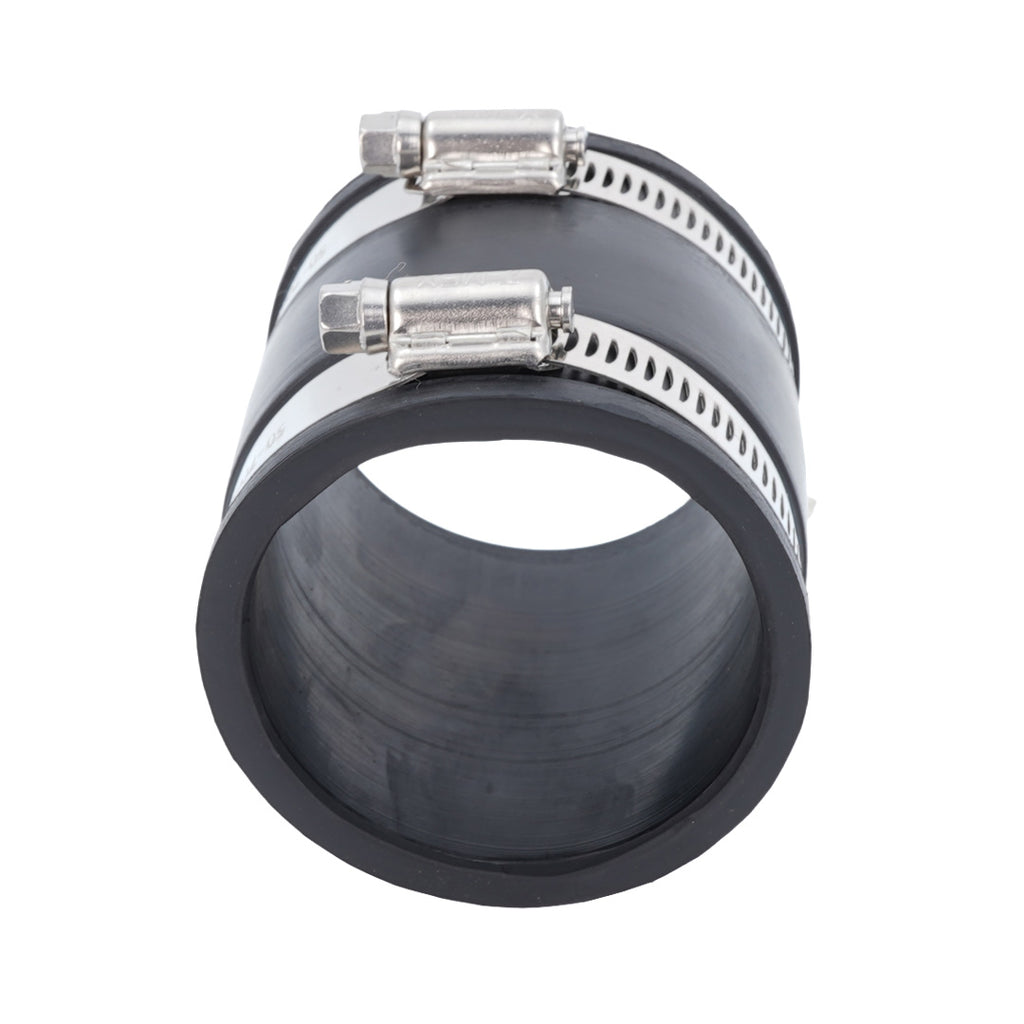

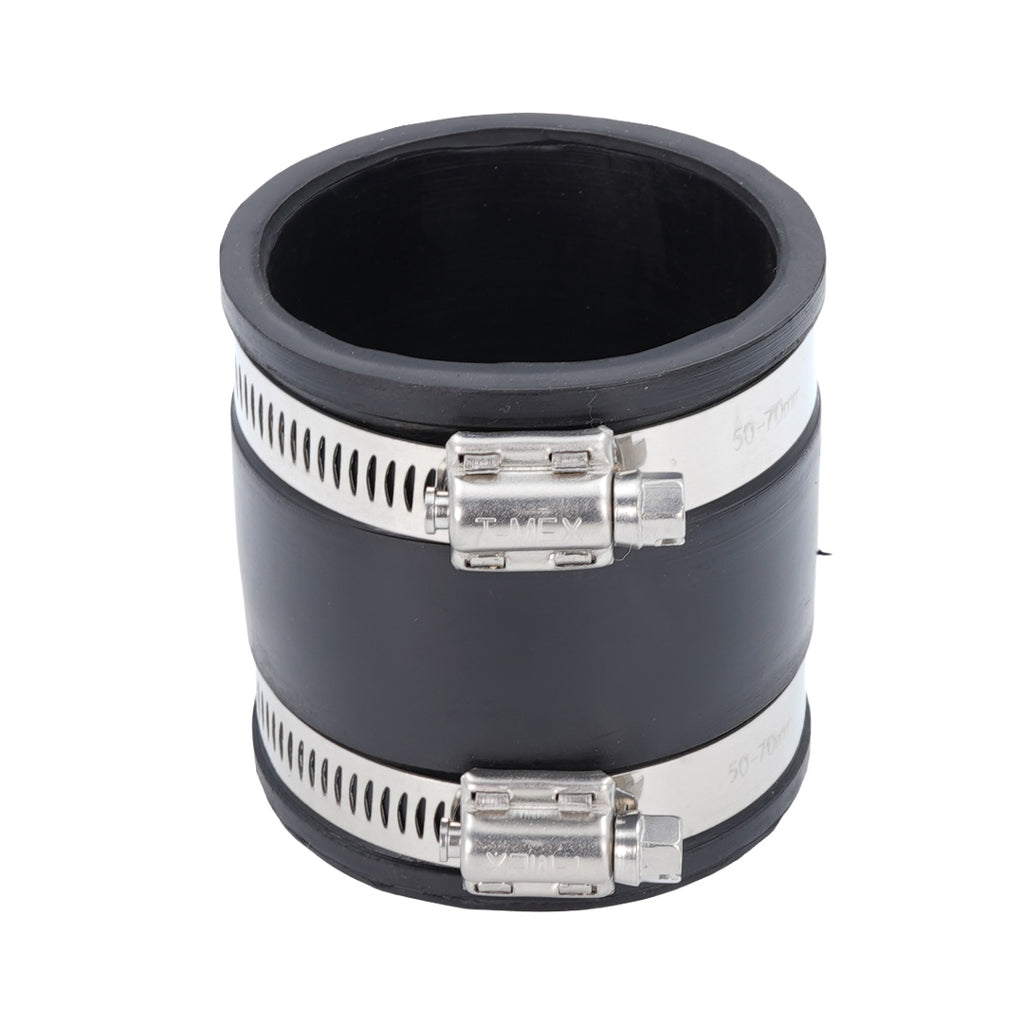

Rubber Flexible Coupling for Imperial Pipe
Our Rubber Flexible Couplings for Imperial Pipe provide a quick, reliable and convenient solution for connecting drainage pipes without the need for solvent welding or specialist installation equipment.
Designed specifically for non-pressure drainage applications, these flexible rubber pipe connectors are ideal for joining compatible imperial and metric pipe sizes. They are particularly useful for pipe repairs, alterations and new drainage installations.
Each coupling is supplied complete with stainless steel worm drive clips, providing a secure mechanical connection between pipe ends. The flexible rubber construction accommodates slight pipe misalignment and differences in outside diameter, helping simplify installation where rigid fittings may not be suitable.
Key Features & Benefits
- Flexible Rubber Construction – Accommodates slight pipe misalignment.
- Stainless Steel Clips Included – Supplied with worm drive clips for secure installation.
- Imperial & Metric Compatibility – Connects compatible imperial and metric drainage pipes.
- Non-Pressure Applications – Designed for gravity drainage and waste pipe systems.
- Quick & Easy Installation – No solvent cement, welding or specialist equipment required.
- Versatile Connection – Suitable for joining pipes with slightly different outside diameters.
- Ideal for Repairs – Perfect for maintenance, alterations and new installations.
- Multiple Sizes Available – Imperial sizes from 3/4" to 4".
Dimensions & Fitting Range
Select the correct coupling based on the outside diameter (OD) of the pipe. The fitting range indicates the minimum and maximum pipe outside diameters accommodated by each coupling.
|
Nominal Bore (Inch) |
Fitting Range (mm) |
Imperial Pipe OD (mm) |
Fitting Length (mm) |
|---|---|---|---|
| 3/4" | 25–28 | 26.7 | 60 |
| 1" | 32–35 | 33.6 | 60 |
| 1 1/4" | 39–44 | 42.2 | 75 |
| 1 1/2" | 46–51 | 48.3 | 75 |
| 2" | 59–64 | 60.3 | 75 |
| 2 1/2" | 65–75 | 75 | 110 |
| 3" | 86–91 | 88.9 | 110 |
| 4" | 110–116 | 114 | 110 |
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Flexible Rubber Pipe Coupling |
| Connection Type | Mechanical Compression |
| Clips | Stainless Steel Worm Drive Clips Included |
| Pipe Compatibility | Compatible Imperial & Metric Pipe Outside Diameters |
| Application | Non-Pressure Drainage |
| Pressure Rating | Not Rated for Pressurised Systems |
| Installation | Mechanical Clamp Connection |
Typical Applications
- Gravity drainage systems
- Waste water pipe connections
- Connecting compatible imperial and metric drainage pipes
- Drainage pipe repairs and alterations
- New non-pressure drainage installations
- Connecting pipes with slight misalignment
Replacement Clips & Accessories
Each flexible coupling is supplied complete with stainless steel worm drive clips. If additional or replacement clips are required, browse our range of Stainless Steel Jubilee Clips .
Important Installation Information
Not Suitable for Pressurised Systems: These rubber flexible couplings are designed exclusively for non-pressure drainage applications. They must not be used on pressurised water supply systems, pumped pressure pipelines or other applications requiring pressure-rated fittings.
Pipe Sizing: Always measure the actual outside diameter of the pipes before selecting a coupling. Imperial and metric pipe dimensions can differ, even when nominal sizes appear similar.
Installation: Ensure pipe ends are clean, correctly aligned and fully inserted into the coupling. Tighten the stainless steel worm drive clips evenly in accordance with the manufacturer's installation instructions.
