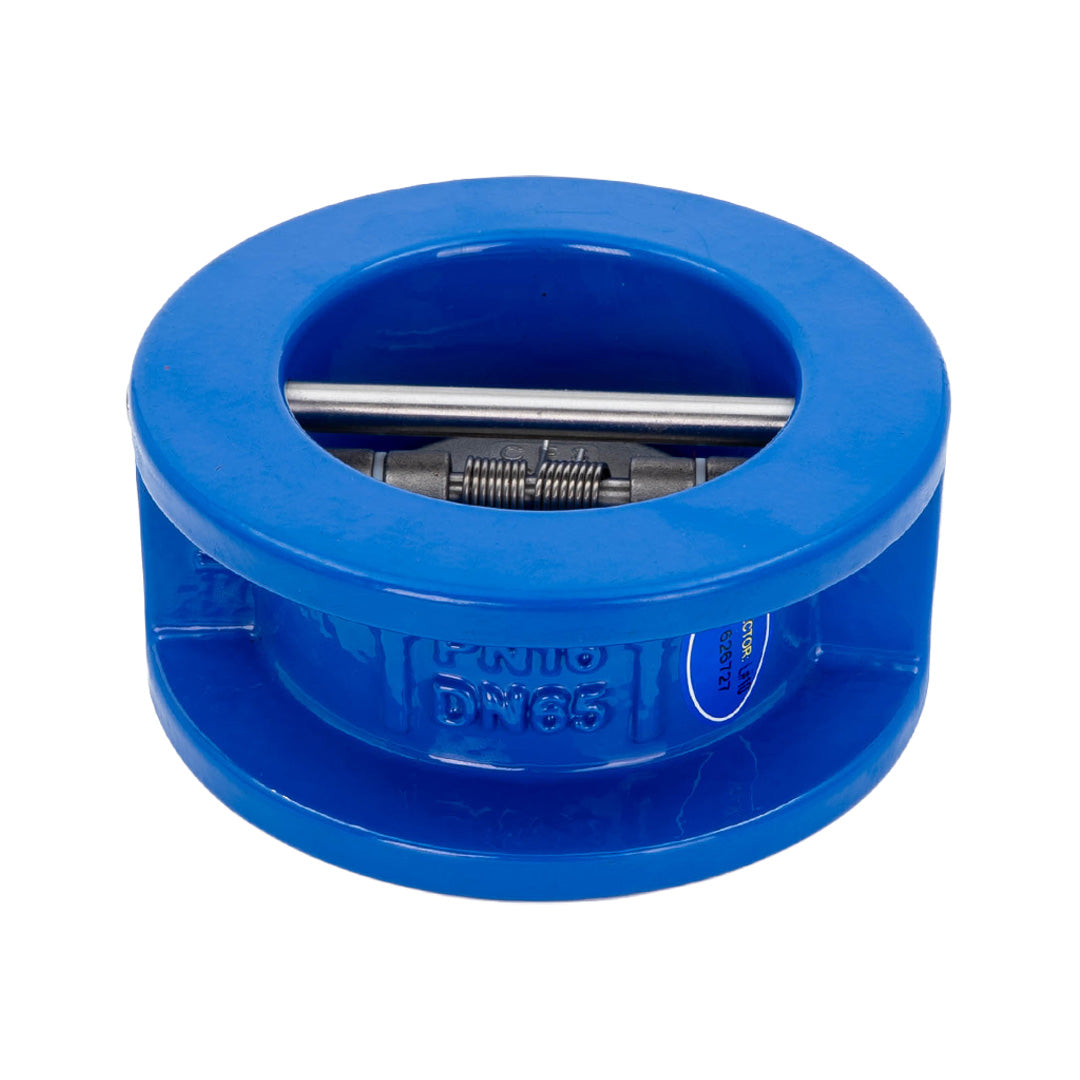

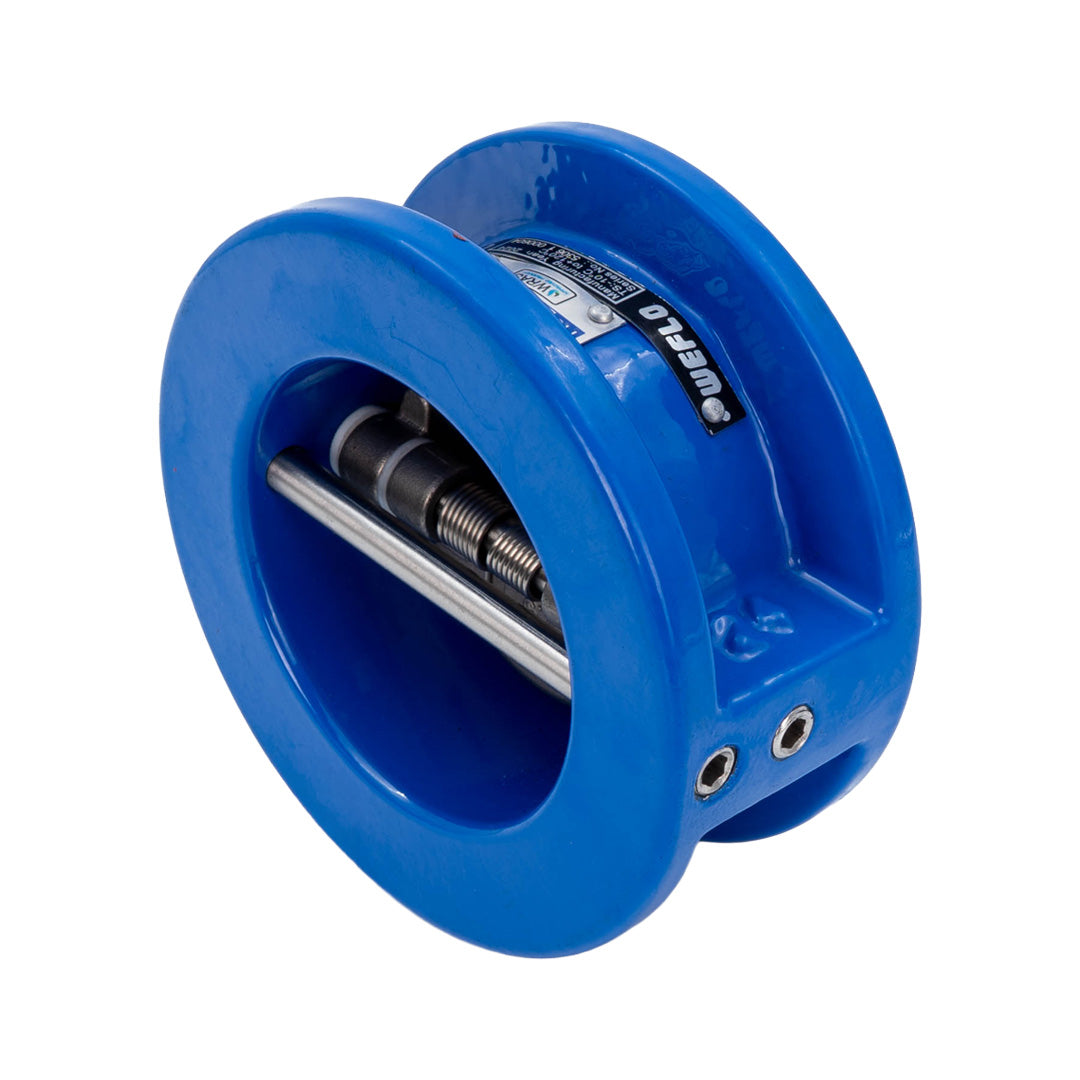

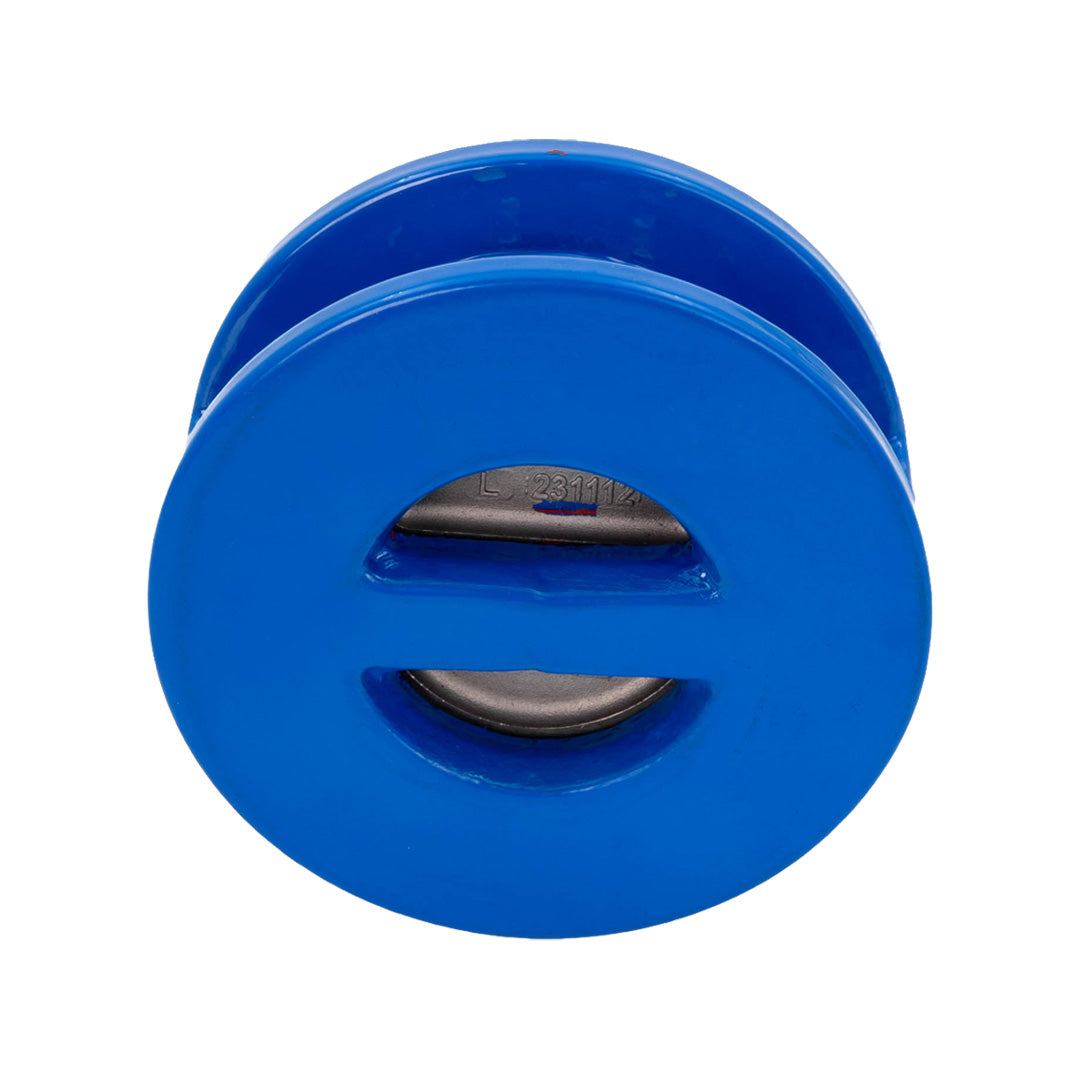

Cast Iron Dual Plate Wafer Check Valve – PN16
The Cast Iron Dual Plate Wafer Check Valve is designed to prevent reverse flow in water supply, irrigation, HVAC and industrial pipeline systems. Featuring a robust cast iron body, stainless steel discs and an EPDM seat, this non-return valve provides reliable performance in demanding applications.
Its compact wafer-style design allows installation between compatible pipeline flanges, offering a space-saving alternative to traditional swing check valves. The dual plate mechanism enables automatic opening under forward flow and closes when flow reduces or reverses, helping protect pumps, valves and other pipeline equipment.
Key Features
- Valve Type: Dual Plate Wafer Check Valve
- Body Material: Cast Iron
- Disc Material: Stainless Steel
- Seat Material: EPDM
- Maximum Working Pressure: 16 Bar (PN16)
- Operating Temperature: -10°C to +120°C
- Connection: Wafer Type – Installed Between Flanges
- Operation: Automatic Non-Return Valve
Applications
Suitable for a wide range of pipeline installations, including:
- Water distribution and supply systems
- Agricultural irrigation networks
- Pumping stations and pump discharge lines
- Heating, ventilation and air conditioning (HVAC)
- Industrial water circulation systems
- General pipeline backflow prevention
Installation & Gaskets
This PN16 Dual Plate Wafer Check Valve is designed to fit between compatible flanges, providing a compact and efficient solution for preventing backflow.
For associated flange sealing requirements, view our EPDM Flange Gaskets. Always check gasket compatibility and the valve manufacturer's installation requirements before fitting.
