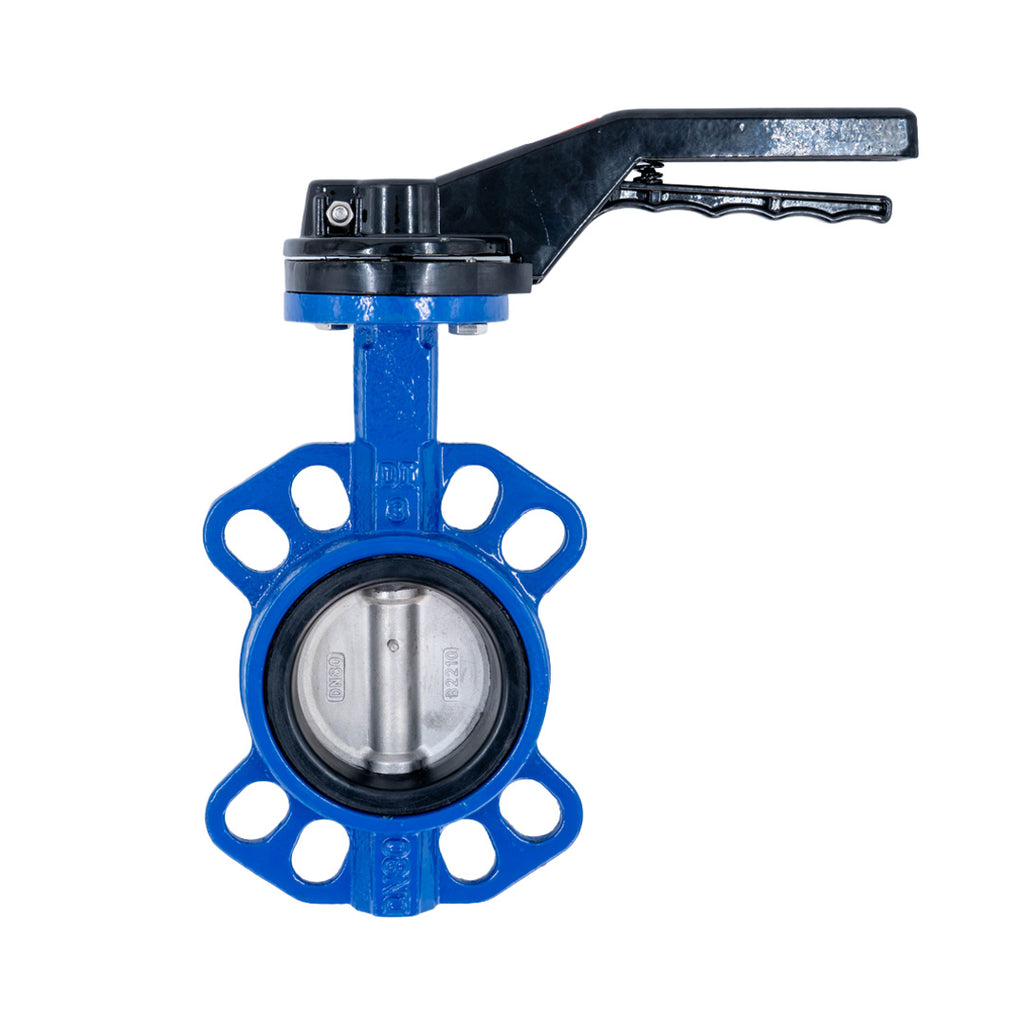

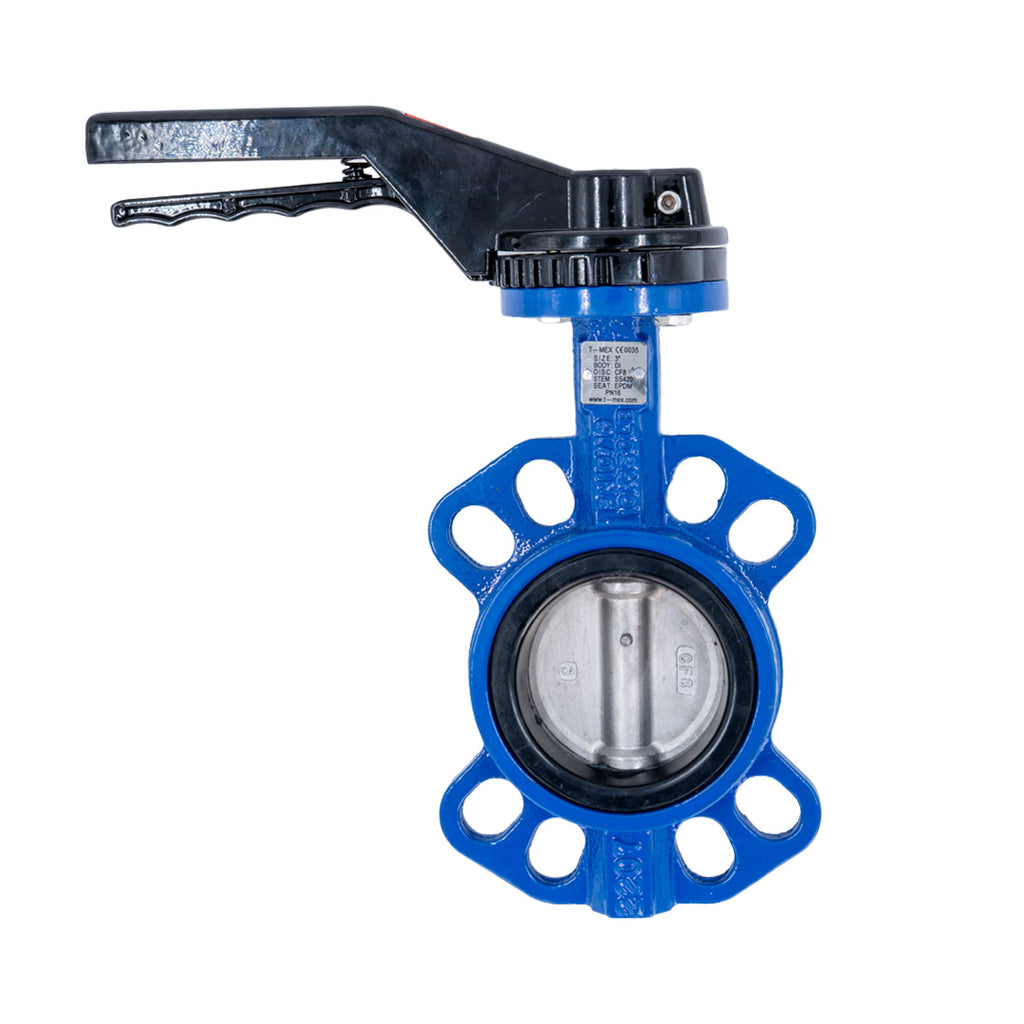

Butterfly Valve Wafer Type – Stainless Steel 316 Disc
The Wafer Type Butterfly Valve is designed for dependable flow control and isolation in water supply, irrigation and industrial pipework systems. Manufactured with a robust epoxy-coated ductile iron body, a corrosion-resistant 316 stainless steel disc and a durable EPDM liner, this valve provides reliable sealing performance and long service life.
Featuring a PN10/16 wafer-style connection, the valve is designed for installation between compatible pipe flanges. The locking lever operation provides simple quarter-turn control, allowing the valve to be opened, closed and secured in position.
Available in sizes from 2" to 14" (DN50–DN350), these butterfly valves are suitable for a wide range of commercial, agricultural and industrial applications.
Key Features
- 316 Stainless Steel Disc – Excellent corrosion resistance and durability
- EPDM Liner – Provides reliable sealing performance
- Epoxy-Coated Ductile Iron Body – Strong, durable construction with corrosion protection
- PN10/16 Flange Compatibility – Suitable for installation between compatible PN10 and PN16 flanges
- Locking Lever Operation – Simple quarter-turn operation with position locking
- Temperature Range: 10°C to +110°C
- Available Sizes: 2" to 14" (DN50–DN350)
- Compact wafer design for installation between pipe flanges
Technical Specifications
| Specification | Details |
|---|---|
| Valve Type | Wafer Butterfly Valve |
| Body Material | Epoxy-Coated Ductile Iron |
| Disc Material | Stainless Steel 316 |
| Seat / Liner | EPDM |
| Flange Compatibility | PN10 / PN16 |
| Temperature Range | 10°C to +110°C |
| Operation | Locking Lever – Quarter Turn |
| Available Sizes | 2" to 14" (DN50–DN350) |
| Installation | Wafer Type – Between Flanges |
Typical Applications
- Agricultural irrigation and water distribution systems
- Industrial water supply and process pipework
- Pumping stations and water treatment installations
- Commercial plumbing and mechanical services
- Cooling water and circulation systems
- General pipeline isolation and flow control
Installation Information
The wafer-style butterfly valve is installed between two compatible PN10 or PN16 pipe flanges and secured using suitable flange bolts. Ensure correct alignment during installation and allow sufficient clearance for the disc to rotate freely within the adjoining pipework.
The locking lever provides straightforward manual operation, allowing the valve to be positioned and secured as required. Always confirm the flange drilling pattern and installation dimensions before fitting.
Important: PN10/16 refers to flange compatibility. Confirm the valve's maximum working pressure for the selected size and operating temperature before installation.
