Description

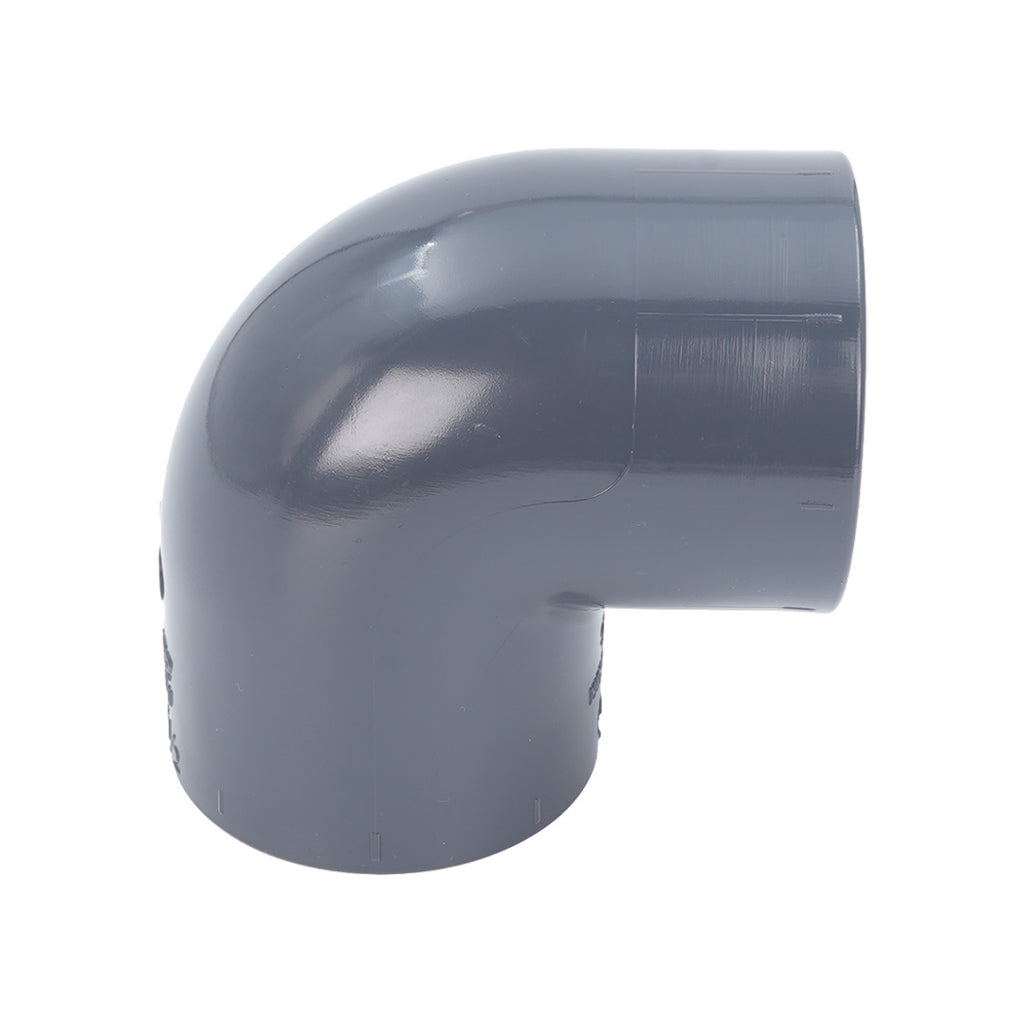

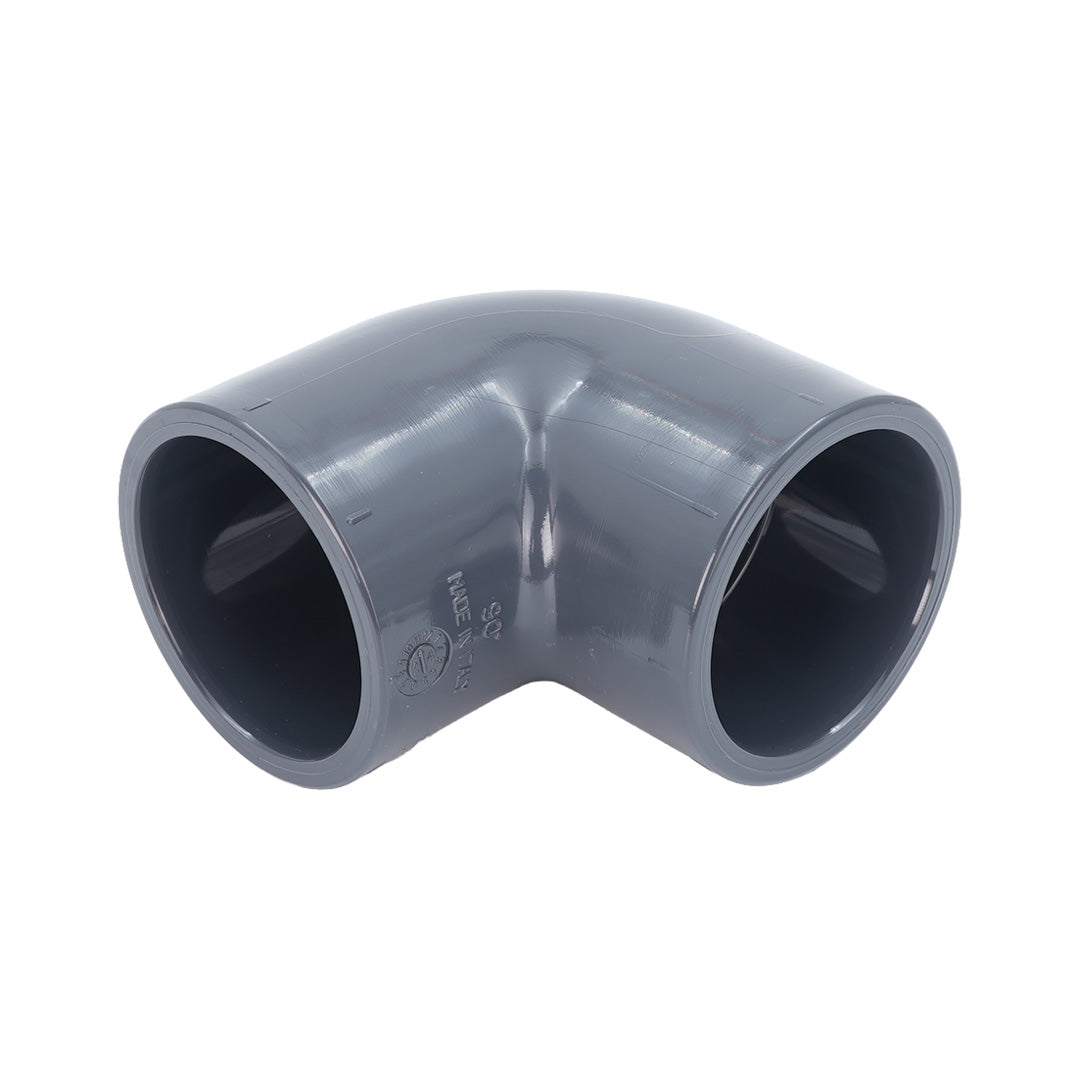

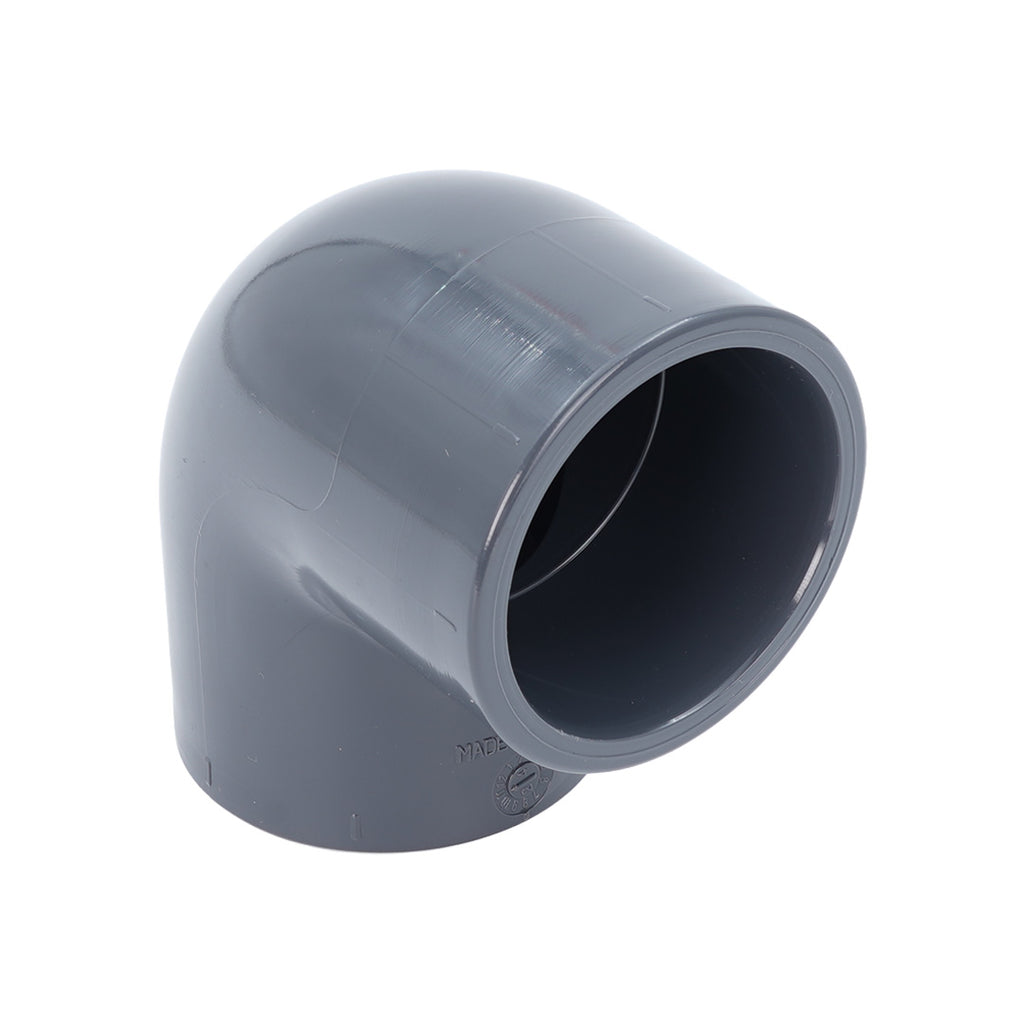

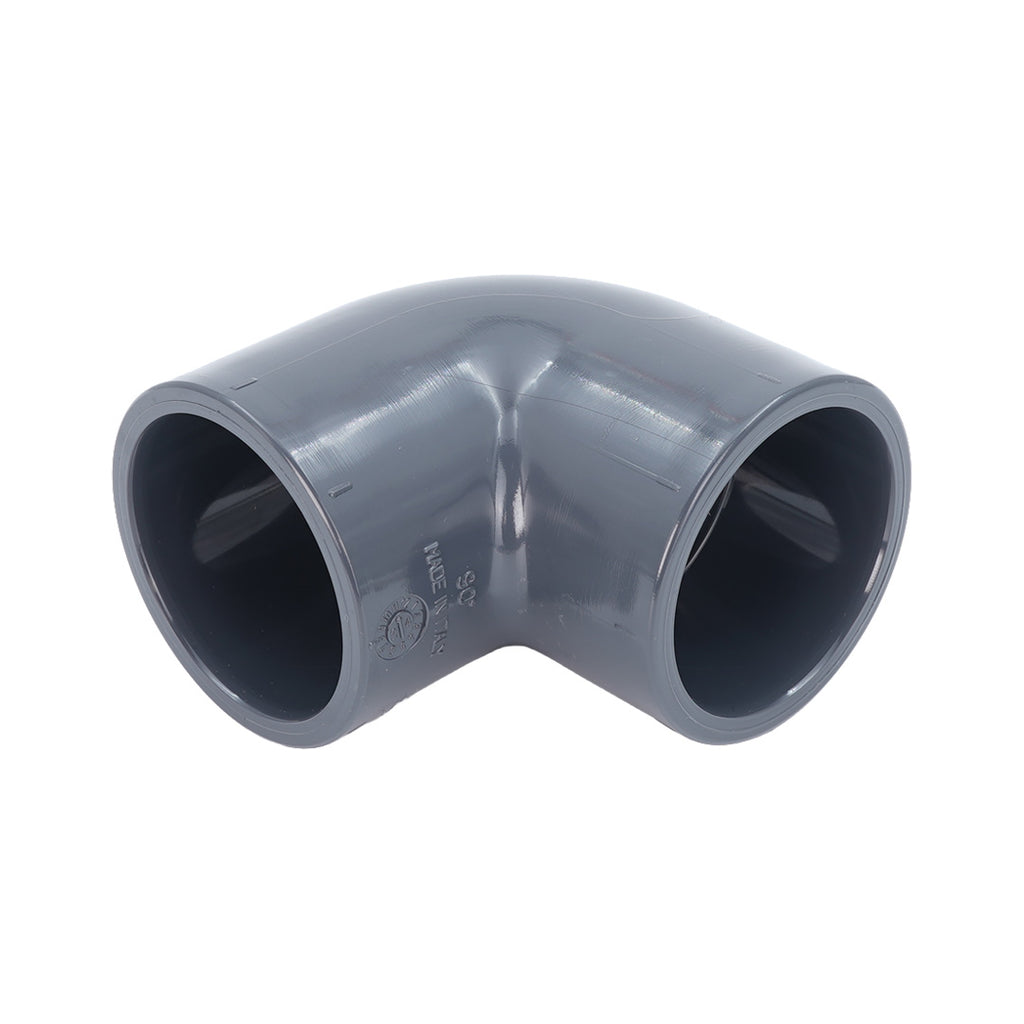

Imperial PVC 90° Elbow – Solvent Weld
The Imperial PVC 90° Elbow is designed to change the direction of an imperial PVC pipe system by 90 degrees while maintaining a strong, watertight connection. Suitable for solvent weld installations, these fittings are widely used in irrigation, water treatment, swimming pools, aquaculture and industrial process systems.
Manufactured from high-quality PVC, the fitting offers excellent resistance to corrosion, scale build-up and a wide range of chemicals. When used with a suitable PVC solvent cement, it forms a permanent joint that requires minimal maintenance throughout its service life.
Imperial Pipe Dimensions
Imperial solvent weld PVC pipe is identified by its nominal bore (NB), with the fitting socket manufactured to suit the pipe's outside diameter.
| Nominal Pipe Size | 1/2" | 3/4" | 1" | 1 1/4" | 1 1/2" | 2" | 2 1/2" | 3" | 4" |
|---|---|---|---|---|---|---|---|---|---|
| Pipe Outside Diameter (mm) | 21.4 | 26.7 | 33.6 | 42.2 | 48.3 | 60.3 | 75.2 | 88.9 | 114.3 |
Product Features
- 90° solvent weld elbow for imperial PVC pipe systems
- Produces a permanent joint when used with PVC solvent cement
- High resistance to corrosion, rust and many chemicals
- Smooth internal bore reduces pressure loss and promotes efficient flow
- Suitable for potable water, irrigation, swimming pools, aquaculture and industrial applications
- Lightweight, durable and easy to install
Performance
- Maximum working pressure: 15 bar (215 psi) at 20°C.
- Pressure ratings reduce as operating temperatures increase.
- Recommended maximum operating temperature: 60°C.
Installation Advice
For the best results, ensure both the pipe and fitting are clean and dry before applying solvent cement. Assemble immediately with a slight twisting motion to achieve full engagement, then allow the adhesive to cure fully before the system is pressurised.
