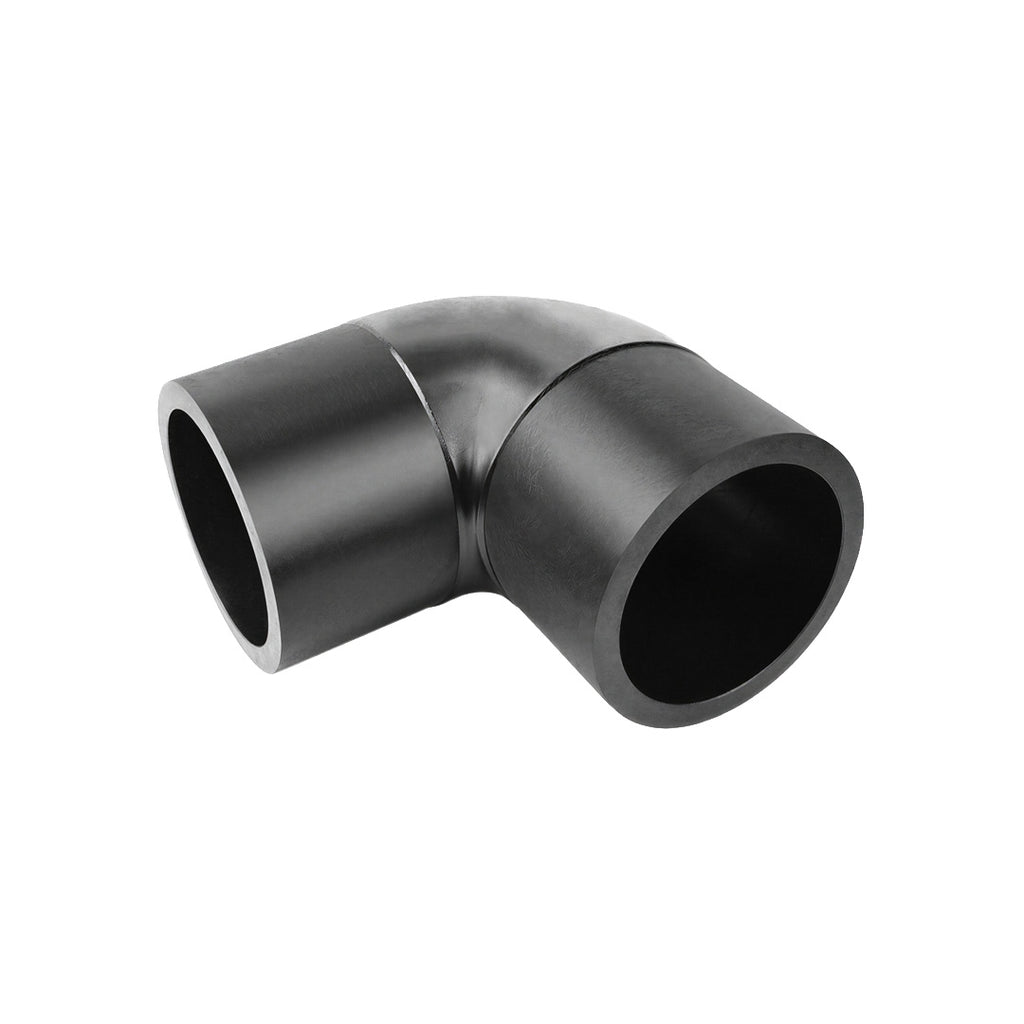

Long Spigot HDPE Elbow 90° SDR17 PE100
The Long Spigot HDPE 90° Elbow SDR17 is manufactured from high-quality PE100 polyethylene and designed to provide a reliable 90-degree change of direction in HDPE pipeline systems. Featuring extended spigot ends, this fitting is suitable for both butt fusion and electrofusion welding, providing a strong, permanent connection in pressurised polyethylene pipework.
Manufactured to an SDR17 specification with a nominal PN10 pressure rating for water applications, these HDPE elbows offer excellent resistance to corrosion, impact and environmental conditions. Ideal for agricultural irrigation, water distribution, industrial pipework and general polyethylene pipeline installations.
Key Features
- Material: PE100 High Density Polyethylene (HDPE)
- Pressure Rating: PN10 (10 Bar Water)
- SDR Rating: SDR17
- Angle: 90°
- Design: Long Spigot Elbow
- Connection: Butt Fusion or Electrofusion Welding
- Construction: Durable, lightweight and corrosion-resistant
- Applications: Water Supply, Irrigation and Industrial Pipework
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Long Spigot HDPE 90° Elbow |
| Material | PE100 Polyethylene |
| SDR Rating | SDR17 |
| Pressure Rating | PN10 - 10 Bar (Water at 20°C) |
| Elbow Angle | 90 Degrees |
| Connection Type | Butt Fusion / Electrofusion |
| Spigot Design | Long Spigot Both Ends |
| Colour | Black |
| Applications | Water Supply, Irrigation & Industrial Systems |
Installation & Compatibility
These PE100 SDR17 90° elbows are designed for installation into compatible HDPE pipe systems using butt fusion or electrofusion welding methods. The extended spigot ends provide sufficient working length for secure fusion connections, allowing a permanent 90-degree change of direction within the pipeline.
For electrofusion installations, use appropriately sized EF Couplers to connect the elbow to compatible HDPE pipework.
Explore our complete range of Electrofusion Fittings , including couplers, tees, reducers, saddles and other polyethylene pipe fittings.
Important: Always ensure the pipe and fitting SDR, pressure rating and material are compatible with the selected welding method. Follow the manufacturer's recommended fusion procedures, pipe preparation requirements and cooling times.
